Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Travel Motor Parts | Machine Model: | SK290 SK300 SK330 SK350 SK480 |
|---|---|---|---|

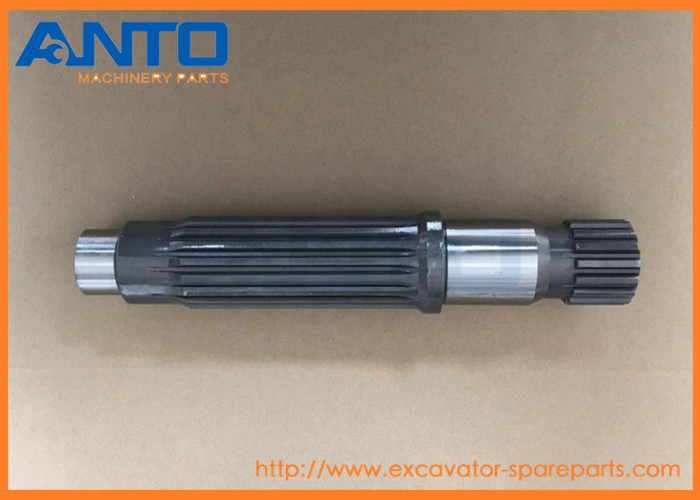

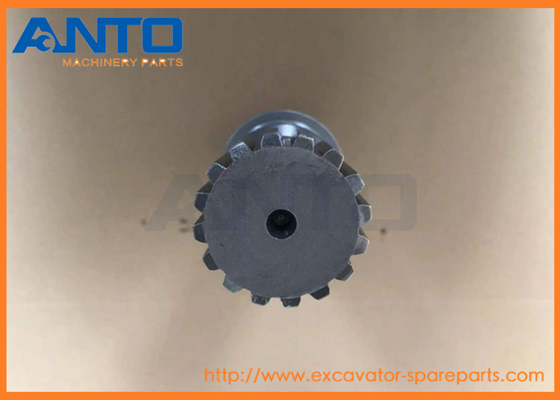

| Parts No.: | 2441U1040S9 | Parts Name: | Travel Motor Shaft |
| Warranty: | 3/6 Months | Package: | Standard Export Carton |
| High Light: | SK350-8 Excavator Travel Motor Shaft,Kobelco Excavator Travel Motor Shaft,2441U1040S9 Travel Motor Shaft |
||
| spare parts name | travel motor shaft |
| Equipment Model | SK270 SK290 SK300 SK330 SK350 SK480 |
| Parts Category | Excavator travel motor parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
HEAVY EQUIPMENT SK270LC SK290LC SK290LC-6E SK300 SK300LC SK330 SK330LC SK330LC-6E SK350-8 SK350-9 SK480LC SK480LC-6E Kobelco
| 2437U420S111 SHAFT |
| SK200LC-6, SK200LC-6ES, SK250LC, SK250NLC, SK270LC, MD240C, SK210LC, SK210LC-6E, SK220, SK220LC, SK250LC-6E, SK290LC, SK290LC-6E, SK330LC, SK330LC-6E, SK200-6, SK250, SK200-6ES |
| YN10V00013S113 SHAFT |
| SK200LC-6, SK200LC-6ES, SK210-8, SK235SR-2, SK210-9, SK210D-8, SK210DLC-8, SK210LC, SK210LC-6E, SK235SRLC-2, SK210LC-8, 200-8, SK250LC, SK250LC-6E, SK260, SK260-9, SK290LC, SK290LC-6E, SK295-8, SK295-... |
| YN03M01152P1 SHAFT |
| SK250, SK200, SK250LC, SK200LC, SK270LC, SK300, SK300LC, SK100, SK150LC, SK160LC, SK100L, SK400, SK400LC, SK120, SK220, SK120LC, SK220LC |
| 2441U952S101 SHAFT |
| SK330LC, SK300LC-2, SK300, SK300LC, SK330LC-6E, SK290LC, SK300-2, SK330 |
| LB15V00011S101 SHAFT |
| SK295-9, SK350-9, SK350-8, SK290LC-6E, SK850, SK295-8 |
| LC32W01025P1 SHAFT |
| SK350-8, SK295-9, SK295-8, SK350-9 |
| LC52D01018P1 SHAFT,85mm OD x 388mm L |
| SK350-8, SK295-9, SK295-8, SK350-9 |
| LC32W01020P1 SHAFT |
| SK350-8, SK350-9 |
| LC10V00010S111 Kobelco |
| LC10V00010S111 SHAFT |
| SK350-8, SK350-9 |
| YN03M02178P1 SHAFT |
| 140SR-3, 230SR-3, SK140SRLC, 260SR-3, SK350-9, SK485-9 |
| YN03M02210P1 SHAFT |
| 140SR-3, SK140SRLC, 260SR-3, SK350-9, SK485-9 |
| 72212082 SHAFT,90mm OD x 390mm L |
| SK350-9 |
| LQ32WU0002S001 SHAFT |
| SK260-9 |
| 4894816 SHAFT |
| SK260, SK295-8 |
| 87668093 SHAFT |
| SK260-9, SK260 |
| LQ32W01027P1 Kobelco |
| LQ32W01027P1 SHAFT, PLANETARY CAR |
| SK235SRLC-1E, SK235SR-1E, SK235SRNLC-1E, SK235SRNLC-1ES, SK235SRLC-1ES, SK235SR-1ES, SK235SRLC-2, SK235SR-2, SK485-8, SK250LC-6E |
| VAME737092 SHAFT |
| SK330LC, SK330LC-6E, SK290LC, SK290LC-6E, SK250LC-6E |
| LB64D01003P1 SHAFT |
| SK295-9, SK260, SK290LC, SK290LC-6E, SK250LC, SK295-8, SK250LC-6E |
| LB15V00011S101 Kobelco |
| LB15V00011S101 SHAFT |
| SK295-9, SK350-9, SK350-8, SK290LC-6E, SK850, SK295-8 |
| 2410T493 SHAFT |
| SK330LC, SK300LC-2, SK300, SK300LC, SK330LC-6E, SK290LC, SK290LC-6E, SK300-2, SK850, SK330 |
| VAME071558 SHAFT |
| SK220LC, SK330LC, SK330LC-6E, SK290LC, SK220, SK290LC-6E |
| LB53D00002S012 SHAFT |
| SK290LC-6E, SK290LC |
| LB53D00002S003 SHAFT |
| SK290LC-6E, SK290LC |
| 2441U952S101 SHAFT |
| SK330LC, SK300LC-2, SK300, SK300LC, SK330LC-6E, SK290LC, SK300-2, SK330 |
| Pos. | Part No | Qty | Parts name | Comments |
| . . | LB15V00003F1 | [1] | HYDRAULIC MOTOR | KOB PROPEL Superseded by part number: LB15V00003F3 |
| 1 | LB15V00003S001 | [1] | BOX | KOB |
| 2 | 2441U1030S2 | [1] | BODY | KOB COVER, REAR |
| 3 | 2441U1030S3 | [1] | BLOCK | KOB |
| 4 | NSS | [1] | NOT SOLD SEPARAT | CON RETAINER, Remarks: INCL IN REPAIR KIT |
| 5 | 2441U1040S5 | [4] | PLATE | KOB |
| 6 | 2441U1040S6 | [1] | PISTON | KOB PISTON |
| 7 | 2441U1040S7 | [5] | PLATE | KOB |
| 8 | LC15V00007S008 | [1] | PLATE | KOB |
| 9 | 2441U1040S9 | [1] | SHAFT | KOB |
| 10 | 2441U1040S10 | [1] | COUPLING JOINT | KOB |
| 11 | NSS | [1] | NOT SOLD SEPARAT | CON PLATE, Remarks: INCL IN REPAIR KIT |
| 12 | NSS | [1] | NOT SOLD SEPARAT | CON JOINT, BALL, Remarks: INCL IN REPAIR KIT |
| 13 | 2441U1040S13 | [1] | BUSHING | KOB |
| 14 | NSS | [9] | NOT SOLD SEPARAT | CON PISTON ASSY, Remarks: INCL IN REPAIR KIT |
| 15 | YN15V00003S016 | [1] | O-RING | KOB Superseded by part number: LS15V00004S052 |
| 16 | 2441U1040S16 | [1] | RING | KOB Superseded by part number: LS15V00004S053 |
| 17 | 2441U783S20 | [3] | CHECK VALVE | KOB CHECK |
| 18 | ZR26X04000 | [1] | RING | KOB Retaining -- ID 40 x OD 43.5 x Th 1.8mm |
| 19 | 2441U1040S19 | [1] | COVER | KOB RING, RETAINING |
| 20 | LC15V00007S020 | [1] | PISTON | KOB PISTON |
| 21 | LC15V00007S021 | [1] | BALL | KOB BALL |
| 22 | NSS | [2] | NOT SOLD SEPARAT | CON RETAINER, Remarks: INCL IN REPAIR KIT |
| 23 | 2441U1040S24 | [1] | GASKET | KOB PISTON |
| 24 | PR30V00010S014 | [1] | ORIFICE | KOB |
| 25 | 2436U1123S14 | [1] | ORIFICE | KOB |
| 26 | 2441U1040S27 | [1] | RING | KOB |
| 27 | 2441U783S30 | [3] | SPRING | KOB |
| 29 | 2441U1040S29 | [9] | SPRING | KOB |
| 29 | YN15V00003S030 | [14] | SPRING | KOB |
| 30 | 2441U1040S31 | [1] | ROLLER BEARING | KOB |
| 31 | 2441U1040S32 | [1] | ROLLER BEARING | KOB |
| 32 | ZS23C18050 | [10] | SCREW,Hex Socket Head, M18 x 50mm | KOB M18x2.50x50mm |
| 33 | 2441U1040S34 | [1] | SHIM | KOB |
| 34 | 2441U1040S35 | [1] | PIN | KOB |
| 35 | ZD12P00600 | [3] | O-RING | KOB ID 05.80 ± 0.15 x OD 09mm |
| 36 | ZD12P00800 | [2] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 37 | ZD12P00900 | [3] | O-RING | KOB ID 08.80 ± 0.17 x OD 12mm |
| 38 | 2436R612S13 | [1] | O-RING | KOB |
| 39 | 2441U1040S40 | [1] | O-RING | KOB O-RING |
| 40 | 2436R1923F1 | [2] | VALVE | KOB RELIEF |
| 41 | 2436R874F1 | [1] | VALVE | KOB PILOT |
| 42 | LC23V00001F1 | [1] | HYDRAULIC VALVE | KOB BRAKE, See Figure 09-005 |
| . . | 2441U1030R100 | [1] | REPAIR KIT | KOB CONSISTS OF ITEMS: 14x9 |
| . . | 2441U1040R200 | [1] | REPAIR KIT | KOB CONSISTS OF ITEMS: 4x1, 12x1 |
| . . | 2441U1030R200 | [1] | REPAIR KIT | KOB CONSISTS OF ITEMS: 11x1, 20x1, 21x1, 22x2 |
Hydraulic pumps and motors are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
