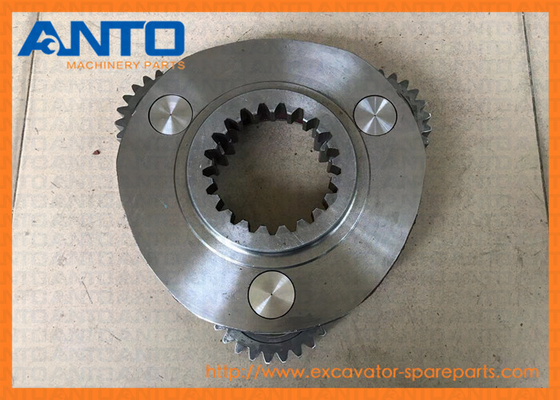

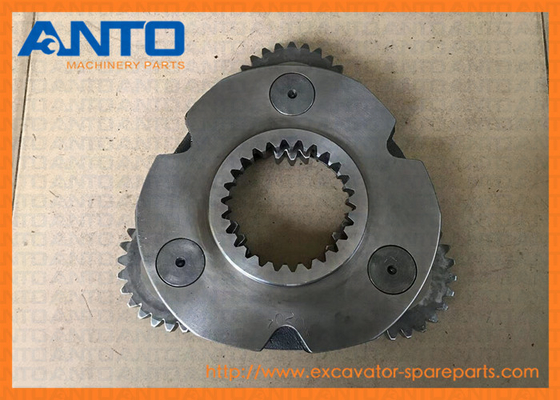

XKAQ-00197 XKAQ00197 XKAQ-00400 XKAQ00400 Planetary Carrier Assy For Hyundai R320-7

XKAQ-00197 XKAQ00197 XKAQ-00400 XKAQ00400 Planetary Carrier Assy For Hyundai R320-7
XKAQ-00197 XKAQ00197 XKAQ-00400 XKAQ00400 Planetary Carrier Assy For Hyundai R320-7

Large Image :  XKAQ-00197 XKAQ00197 XKAQ-00400 XKAQ00400 Planetary Carrier Assy For Hyundai R320-7

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: R320-7
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Parts No.: XKAQ-00197 XKAQ-00400 Excavator Model: R290-7 R05-7 R320-7
Category: HYUNDAI Excavator Travel Reduction Gear Packing: Wooden Box
Warranty: 6 Months Availability: Stock For Soon Delivery
High Light:

XKAQ00400 Planetary Carrier Assy

,

R320-7 Planetary Carrier Assy

,

XKAQ00197 Planetary Carrier Assy



  • XKAQ-00197 XKAQ00197 XKAQ-00400 XKAQ00400 Planetary Carrier Assy For HYUNDAI R320-7







  • Spec Sheet
Product name Planetary carrier assy no.1
Part number XKAQ-00197 XKAQ-00400
Model R290-7 R305-7 R320-7
Category group HYUNDAI Excavator travel reduction gear
MOQ 1 PCS
Warranty 6 months
Payment term T/T, Western Union, PAYPAL
Delivery time 1-3 days after receiving the payment
Packing As request or standard packing
Means of transport By sea/air, DHL FEDEX UPS TNT EMS




  • Application

7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R305LC7 R320LC7 R320LC7A Hyundai







  • More carrier for HYUNDAI machine

XKAQ-00485 CARRIER-NO.2
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAQ-00495 CARRIER ASSY-NO.1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAQ-00787 CARRIER-NO.1
R250LC7, R250LC7A

39Q8-42190 CARRIER 2
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42270 CARRIER 1
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42180 CARRIER ASST KIT 1
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42260 CARRIER ASST KIT 2
HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

XKAQ-00965 CARRIER 3 ASSY
R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00966 CARRIER 3
R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH

39Q8-12201 CARRIER NO.2
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12281 CARRIER NO.1
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

39Q8-12190 CARRIER ASSY NO.2
HX300L, HX330L, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH

XKAQ-00397 CARRIER-NO.2
R250LC7, R250LC7A, R250LC9, R290LC7, R290LC7A, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R320LC9, RD340LC-7

XKAQ-00189 CARRIER-NO.2
R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A

XKAQ-00399 CARRIER ASSY-NO.2
R250LC7, R250LC7A, R250LC9, R290LC7, R290LC7A, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R320LC9, RD340LC-7

XKAQ-00188 CARRIER ASSY-NO.2
R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A

XKAQ-00396 CARRIER-NO.3
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340...

XKAQ-00180 CARRIER-NO.3
R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A

XKAQ-00398 CARRIER ASSY-NO.3
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340...

XKAQ-00179 CARRIER ASSY-NO.3
R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A

XJCK-00128 CARRIER
R250LC7, R290LC7, R290LC9, R305LC7, R320LC7

XJCK-00146 CARRIER 1
R250LC7, R290LC7, R290LC9, R305LC7

XKAQ-00126 CARRIER 1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAQ-00121 CARRIER 2
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAQ-00400 CARRIER ASSY-NO.1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340...

XKAQ-00198 CARRIER-NO.1
R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC...

XKAH-01421 CARRIER ASSY-NO.1
R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAH-01285 CARRIER NO1.
R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAH-01422 CARRIER ASSY-NO.2
R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAH-01282 CARRIER NO2.
R250LC9, R250LC9A, R260LC9S, RB260LC9S

XJDK-00116 CARRIER 1 KIT
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9

XJDK-00117 CARRIER 2 KIT
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9

XJDK-00054 CARRIER 2 SUB ASSY
R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9

XJDH-01189 CARRIER ROLLER ASSY
R28-7, R35-7, R36N-7

XKAQ-00016 CARRIER
R290LC7, R290LC7A, R290LC7H, R300LC7, R305LC7, R320LC7, R320LC7A

XKAQ-00429 CARRIER ASSY-2
R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7,





  • catalog parts list diagram



Pos. Part No Qty Parts name Comments
*-2. 31N8-40070 [1] T/REDUCTION GEAR
*-2. 31N8-40070BG [1] T/REDUCTION GEAR
*-2. 31N8-40071BG [1] T/REDUCTION GEAR
2 XKAQ-00173 [1] SEAL-FLOATING
3 XKAQ-00174 [1] HOUSING
4 XKAQ-00175 [2] BEARING-ANGULAR
4 XKAQ-00175-AS [2] BEARING-ANGULAR FOR AS ONLY
5 XKAQ-00176 [1] SHIM STD
5 XKAQ-00992 [1] SHIM 0.5T
5 XKAQ-00993 [1] SHIM 0.9T
5 XKAQ-00994 [1] SHIM 1.0T
5 XKAQ-00995 [1] SHIM 1.2T
6 XKAQ-00177 [1] RETAINER
7 XKAQ-00178 [17] BOLT-WRENCH
8 XKAQ-00179 [1] CARRIER ASSY-NO.3
8 XKAQ-00398 [1] CARRIER 3 ASSY
8-1. XKAQ-00180 [1] CARRIER-NO.3
8-1. XKAQ-00396 [1] CARRIER 3
8-2. XKAQ-00181 [4] GEAR-PLANETARY NO.3
8-2. XKAQ-00389 [4] GEAR 3-PLANETARY
8-3. XKAQ-00182 [72] NEEDLE-NO.3
8-3. XKAQ-00390 [72] NEEDLE 3
8-4. XKAQ-00183 [8] WASHER-THRUST NO.3
8-4. XKAQ-00391 [8] WASHER 3-THRUST
8-5. XKAQ-00184 [4] PIN 3
8-6. XKAQ-00185 [4] PIN 3-SPRING
8-7. XKAQ-00186 [1] GEAR 3-SUN
8-8. XKAQ-00187 [1] RING 3-SNAP
9 XKAQ-00188 [1] CARRIER ASSY-NO.2
9 XKAQ-00399 [1] CARRIER ASSY 2
9-1. XKAQ-00189 [1] CARRIER-NO.2
9-1. XKAQ-00397 [1] CARRIER 2
9-2. XKAQ-00190 [3] GEAR-PLANETARY NO.2
9-2. XKAQ-00392 [3] GEAR 2-PLANETERY
9-3. XKAQ-00191 [45] NEEDLE-NO.2
9-3. XKAQ-00393 [45] NEEDLE 2
9-4. XKAQ-00192 [6] WASHER-THRUST NO.2
9-4. XKAQ-00394 [6] WASHER 2-THRUST
9-5. XKAQ-00193 [3] PIN 2
9-6. XKAQ-00194 [6] PIN 2-SPRING
9-7. XKAQ-00195 [1] GEAR 2-SUN
9-8. XKAQ-00196 [1] RING 2-SNAP
10 XKAQ-00197 [1] CARRIER ASSY-NO.1
10 XKAQ-00400 [1] CARRIER 1 ASSY
10-1. XKAQ-00198 [1] CARRIER 1
10-2. XKAQ-00199 [3] GEAR 1-PLANETARY
10-3. XKAQ-00200 [3] BEARING-NEEDLE
10-4. XKAQ-00201 [6] WASHER-THRUST NO.1
10-4. XKAQ-00395 [6] WASHER 1-THRUST
10-5. XKAQ-00202 [3] PIN 1
11 XKAQ-00203 [1] GEAR 1-SUN
12 XKAQ-00204 [3] PLUG
13 XKAQ-00205 [4] PIN-LOCK
14 XKAQ-00206 [1] GEAR-RING
15 XKAQ-00207 [24] BOLT-WRENCH
16 XKAQ-00208 [1] RING-THRUST
17 XKAQ-00209 [1] COVER
18 XKAQ-00210 [AR] RING 2-THRUST
19 XKAQ-00211 [16] BOLT-WRENCH
20 XKAQ-00212 [1] MOTOR-RING
21 XKAQ-00213 [1] RING 3-THRUST
22 XKAQ-00214 [1] PAD
23 XKAQ-00215 [1] COUPLING
N. @ [1] NOT SUPPLIED PARTS

XKAQ-00197 XKAQ00197 XKAQ-00400 XKAQ00400 Planetary Carrier Assy For Hyundai R320-7 0





  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.



  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB





  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
