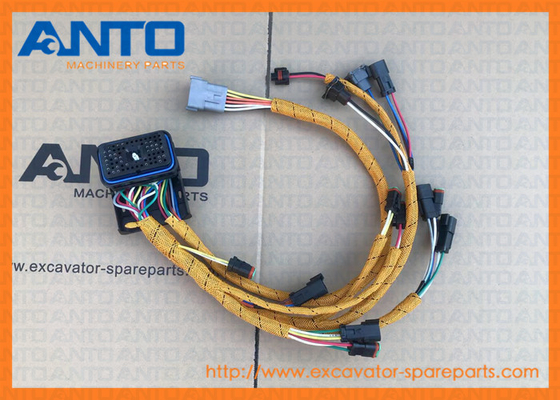

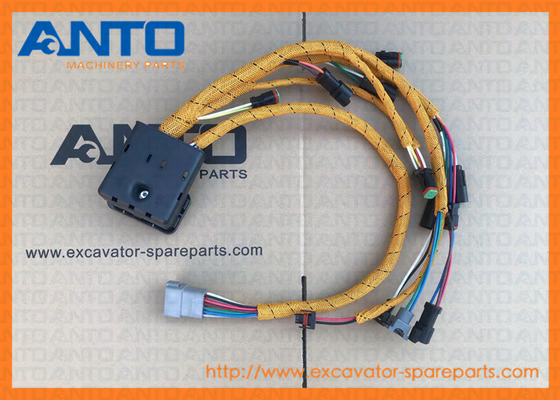

195-7336 1957336 325C 3126B Engine Wiring Harness For Excavator Engine Parts

• 195-7336 1957336 325C 3126B Engine Wiring Harness For Excavator Engine Parts

• Specification

• Applied DOOSAN MODELS

EXCAVATOR 322C 322C FM 325C 325C FM
GEN SET ENGINE 3126B
INDUSTRIAL ENGINE
INTEGRATED TOOLCARRIER IT38G II IT62G II
LOGGER 322C
MOBILE HYD POWER UNIT 325C
MOTOR GRADER 120H 135H
PIPELAYER 561N
PUMPER SPP101
TRACK LOADER 953C 963C
TRACK-TYPE TRACTOR D5N D6N
WHEEL HARVESTER 570B 580B
WHEEL LOADER 938G II 950G II 962G II
WHEELED EXCAVATOR M325C MH

• More harness for machines

1212844 HARNESS ASSEMBLY-CRANK
561N, 572R II, 583T, 587T, 953C, 963C, 973C, D10R, D10T, D11N, D11R, D5N, D6K2, D6K2 LGP, D6N, D6N LGP, D6N OEM, D6R, D6R II, D6R III, D6R STD, D6T, D7E, D7R II, D7R XR, D8R, D8R II, D8T, D9R, D9T, PL...

1210198
1210198 HARNESS AS-TRANSMISSION
D5M, D6M, D6N

2118002
2118002 HARNESS AS-WINDOW WIPER
320C, 322C, 325C, 330C, 330C L

2510554 HARNESS AS
325C

2595231 HARNESS AS
325C

2595232 HARNESS AS
325C

2595233 HARNESS AS
325C

2595284 HARNESS AS
325C

2595179 HARNESS AS
325C

2595178 HARNESS AS
325C

2595181 HARNESS AS
325C

2595264 HARNESS AS
325C

3006442 HARNESS AS-CHASSIS
938H, IT38H

1741436 HARNESS AS-PANEL
3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C

7C2114 HARNESS AS-WIRING
3406B, 3406C

3664151 HARNESS AS-FRONT
AD55

4348824 HARNESS AS-WIRING
320D2

2391481 HARNESS AS-ENGINE
3508B, 3508C, 3512B, 3512C, 3516B, 3516C

4307601 HARNESS AS-CAB
256C, 262C, 272C, 277C, 277C2, 279C, 287C, 289C, 297C, 299C

4214206 HARNESS AS-SENSOR
236D, 242D, 246D, 257D, 259D, 262D, 272D, 272D XHP, 277D, 279D, 287D, 289D, 299D, 299D XHP

8U1513 HARNESS GP
214B, 224B

3600185 HARNESS AS-FRONT CHASSIS
966M, 966M XE, 972M, 972M XE

3418076 HARNESS AS-PANEL
3508B, 3512, 3512B, 3512C, 3516B, 3516C

3465904 HARNESS AS-SENSOR
12M 2, 12M 3, 12M 3 AWD, 140M 2, 140M 3, 140M

• catalog PARTS DRAWING

Pos. Part No Qty Parts name Comments

126-1774 [1] COVER-CONNECTOR

155-2260 [1] KIT-CONNECTING PLUG (3-PIN)

155-2270 [1] KIT-CONNECTING PLUG (2-PIN)

(EACH INCLUDES PLUG AS & WEDGE)

102-8802 [3] KIT-RECEPTACLE (2-PIN)

102-8803 [4] KIT-RECEPTACLE (3-PIN)

(EACH INCLUDES RECEPTACLE, WEDGE AS, & INTERFACE SEALS)

9X-3401 [26] PIN-CONNECTOR (16-GA TO 18-GA)

-OR-

126-1767 [26] PIN-CONNECTOR (14-GA TO 16-GA)

100-3320 [1] PLUG AS-CONNECTOR (2-PIN)

126-5011 [1] SEAL-CONNECTOR

111-2416 [1] PLUG AS-CONNECTOR (2-PIN)

126-5011 [1] SEAL-CONNECTOR

160-7690 [1] PLUG AS-CONNECTOR (70-PIN)

159-9322 [1] SEAL-O-RING

140-7339 [1] PLUG-CONNECTOR

8T-8737 [44] PLUG-SEAL

123-1200 [1] SEAL-CABLE (CABLE)

123-1199 [1] SEAL-CONNECTOR

114-8843 E SLEEVE-PLASTIC (220-CM)

123-1198 [2] SOCKET-TERMINAL

3S-2093 [2] STRAP-CABLE

305-5362 [4] TERMINAL AS (18-GA)

125-7874 E TUBE-HEAT SHRINK (5.72-MM DIA)(27-CM)

125-7875 E TUBE-HEAT SHRINK (7.44-MM DIA)(17-CM)

194-5226 [43] WIRE AS (16-GA)

-OR-

194-5227 [43] WIRE AS (14-GA)

• We could supply the following spare parts.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. high quality products with high technology

2. competitive price for negotiation

3. standard exported package

4. fast delivery

5. humanistic service

6. we have our own excavator filter factory

• Packing and Delivery

Packing Details :

1. According to orders , pack the spare parts one by one by oil paper ;

2. Put them into small carton boxes one by one ;

3. Put the packed small carton boxes into bigger carton boxes one by one ;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea .

5. Goods is packed by oil paper and plastic bags inside .

6. Using wooden package .

7. We support the custom - made demand for package

Delivery : DHL Fedex EMS UPS or by Air/ Sea

• Warranty

All our products are made with a serial Number, we may trace the product date against the serial Number.

It's normally 1 year factory warranty from production date, or 500-600 working hours.

• Our service

1. Professional technology support

2. After-sale service

3. 24 hours on-line service

4. Help you to solve your excavator problems

• Why choose us?

Let’s talk—we have NO barrier in language!

2. Request for more item information---there are nearly 2000 products for your option!

3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
