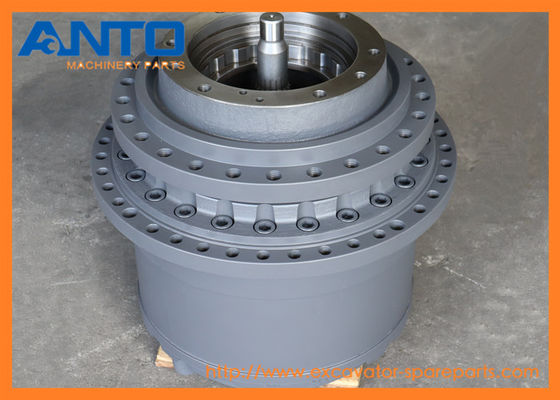

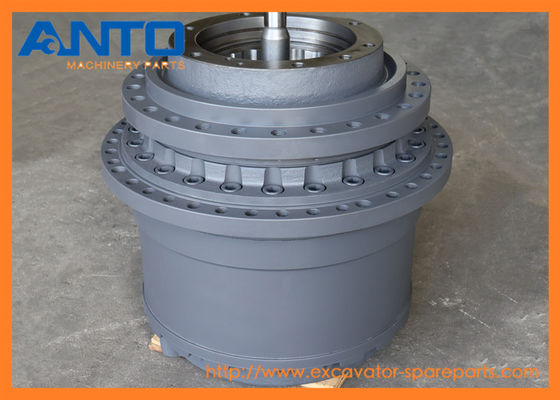

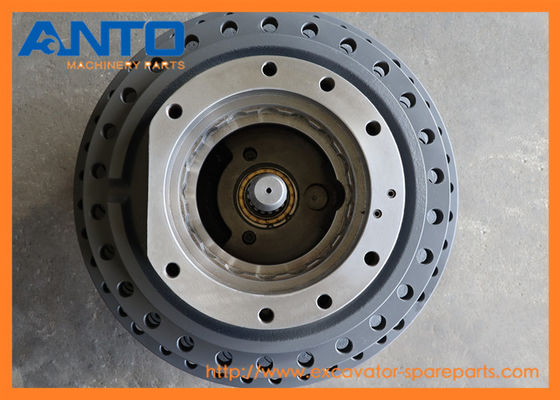

170401-00009 DX480 DX520 Travel Device Reduction Gearbox For Doosan Excavator Final Drive

170401-00009 DX480 DX520 Travel Device Reduction Gearbox For Doosan Excavator Final Drive
170401-00009 DX480 DX520 Travel Device Reduction Gearbox For Doosan Excavator Final Drive 170401-00009 DX480 DX520 Travel Device Reduction Gearbox For Doosan Excavator Final Drive 170401-00009 DX480 DX520 Travel Device Reduction Gearbox For Doosan Excavator Final Drive

Large Image :  170401-00009 DX480 DX520 Travel Device Reduction Gearbox For Doosan Excavator Final Drive

Product Details:
Place of Origin: China
Brand Name: DOOSAN
Model Number: DX520
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Parts No.: 170401-00009 Excavator Model: DX480 DX490 DX520 DX500 DX530
Category: DOOSAN Excavator Travel Device Packing: Wooden Box
Warranty: 6 Months Availability: Stock For Soon Delivery
High Light:

170401-00009 Excavator Final Drive

,

DX480 Excavator Final Drive

,

DX520 Travel Device



  • 170401-00009 DX480 DX520 Travel Device Reduction Gearbox For DOOSAN Excavator Final Drive







  • Spec Sheet
Excavator spare parts name travel device gearbox
Equipment Model DX480 DX490 DX520 DX530
Parts Category excavator final drive
Spare parts Condition Brand new, OEM quality
MOQ of order(PCS, SET) 1 PCS
Parts Availability In stock
Delivery Lead time 1-3 days





  • Application

DOOSAN Excavator  DX480 DX490 DX500 DX520 DX530







  • Catalog parts list diagram
Pos. Part No Qty Parts name Comments
101. 130713-01308A [1]
102. 900122-00085 [1]
103. 401111-00032 [2]
105. 140105-00316 [2]
107. S2228463 [24]
108. 401002-00763 [1]
109. 101558-00021 [1]
110. 430210-00218 [1]
111. S2221361 [20]
112. 1.412-00164 [1] PLATE;THRUST
113. 130801-00021 [1]
114. 130422-00054 [1]
115. S6510420 [1] RING
120. 100502-00177A [1]
121. 130418-00392 [4]
122. 140104-00073 [8]
123. 131002-00423 [4]
124. 130712-00861 [4]
125. S5740960 [3] PIN;SPRING
126. 120816-00104 [8]
127. S5741380 [4]
130. 100502-00178 [1]
131. 130418-00393 [3]
132. 140104-00073 [3]
133. 130712-00862 [3]
135. 120816-00105 [6]
140. 100502-00179 [1]
141. 130418-00394 [1]
142. 1.216-00017 [3] CAGE,NEEDLE
143. 1.115-00232 [3] RING;INNER
144. 1.412-00121 [6] PLATE;SIDE E
145. S6500450 [3] RING;SNAP
150. 130425-00028 [1]
151. 114-00348 [2] RING;THRUST 90
152. 401003-00383 [1]
160. 130425-00029 [1]
162. 401003-00384 [1]
170. 130412-00108 [1]
180. 110508-09954 [1]
181. K9004304 [1] WASHER;THRUST
182. 2181-1890D4 [3] PLUG
183. S8000181 [3] O-RING
184. 401003-00385 [1]
185. S0560553 [20] BOLT M12X1.75X40
186. S5102703 [20] WASHER
170401-00009 DX480 DX520 Travel Device Reduction Gearbox For Doosan Excavator Final Drive 0





  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.



  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI CAT VOLVO DOOSAN KOBELCO SUMITOMO KATO JCB





  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
