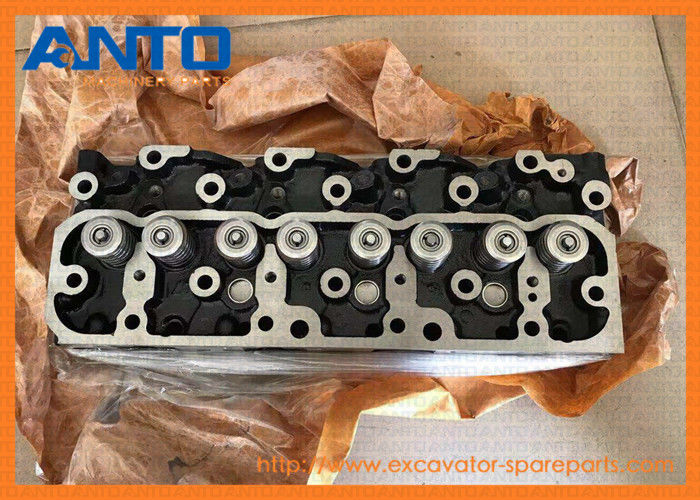

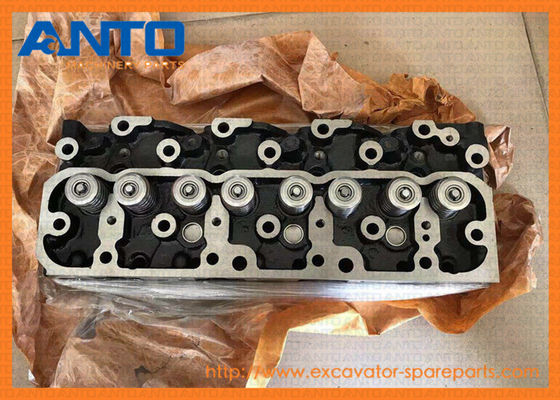

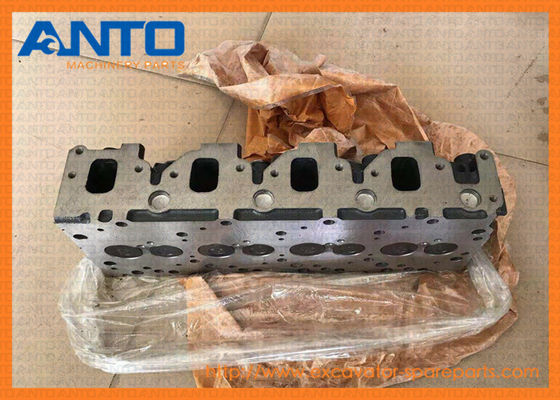

8971096423 8971201783 Cylinder Head Assy For ISUZU 4JG1 Engine Parts

• 8971096423 8971201783 8971096423 Cylinder Head Assy For ISUZU 4JG1 Engine Parts

• Specification

• Applied models

EX75UR-5 EX75URT-5 EX75US-5 HR750SM HX180B ZR240JC ZR600TS ZR800TS ZX60-HCMC ZX70 ZX70-HCME ZX70-HHE ZX75UR ZX75URT ZX75US ZX75US-A ZX80LCK ZX80SB ZX80SB-HCME ZX85US-HCME Hitachi

• More head assy for HITACHI machines

0728703 HEAD;CYL.
EX60-5(LC), EX60BUN-5, EX70LCK-5, ZX70, ZX75US, ZX80LCK, ZX80SB-HCME

1255603 HEAD;CYL.
EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...

0901703 HEAD;CYL.
ZX70, ZX75US-3, ZX75US-A

1130503 HEAD;CYL.
ZX110, ZX120, ZX125US, ZX135US, ZX200, ZX200-3, ZX225US, ZX225USR, ZX225USR-3, ZX70, ZX75US
1158805 HEAD;CYL.
ZX60-HCMC

0884003 HEAD;CYL.
HX180B, HX180B-2

1150901 HEAD;CYL.
EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...

1253303 HEAD;CYL.
EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...
1158823 HEAD;CYL. ASS'Y
ZX60-HCMC

4613204 HEAD;CYL.
HX180B, HX180B-2

1158705 HEAD;CYL.
ZX60-HCMC

1158607 HEAD;CYL. ASS'Y
ZX60-HCMC

0679903 HEAD;CYL.
EX550, EX550-5 JPN, EX600H-5 JPN, ZX600, ZX650H

0432301 HEAD;CYL.
EX22, EX25, EX30, EX30-2, EX33MU, EX33U

0400703 HEAD;CYL.
EX1100, EX1100-3

0257803 HEAD;CYL.
EX60, EX60G, EX60SR, EX60WD, LX70, LX70-3, LX80, UH033, UH033SR, UH033SS
4355580 HEAD-REST
EX100WD-3, EX100WD-3C, EX200-3E, EX60-3, EX60-5(LC), EX60BUN-5, EX60LCT-3, EX60WD-2, EX70LCK-5

1015435 HEAD;CYL.
EX270-5, EX280H-5

1016386 HEAD;CYL.
EX270

0948204 HEAD;CYL. ASS'Y
ZX27-3, ZX30UR-3, ZX35U-3
0929501 HEAD;CYL.
EX1800, EX1800-3, EX1900-5, EX1900-6

0686403 HEAD;CYL.
EX135UR, EX135UR-5, EX135US-5, EX140US-5, EX150LC-5

0186004 HEAD;CYL.
UH101

0165901 HEAD;CYLINDER
UH171

• catalog parts list

Pos.Part NoQtyParts nameComments
001. 8971096423 [1] HEAD ASM; CYL
001. 8971201783 [1] HEAD ASM; CYL
001. 8971096423 [1] HEAD ASM; CYL
002. 8970661960 [1] GASKET; CYL HD T=1.60 1-HOLE<BR>ALSO INCLUDED IN GASKET SET(ENG & HEAD)
002. 8970661970 [1] GASKET; CYL HD T=1.65 2-HOLE<BR>ALSO INCLUDED IN GASKET SET(ENG & HEAD)
002. 8970661980 [1] GASKET; CYL HD T=1.70 3-HOLE<BR>ALSO INCLUDED IN GASKET SET(ENG & HEAD)

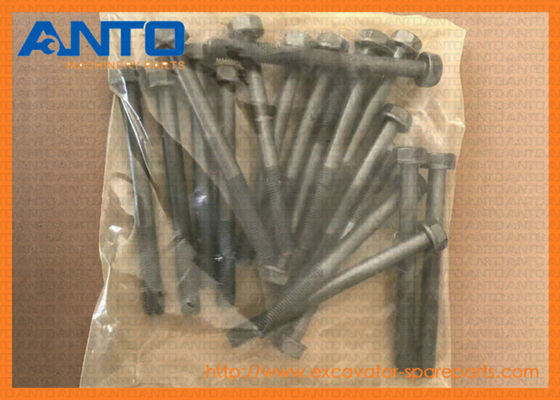

003. 8944556670 [18] BOLT; CYL HD TO BLOCK M11X122
003. 8971334161 [18] BOLT; CYL HD TO BLOCK M11X122
004. 5117210160 [8] GUIDE; VLV
005(A). 8941305580 [4] SEAT; VLV INSERT A INLET
005(A). 8972312280 [4] SEAT; VLV INSERT INLET
005(B). 8941305590 [4] SEAT; VLV INSERT A EXHAUST
005(B). 8972312290 [4] SEAT; VLV INSERT EXHAUST
007(A). 1096000052 [1] CUP; SEALING,CYL HEAD A OD=45
007(A). 8973514510 [1] CUP; SEALING,CYL HEAD A OD=45
007(A). 1096000052 [1] CUP; SEALING,CYL HEAD OD=45
007(B). 1096000112 [7] CUP; SEALING,CYL HEAD A OD=22
007(B). 8972096090 [7] CUP; SEALING,CYL HEAD OD=22
007(C). 5111290060 [3] CUP; SEALING,CYL HEAD OD=16
007(D). 5096000130 [5] CUP; SEALING,CYL HEAD OD=12.3
009. 9041108250 [1] STUD; INL MANIF A M8X25 L=37
009. 9096300341 [1] STUD; INL MANIF M8X35 L=46
009. 0410108250 [1] STUD; INL MANIF M8X25 L=37
010. 1825130432 [4] PLUG; GLOW
011(B). 8941537232 [1] CONNECTOR; GLOW PLUG
012(A). 8971077390 [1] HANGER; ENG,RR
013(A). 0286808250 [1] BOLT; HANGER A M8X25 FLANGE
013(A). 0286508250 [1] BOLT; HANGER M8X25 FLANGE
014. 9041108350 [2] STUD; EXH MANIF A M8X35 L=47
014. 0410108350 [2] STUD; EXH MANIF M8X35 L=47
041. 0286810300 [1] BOLT; ENG HANGER A M10X30 FLANGE
041. 0286510300 [1] BOLT; ENG HANGER M10X30 FLANGE
105. 8971203070 [8] SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG & HEAD)
119. 9096300341 [2] STUD; HANGER,RR M8X35 L=46
133. 0911502080 [2] NUT; ENG HANGER A
133. 0911802080 [2] NUT; ENG HANGER
168(B). 8944404290 [1] HANGER; ENG,FRT

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5.. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Our Service

1. OEM Manufacturing welcome : Product , Package ...

2. When you place order with us , we will take clear photos as your need .

3. We will reply you for your inquiry in 24 hours .

4. When you got the goods , test them , and give me a feedback . If you have any questions about the problem , contact with us , we will offer the solve way for you .

• Our Company

Anto Machinery is made up of a professinal engineering team, with high experirence in genuine, OEM and aftermarket parts.

for excavators, bulldozers, forklift, loaders, and crane covering brand Hyundai , Sany , DOOSAN , Vo-lvo , HITACHI , KOBELCO , KOMATSU , KATO , , JCB , LIEBHERR , SANY , XCMG , XGMA , LIUGONG , SHANTUI , etc.

We are with full range of data information for the engine parts, hydraulic parts ,seal parts, electrical parts, gear & reducer parts, cylinder parts, bucket parts, cab parts, etc. As exporting about 20 years, we now have customers the whole world including the countries Brazil, Mexico, Colombia, Venezuela, Peru, America, Canada, Russia, Poland, Ireland, Sweden, France, England, Romania, Spain, Portugal, Ukraine, Lithuania, Norway, Italy, Finland, UAE, Saudi Arabia, Israel, Iraq, Sudan, Kenya, Tanzania, Sri Lanka, Kazakhstan, Pakistan, Burma, Thailand, Vitenam, Philippines, Indonesia, Australia, New Zealand, etc.

Thanks very much to our customers support and big trust.

We will keep improving everyday. Any of your encouragement in inquiry and order is our motivation.

We warm welcome your visiting and consulting on your needed parts.
