Product Details:
Payment & Shipping Terms:
|
| Application: | Excavator Travel Reduction Parts | Part Name: | Sun Gear |
|---|---|---|---|
| Part Number: | XKAQ-00203 XKAQ-00215 | Model Number: | R250 R290 R305 R300 R320 R330 |
| Warranty: | 6/12 Months | Condition: | 100% New |
| High Light: | XKAQ00215 Travel Reduction Sun Gear,XKAQ00203 Travel Reduction Sun Gear |
||

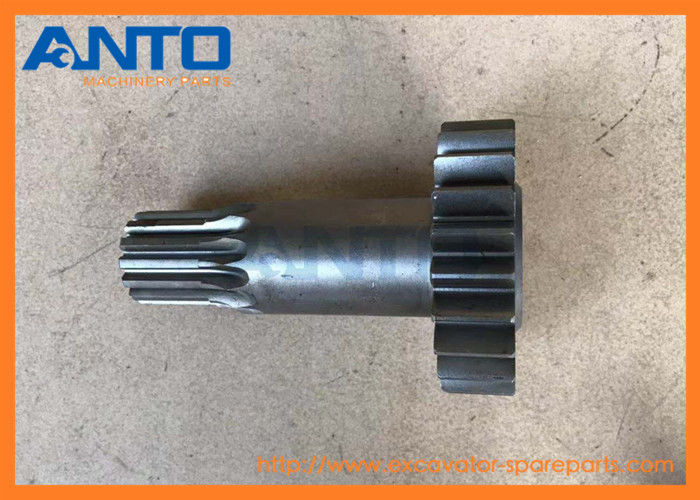

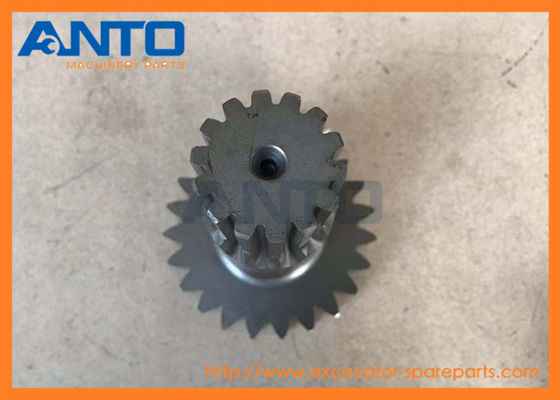

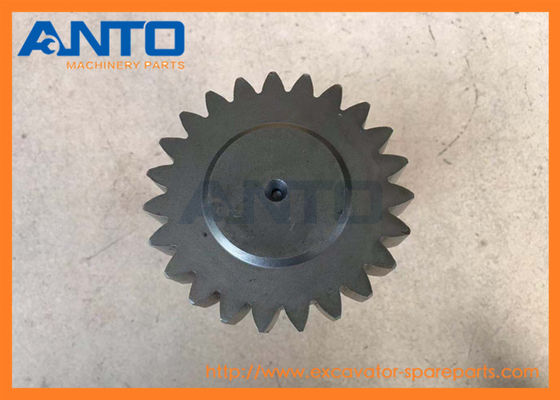

XKAQ-00203 XKAQ-00215 XKAQ00203 XKAQ00215 Hyundai Travel Reduction Sun Gear
| Parts No | XKAQ-00203 XKAQ00203 |
| Part name | Sun gear shaft |
| Applied excavator |
R250 R290 R305 R300 R320 R330 |
| Category group | Excavator Travel Gearbox Parts |
| Place of origin | CHINA |
| Payment term | T/T, Western Union, MoneyGram |
| Packing | As request or standard packing |
| Delivery time | Immediately |
| Means of transport | By sea/air, DHL |
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH Hyundai
| 3929027 GEAR-CRANKSHAFT | 3905427 GEAR-FLYWHEEL RING | 3918776 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... | 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... | 180DE, 250D-9, 250DE, 42HDLL, HL760, HL760-3, HL760-3ATM, HL760-9S, HL770-7, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R290LC3, R290LC7, R300LC9S, R305LC7, R320LC3, R320LC7, R320L... |
| 3950135 GEAR-CAMSHAFT | 4896380 GEAR-CAMSHAFT | 4893389 GEAR-FUEL PUMP |
| 180DE, 250DE, HL770-7A, HL770-9A, R320LC7A, R320LC9, R330LC9A, R360LC7A, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R430LC9, R430LC9A | HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A | R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A |
| 4893386 GEAR-CRANKSHAFT | 31Q9-30120 GEAR PUMP ASSY | XKAG-00181 GEAR-JOINT |
| R290LC7A | R320LC9, R360LC9, R380LC9DM, R380LC9MH, R430LC9 | HX330L, HX380L, HX430L, HX480L, HX520L, R330LC9A, R380LC9A, R430LC9A, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A |
| XKAG-00182 GEAR-DRIVEN | XKAQ-00998 GEAR-RING | XKAQ-01000 GEAR-PINION |
| HX330L, HX380L, HX430L, HX480L, HX520L, R330LC9A, R380LC9A, R430LC9A, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A | R320LC9, R330LC9A, R330LC9S, R330LC9SH | R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| XKAQ-00195 GEAR-SUN NO.2 | XKAQ-00392 GEAR-PLANETERY NO.2 | XKAQ-00190 GEAR-PLANETARY NO.2 |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC... | R250LC7, R250LC7A, R250LC9, R290LC7, R290LC7A, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R320LC9, RD340LC-7 | R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A |
| XKAQ-00186 GEAR-SUN NO.3 | XKAQ-00389 GEAR-PLANETARY NO.3 | XKAQ-00181 GEAR-PLANETARY NO.3 |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC7H, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC... | R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340... | R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC7, R320LC7A |
| XJCK-00078 GEAR-RING | XJCK-00129 GEAR-SUN | XJCK-00130 GEAR-SUN |
| R250LC7, R290LC7, R290LC9, R305LC7, R320LC7 | R250LC7, R290LC7, R305LC7, R320LC7 | R250LC7, R290LC7, R305LC7, R320LC7 |
| XKAH-00479 GEAR-SPUR | XKAH-00491 GEAR-INPUT | XKAQ-00132 GEAR-PINION |
| R250LC7 | R250LC7 | R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| XKAQ-00206 GEAR-RING | XKAQ-00762 GEAR-RING | XKAH-01102 GEAR-PLANET 1 |
| R250LC7, R250LC7A, R250LC9, R290LC7, R290LC7A, R290LC7H, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R320LC9 | R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 | R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| XJDK-00102 GEAR S1 | XJDK-00103 GEAR S2 | XJDK-00037 GEAR B1 |
| R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9 | R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9 | R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9 |
| XJDK-00130 GEAR S2 | XJAF-01952 GEAR-RING | XJAF-01664 GEAR-CRANKSHAFT |
| R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z-9AKNH, R27Z-9 | R25Z-9A, R27Z-9, R28-7, R35-7, R36N-7 | R25Z-9A, R27Z-9, R28-7, R35-7, R36N-7 |
| XJAF-02913 GEAR-CRANKSHAFT | XJAF-01662 GEAR-INJECTION PUMP | XJAF-01663 GEAR ASSY-IDLER |
| R25Z-9A, R27Z-9 | R25Z-9A, R27Z-9, R28-7, R35-7, R36N-7 | R25Z-9A, R27Z-9, R28-7, R35-7, R36N-7 |
| Pos. | Part No | Qty | Parts name | Comments |
| *-2. | 31N8-40070 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071BG | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40072 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40073 | [1] | T/REDUCTION GEAR | |
| 2 | XKAQ-00173 | [1] | SEAL-FLOATING | |
| 2 | XKAQ-00803 | [1] | SEAL-FLOATING | |
| 3 | XKAQ-00174 | [1] | HOUSING | |
| 3 | XKAQ-00802 | [1] | HOUSING | |
| 4 | XKAQ-00175 | [2] | BEARING-ANGULAR | |
| 4 | XKAQ-00175-AS | [2] | BEARING-ANGULAR | FOR AS ONLY |
| 5 | XKAQ-00176 | [1] | SHIM | STD |
| 5 | XKAQ-00992 | [1] | SHIM | 0.5T |
| 5 | XKAQ-00993 | [1] | SHIM | 0.9T |
| 5 | XKAQ-00994 | [1] | SHIM | 1.0T |
| 5 | XKAQ-00995 | [1] | SHIM | 1.2T |
| 6 | XKAQ-00177 | [1] | RETAINER | |
| 7 | XKAQ-00178 | [17] | BOLT-WRENCH | |
| 8 | XKAQ-00179 | [1] | CARRIER ASSY-NO.3 | |
| 8 | XKAQ-00398 | [1] | CARRIER 3 ASSY | |
| 8-1. | XKAQ-00180 | [1] | CARRIER-NO.3 | |
| 8-1. | XKAQ-00396 | [1] | CARRIER 3 | |
| 8-2. | XKAQ-00181 | [4] | GEAR-PLANETARY NO.3 | |
| 8-2. | XKAQ-00389 | [4] | GEAR 3-PLANETARY | |
| 8-3. | XKAQ-00182 | [72] | NEEDLE-NO.3 | |
| 8-3. | XKAQ-00390 | [72] | NEEDLE 3 | |
| 8-4. | XKAQ-00183 | [8] | WASHER-THRUST NO.3 | |
| 8-4. | XKAQ-00391 | [8] | WASHER 3-THRUST | |
| 8-5. | XKAQ-00184 | [4] | PIN 3 | |
| 8-6. | XKAQ-00185 | [4] | PIN 3-SPRING | |
| 8-7. | XKAQ-00186 | [1] | GEAR 3-SUN | |
| 8-8. | XKAQ-00187 | [1] | RING 3-SNAP | |
| 8-9. | XKAQ-00651 | [4] | PIN 3-SPRING | |
| 9 | XKAQ-00188 | [1] | CARRIER ASSY-NO.2 | |
| 9 | XKAQ-00399 | [1] | CARRIER ASSY 2 | |
| 9-1. | XKAQ-00189 | [1] | CARRIER-NO.2 | |
| 9-1. | XKAQ-00397 | [1] | CARRIER 2 | |
| 9-2. | XKAQ-00190 | [3] | GEAR-PLANETARY NO.2 | |
| 9-2. | XKAQ-00392 | [3] | GEAR 2-PLANETERY | |
| 9-3. | XKAQ-00191 | [45] | NEEDLE-NO.2 | |
| 9-3. | XKAQ-00393 | [45] | NEEDLE 2 | |
| 9-4. | XKAQ-00192 | [6] | WASHER-THRUST NO.2 | |
| 9-4. | XKAQ-00394 | [6] | WASHER 2-THRUST | |
| 9-5. | XKAQ-00193 | [3] | PIN 2 | |
| 9-6. | XKAQ-00194 | [6] | PIN 2-SPRING | |
| 9-7. | XKAQ-00195 | [1] | GEAR 2-SUN | |
| 9-8. | XKAQ-00196 | [1] | RING 2-SNAP | |
| 9-9. | XKAQ-00650 | [6] | PIN 2-SRPING | |
| 10 | XKAQ-00197 | [1] | CARRIER ASSY-NO.1 | |
| 10 | XKAQ-00400 | [1] | CARRIER 1 ASSY | |
| 10-1. | XKAQ-00198 | [1] | CARRIER 1 | |
| 10-2. | XKAQ-00199 | [3] | GEAR 1-PLANETARY | |
| 10-3. | XKAQ-00200 | [3] | BEARING-NEEDLE | |
| 10-4. | XKAQ-00201 | [6] | WASHER-THRUST NO.1 | |
| 10-4. | XKAQ-00395 | [6] | WASHER 1-THRUST | |
| 10-5. | XKAQ-00202 | [3] | PIN 1 | |
| 11 | XKAQ-00203 | [1] | GEAR 1-SUN | |
| 12 | XKAQ-00204 | [3] | PLUG | |
| 13 | XKAQ-00205 | [4] | PIN-LOCK | |
| 14 | XKAQ-00206 | [1] | GEAR-RING | |
| 14 | XKAQ-00762 | [1] | GEAR-RING | |
| 15 | XKAQ-00207 | [24] | BOLT-WRENCH | |
| 16 | XKAQ-00208 | [1] | RING-THRUST | |
| 17 | XKAQ-00209 | [1] | COVER | |
| 18 | XKAQ-00210 | [1] | RING 2-THRUST | |
| 19 | XKAQ-00211 | [16] | BOLT-WRENCH | |
| 20 | XKAQ-00212 | [1] | MOTOR-RING | |
| 21 | XKAQ-00213 | [1] | RING 3-THRUST | |
| 22 | XKAQ-00214 | [1] | PAD | |

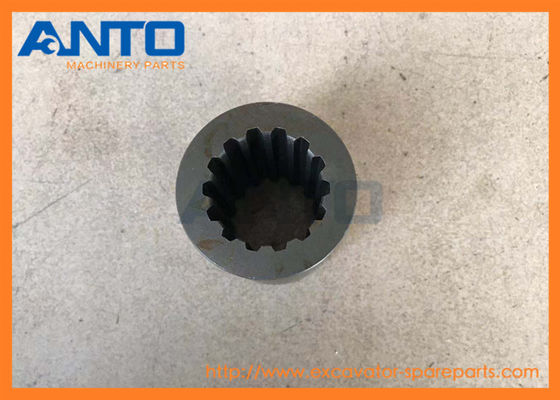

| 23 | XKAQ-00215 | [1] | COUPLING | |
| N. | @ | [1] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Packaging Details
Plastic Bag & Plastic Box , Customize , Or customer's Brand
2. Delivery Time
1-2 day after received the payment
3. Type of Shipping :
EMS , DHL , TNT , UPS , FeDex , By air & By sea ..
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
1. All of our products are strictly inspected and tested before packing in factory.2. All of our products are strictly produced according to Genuine parts standard.
2. We have our own design and develop department, thus, we can produce the spare parts according to your samples.
3. We have a team of professional engineers to supply related technology help if customers needs our tech-assistant.
4. All of our products are of good quality, competitive price, comparing to other suppliers.
5. We have two big warehouses in our city, thus we have enough stock goods, which enable us make delivery in fastest efficiency.
6. We have completed transport system to shipped the goods in fast way.
7. Sample processing, material processing, material agent processing, drawing processing, OEM processing, and other processing are all available.
8. We have thousands of customers in different countries and regions around the world.
