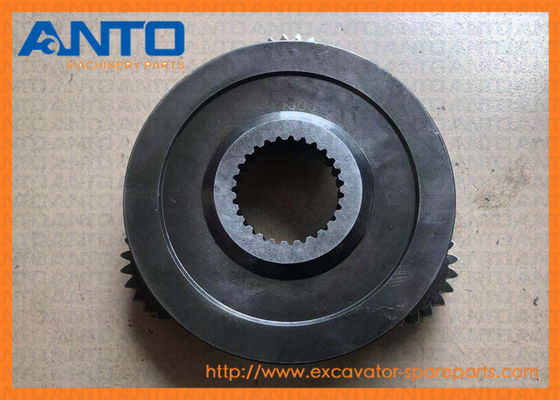

05/903825 05903825 Reduction Gear 1st For JCB JS130 Track Gearbox

A. JLA0369 [2]
Motor & track gearbox
B. NSP [0]
None serviced part
1. 05/901963 [10]
Capscrew
2. 05/903821 [1]
Cover assembly
3. 05/903822 [2]
Plug breather
3. 05/903802 [2]
Plug breather
4. 05/903803 [2]
Washer
5. 05/903820 [1]
Pad
5. 05/901926 [1]
Pad thrust
6. 05/903819 [1]
O Ring
7. 05/903824 [1]
Gear sun
8. 05/903825 [1]
Gear reduction set 1st planet
9. 05/903836 [1]
Gear reduction set 2nd planet
10. 05/903826 [1]
Gear sun
11. 05/903828 [1]
Gear reduction set 3rd planet
11-1. 05/902026 [4]
Capscrew
11-2. 05/903829 [4]
Bush
12. 05/903823 [1]
Gear sun
13. 05/903830 [1]
Housing
14. 05/903811 [1]
Seal assembly
15. 05/903831 [1]
Spacer
16. 05/903832 [1]
Motor hydraulic See frame E2-6-3 for components.
17. 05/903833 [9]
Screw
17. 6004/3610 [9]
Capscrew







• Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.



• Advantage





• Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



• Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
