Product Details:
Payment & Shipping Terms:
|
Category: | Excavator Engine Parts | Machine Model: | 320D C6.4 |
---|---|---|---|

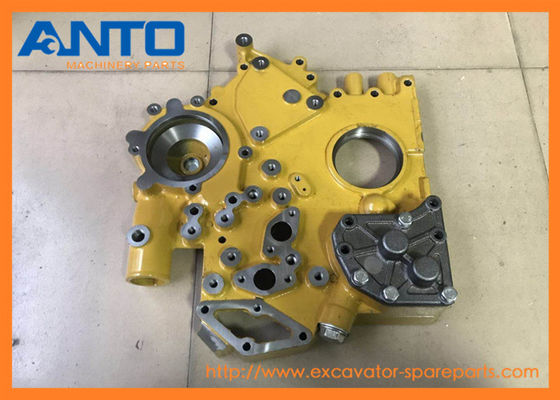

Parts No.: | 294-1727 2941727 32F11-00021 | Parts Name: | Oil Pump |
Warranty: | 3/6 Months | Package: | Standard Export Carton |
Highlight: | diesel engine spare parts,digger spare parts |
spare parts name | oil pump |
Equipment Model | 320D C6.4 S6K |
Parts Category | Excavator engine parts |
Spare parts Condition | Brand new |
MOQ of order(PCS, SET) | 1 |
Parts Availability | In stock |
Delivery Lead time | 1-3 days |
EXCAVATOR 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 321D LCR 323D L 323D LN 323D SA
MOBILE HYD POWER UNIT 323D L 323D LN
Number 27 on drawing
Pos. | Part No | Qty | Parts name | Comments |
1 | 222-8292 | [1] | POINTER | |
2 | 294-1731 | [1] | BOLT (M8X1.25X19.5-MM) | |
3 | 6V-8236 | [1] | PIN-SPRING | |
4 | 294-1732 | [1] | PLATE | |
5 | 6V-5215 M | [2] | BOLT (M8X1.25X16-MM) | |
6 | 297-7646 | [2] | BOLT (M8X1.25X95.5-MM) | |
7 | 178-6538 | [1] | COVER AS | |
8 | 5I-5597 | [6] | BOLT (M10X1.5-THD) | |
9 | 5I-7610 M | [1] | BOLT (M10X1.5X20-MM) | |
10 | 297-7647 | [6] | BOLT (M10X1.5X77-MM) | |
11 | 8T-4172 M | [2] | BOLT (M10X1.5X80-MM) | |
12 | 8T-6685 M | [4] | BOLT (M10X1.5X110-MM) | |
13 | 7X-0796 | [6] | LOCKWASHER | |
14 | 294-1733 | [1] | GASKET | |
15 | 294-1734 | [1] | GASKET | |
16 | 212-8571 | [1] | COVER | |
17 | 212-8572 | [1] | GASKET | |
18 | 196-8366 | [1] | BOLT | |
19 | 294-1735 | [5] | BOLT (M8X1.25X90.5-MM) | |
20 | 294-7251 M | [6] | BOLT AS | |
21 | 294-1726 M | [4] | BOLT (M10X1.5X37-MM) | |
22 | 096-9435 | [1] | PLUG | |
23 | 096-9532 | [1] | WASHER (15.8X22.5X2-MM THK) | |
24 | 096-9528 | [1] | SEAL-O-RING | |
25 | 6F-7556 | [2] | COVER | |
26 | 5I-7632 | [1] | PIPE | |
27 | 294-1727 | [1] | BODY AS | |
27A. | 294-1728 | [1] | GEAR (32-TEETH) | |
27B. | 125-2950 | [1] | GEAR AS (9-TEETH) | |
195-8225 | [1] | CAP (MAIN BEARING) | ||
28 | 5I-7559 | [1] | VALVE AS | |
29 | 5I-7558 | [1] | GEAR AS (9-TEETH) | |
30 | 294-1729 | [1] | GEAR AS (33-TEETH) | |
31 | 324-4223 | [1] | SEAL | |
32 | 6F-7557 | [2] | GASKET | |
33 | 5I-7683 | [1] | SPINDLE | |
34 | 178-6537 | [1] | GASKET | |
M | METRIC PART |
All engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
