Product Details:
Payment & Shipping Terms:
|
| Product Name: | Planetary Carrier Assy | Excavator Model: | EC240B EC240 EC240C |
|---|---|---|---|
| Parts Number: | SA7117-34340 7117-34340 | Warranty: | 6 Months |
| Category: | Excavator Travel Gearbox | Packing: | Standard Wooden Box |
| Highlight: | final drive,excavator gearbox |
||

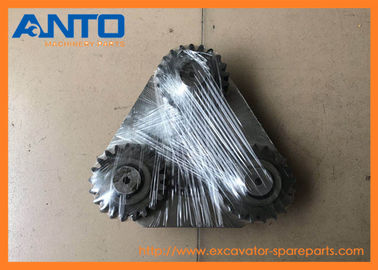

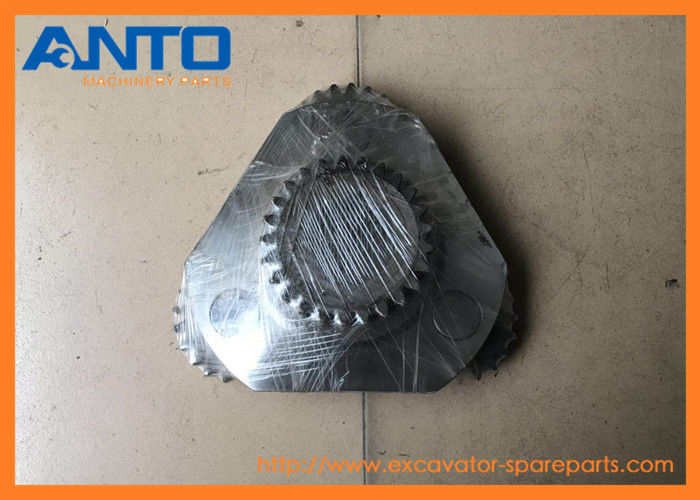

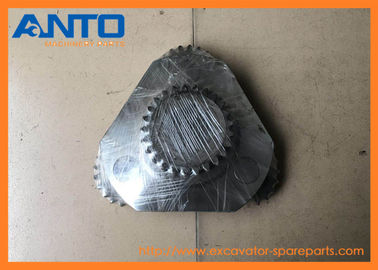

| Spare Parts Description | Planet carrier assy no.1 |
| Parts No. | SA7117-34340 7117-34340 |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
EC240 EC240B EC240C Vo-lvo.Heavy
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14528735 | [1] | Gearbox | ||
| 1 | VOE14528715 | [1] | Housing | |
| 2 | VOE14538940 | [2] | Bearing | |
| 3 | SA7117-34120 | [1] | Ring gear | |
| 4 | SA9016-21818 | [20] | Hex. socket screw | |
| 5 | VOE14528720 | [1] | Seal | |
| 6 | VOE14883847 | [3] | Plug | |
| 7 | SA7117-34190 | [1] | Retainer | |
| 8 | VOE997446 | [12] | Hexagon screw | |
| 9 | SA7117-34200 | [1] | Planet carrier | |
| 10 | SA7117-34210 | [1] | Carrier | |
| 11 | SA7117-34220 | [4] | Planetary gear | |
| 12 | SA7117-34230 | [8] | Needle bearing | |
| 13 | SA7117-34240 | [8] | Washer | |
| 14 | SA7117-34250 | [4] | Pin | |
| 15 | VOE13951991 | [4] | Spring pin | |
| 16 | VOE14528721 | [1] | Planet carrier | |
| 17 | VOE14528722 | [1] | Carrier | |
| 18 | SA1036-00310 | [1] | Thrust ring | |
| 19 | SA7117-34280 | [1] | Gear | |
| 20 | SA8230-21020 | [1] | Thrust ring | |
| 21 | SA7117-34290 | [1] | Retaining ring | |
| 22 | SA7117-34300 | [3] | Planetary gear | |
| 23 | SA7117-34310 | [3] | Needle bearing | |
| 24 | VOE14556491 | [6] | Washer | |
| 25 | SA7117-34330 | [3] | Pin | |
| 26 | SA9325-06012 | [3] | Spring pin | |
| 27 | SA7117-34340 | [1] | Planet carrier | |
| 28 | SA7117-34350 | [1] | Planet carrier | |
| 29 | SA7117-34370 | [3] | Pin | |
| 30 | SA9325-06012 | [3] | Spring pin | |
| 31 | SA7117-34360 | [1] | Gear | |
| 32 | SA7117-34440 | [1] | Retaining ring | |
| 33 | SA7117-34420 | [3] | Planetary gear | |
| 34 | SA7117-34380 | [3] | Needle bearing | |
| 35 | SA7117-34390 | [3] | Washer | |
| 36 | SA7117-34400 | [3] | Washer | |
| 37 | SA9541-01034 | [3] | Retaining ring | |
| 38 | SA1036-00290 | [2] | Thrust ring | |
| 39 | SA7117-34430 | [1] | Gear | |
| 40 | VOE14601854 | [1] | Cover | |
| 41 | VOE955922 | [16] | Spring washer | |
| 42 | VOE993025 | [16] | Hexagon screw | |
| 43 | SA7117-34140 | [1] | Shim | 0.1t |
| 44 | SA7117-34150 | [1] | Shim | 0.3t |
| 45 | SA7117-34160 | [1] | Shim | 0.5t |
| 46 | SA7117-34170 | [1] | Shim | 1.0t |
| 47 | SA1036-00450 | [1] | Shim | |
| 48 | SA1036-00460 | [1] | Shim | |
| 49 | VOE990557 | [3] | O-ring | |
| 100 | VOE14526221 | [1] | Overhaul kit |
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
