Product Details:
Payment & Shipping Terms:
|

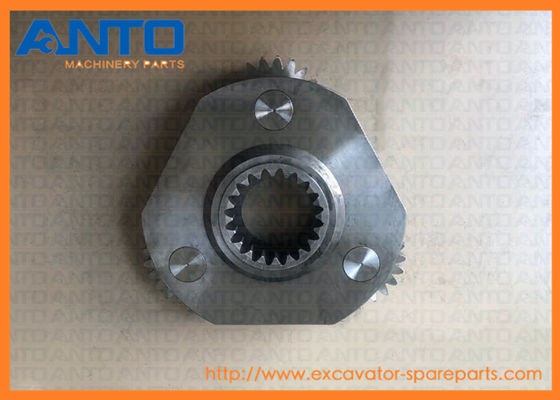

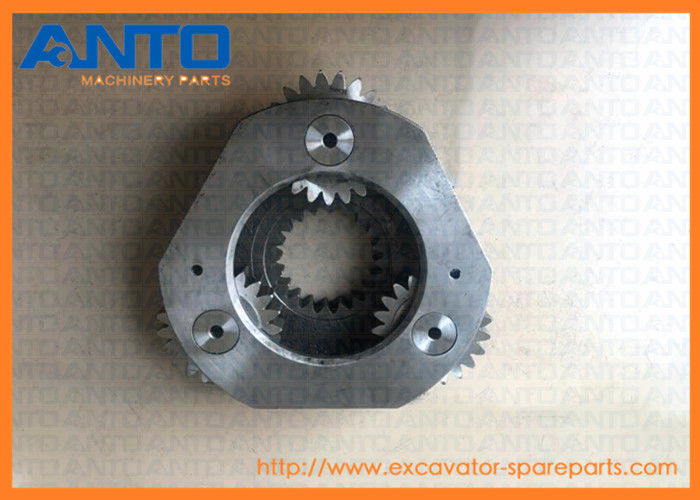

Product Name: | Planet Carrier No.2 Assy | Excavator Model: | EC250D EC300D |
---|---|---|---|
Parts Number: | VOE14599939 14599939 | Warranty: | 6 Months |
Category: | Excavator Final Drive Parts | Packing: | Standard Wooden Box |
Highlight: | final drive,final drive parts |
Excavator spare parts name | Carrier assy no.2 |
Equipment Model | EC250D EC300D |
Parts Category | excavator travel reduction gearbox |
Spare parts Condition | Brand new |
MOQ of order(PCS, SET) | 1 |
Parts Availability | In stock |
Delivery Lead time | 1-3 days |
EC250D EC250E EC300D EC300E Vo-lvo.Heavy
Pos. | Part No | Qty | Parts name | Comments |
VOE14599921 | [1] | Travel gearbox | ||
1 | VOE14599922 | [1] | Housing | |
2 | VOE14599932 | [1] | Gear | |
3 | SA14599923 | [2] | Bearing | |
4 | VOE14599927 | [1] | Shim | THICK = 0,6 MM |
4 | VOE14599928 | [1] | Shim | THICK = 0,8 MM |
4 | VOE14599929 | [1] | Shim | THICK = 1,0 MM |
4 | VOE14599930 | [1] | Shim | THICK = 0,7 MM |
4 | VOE14599931 | [1] | Shim | THICK = 0,9 MM |
4 | VOE14607977 | [1] | Shim | THICK = 1,1 MM |
5 | VOE14599926 | [1] | Retainer | |
6 | VOE14599933 | [1] | Planet carrier | |
7 | None14599934 | [1] | Carrier | |
8 | VOE14566415 | [4] | Pin | |
9 | VOE14599935 | [4] | Planetary Gear | |
10 | VOE14566414 | [8] | Washer | |
11 | SA9325-06012 | [4] | Spring pin | |
12 | SA1036-00300 | [1] | Ring | |
13 | VOE14566412 | [4] | Needle bearing | |
14 | VOE983919 | [16] | Hex. socket screw | |
15 | VOE14599938 | [1] | Gear | |
16 | VOE14599939 | [0001] | Planet carrier | |
17 | VOE14599944 | [3] | Pin | |
18 | None14599940 | [1] | Carrier | |
19 | VOE14599941 | [3] | Planetary Gear | |
20 | VOE14599943 | [6] | Washer | |
21 | SA9325-06012 | [3] | Spring pin | |
22 | VOE14599942 | [3] | Needle Bearing | |
23 | VOE14566433 | [1] | Thrust washer | |
24 | VOE14599945 | [1] | Gear | |
25 | VOE14599946 | [1] | Planet carrier | |
26 | None14599947 | [1] | Carrier | |
27 | VOE14599948 | [3] | Planetary Gear | |
28 | VOE14599950 | [6] | Washer | |
29 | VOE14599951 | [3] | Pin | |
30 | VOE951955 | [3] | Spring pin | |
31 | VOE14599949 | [3] | Needle Bearing | |
32 | VOE14569232 | [1] | Ring | |
33 | VOE14566417 | [1] | Ring | |
34 | VOE14599952 | [1] | Gear | |
35 | VOE9541-01038 | [1] | Snap Ring | |
36 | VOE14599953 | [1] | Cover | |
37 | VOE982211 | [18] | Hexagon screw | |
38 | SA9213-20000 | [18] | Spring washer | |
39 | VOE14883847 | [2] | Plug | |
40 | VOE990557 | [2] | O-ring | |
41 | VOE9324-21617 | [4] | Pin | |
42 | VOE14599925 | [1] | Seal |
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
