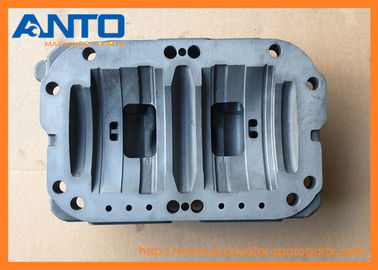

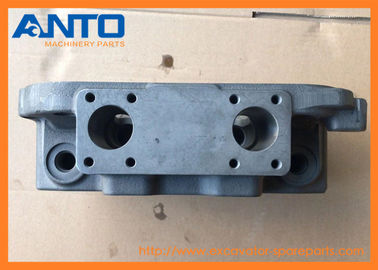

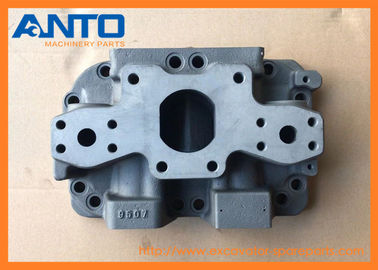

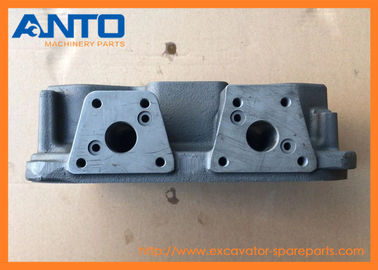

1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts

1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts
1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts 1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts 1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts 1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts

Large Image :  1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: EX100 EX120 EX135
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Category: Excavator Hydraulic Parts Machine Model: EX100 EX120 EX135
Parts No.: 1020401 Parts Name: Pump Head
Warranty: 6/12 Months Package: Standard Export Carton
High Light:

hydraulic main pump

,

hydraulic pump unit



  • 1020401 Pump Head Used For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts




  • Spec Sheet



Excavator spare parts name Pump head
Equipment Model EX100 EX120 EX135
Parts Category Excavator hydraulic pump parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days




  • Application

EX100-5 EX100-5 JPN EX100M-5 EX120-5 EX120-5 JPN EX120-5HG EX120-5LV JPN EX120-5X EX120-5Z EX120SS-5 EX130H-5 EX130H-5 JPN EX130K-5 EX135UR EX135UR-5 EX135US-5 EX135USR EX135USRK EX140US-5 Hitachi





  • Parts Diagram


1020401 Pump Head For Hitach EX120-5 EX135 Excavator Hydraulic Pump Parts 0

Pos. Part No Qty Parts name Comments
  +++++++ [1] PUMP;UNIT 9151424
1 1020513 [1] CASING;PUMP
3 2036963 [1] DISC;DRIVING
4 2036965 [1] DISC;DRIVING
6 4339254 [2] BRG.;ROL.
7 4348299 [2] RING
8 4338325 [2] BRG.;ROL.
9 4180790 [2] NUT;BRG.
10 4331993 [1] RING;THRUST
12 4340358 [2] SEAL;OIL
13 4086775 [2] RING;RETAINING
15 4233165 [2] PLUG
16 957366 [2] O-RING
18 9742464 [14] PISTON
21 4339296 [2] SHAFT;CENTER
22 4198956 [2] PIN
23 4180786 [2] SPRING;COMPRES.
25 2036958 [2] ROTOR
27 2036441 [1] VALVE
28 2037013 [1] VALVE
29 4179179 [4] PIN
31 3075855 [2] LINK
32 9724756 [4] LEVER
33 4179177 [4] PIN
34 4179176 [2] PIN
35 4146370 [12] RING;RETAINING
36 4200227 [2] PIN
41 1020401 [1] HEAD
42 3068226 [2] PISTON;SERVO
43 4330909 [2] PIN
44 4179838 [2] SCREW;SET
46 4355081 [2] O-RING
47 4330951 [2] STOPPER
50 4355080 [2] O-RING
51 4330950 [2] STOPPER
54 4180349 [20] O-RING
55 M340825 [16] BOLT;SOCKET
56 4514388 [16] WASHER;SPRING
57 3071500 [1] RING;BACK-UP
58 4099290 [2] PIN;SPRING
59 4345061 [1] O-RING
60 M341245 [10] BOLT;SOCKET
61 M341290 [2] BOLT;SOCKET
64 4355012 [2] SENSOR;PRES.
64A. 4365826 [1] O-RING
67 9134110 [2] PLUG
67A. 957366 [1] O-RING
69 -9153170 [1] REGULATOR <for transportation>
69 9151423 [2] REGULATOR I 9153170 <for assembly of machine>9151423
72 4515041 [4] PIN;SPRING
73 4343074 [4] O-RING
74 4348665 [2] O-RING
80 9134111 [2] PLUG
80A. 4509180 [1] O-RING







  • Description


Hydraulic pumps and valves are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


  • Advantage



1. The pump and valve parts are built to fit to the genuine excavator system.

2. The pump parts and valve are supplied strictly according to the genuine parts catalog.

3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
