Product Details:
Payment & Shipping Terms:
|

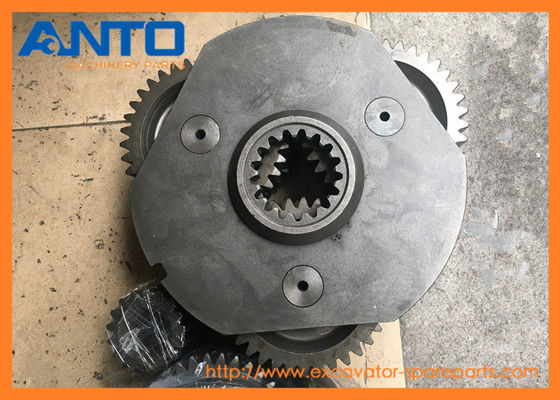

Product Name: | Planet Carrier | Excavator Model: | EC240B |
---|---|---|---|
Parts Number: | VOE14505737 | Warranty: | 6 Months |
Category: | Excavator Final Drive | Packing: | Standard Wooden Box |
Highlight: | final drive,excavator gearbox |
Excavator spare parts name | planet carrier |
Equipment Model | EC240B |
Parts Category | excavator final drive |
Spare parts Condition | Brand new |
MOQ of order(PCS, SET) | 1 |
Parts Availability | In stock |
Delivery Lead time | 1-3 days |
EC210C EC220D EC220E EC235D EC240B EC240C EC250D EC250E ECR235C ECR235D ECR235E FC2421C Vo-lvo.Heavy
Pos. | Part No | Qty | Parts name | Comments |
VOE14621718 | [1] | Travel gearbox | ||
1 | VOE14505739 | [1] | Housing | |
2 | VOE14621719 | [1] | Gear | |
3 | VOE14505742 | [1] | Seal | |
4 | VOE14505744 | [1] | Gear | |
5 | VOE14505745 | [1] | Retainer | |
6 | VOE14575734 | [1] | Flexible coupling | |
7 | SA9541-02032 | [1] | Retaining ring | |
8 | VOE14575733 | [1] | Gear | |
9 | VOE14621720 | [1] | Cover | |
10 | VOE14505737 | [1] | Planet carrier | |
11 | VOE14505751 | [1] | Planet carrier | |
12 | VOE14505756 | [8] | Washer | |
13 | VOE14505757 | [4] | Pin | |
14 | VOE14505755 | [4] | Planetary gear | |
15 | VOE14505754 | [2] | Ring retainer | |
16 | VOE14505753 | [1] | Ring | |
17 | VOE14505752 | [1] | Gear | |
18 | SA9325-06012 | [4] | Spring pin | |
19 | SA7117-30320 | [4] | Needle bearing | |
20 | VOE14505738 | [1] | Planet carrier | |
21 | VOE14505746 | [1] | Planet carrier | |
22 | VOE14505748 | [8] | Washer | |
23 | VOE14505749 | [4] | Pin | |
24 | VOE14505747 | [1] | Planetary gear | |
25 | VOE14505753 | [1] | Ring | |
26 | VOE951993 | [4] | Spring pin | |
27 | SA7117-38520 | [4] | Needle bearing | |
28 | VOE14507345 | [1] | Shim | |
29 | VOE14505743 | [1] | Seal | |
30 | VOE983505 | [2] | O-ring | |
31 | VOE14577793 | [2] | Plug | |
32 | VOE984370 | [20] | Hex. socket screw | |
33 | VOE983919 | [12] | Hex. socket screw | |
34 | VOE997963 | [12] | Hexagon screw | |
35 | VOE955925 | [12] | Spring washer | |
36 | VOE14556703 | [2] | Bearing | |
37 | SA7117-15230 | [1] | Pad |
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
