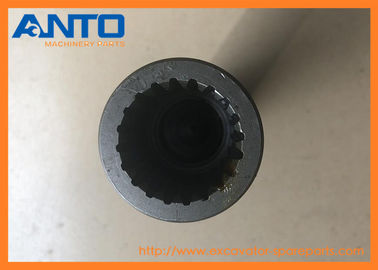

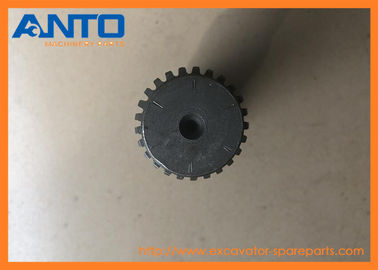

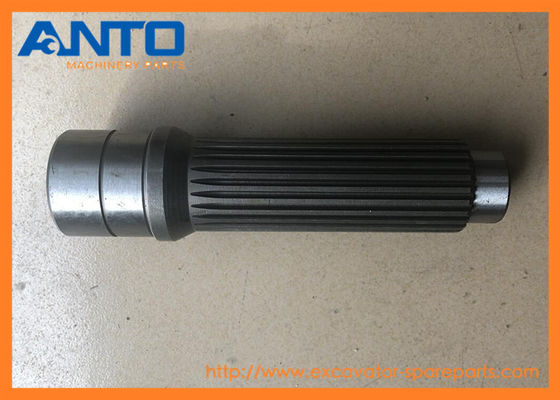

LB00545 CX240B CX210B Motor Shaft For Excavator Travel Motor Parts

Large Image : LB00545 CX240B CX210B Motor Shaft For Excavator Travel Motor Parts

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	CX210B CX240B

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Excavator Travel Motor Parts	Machine Model:	CX210B CX240B
Parts No.:	LB00545	Parts Name:	Travel Motor Shaft
Warranty:	3/6 Months	Package:	Standard Export Carton
Highlight:	final drive motors , hydraulic swing motor

LB00545 CX240B CX210B Motor Shaft Used For Excavator Travel Motor Parts

Spec Sheet

Excavator spare parts name	travel motor shaft
Equipment Model	CX210B CX240B
Parts Category	Excavator travel motor parts
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

HEAVY EQUIPMENT CX160B CX160C CX160D LC CX210 CX210B CX210BLR CX210BNLC CX210C LC CX210C LR CX210C NLC CX210D LC CX210D LC LR CX210D NLC CX210LR CX210N CX225SR CX235C SR CX240 CX240B CX240BLR CX240LR CX250C CX250D LC CX250D LC LR

Parts Diagram

Pos.	Part No	Qty	Parts name	Comments
. .	KRA1426	[1]	MOTO-REDUCTION GEAR	SUM Travel; Incl. 2 - 93; Also Incl. Parts On Figure(s) 06-02, 06-03 Superseded by part number: KRA10120
. .	KRA1860	[1]	MOTO-REDUCTION GEAR	SUM Travel; Incl. 2 - 93; Also Incl. Parts On Figure(s) 06-02, 06-03 Superseded by part number: KRA10120
2	NSS	[1]	NOT SOLD SEPARAT	CON Housing
4	NSS	[1]	NOT SOLD SEPARAT	CON Plate
21	160565A1	[2]	VALVE	SUM Incl. 22 - 39; Replaces LJ00743
22	NSS	[1]	NOT SOLD SEPARAT	CON Sleeve, Coupling
23	NSS	[1]	NOT SOLD SEPARAT	CON Poppet, Valve
24	NSS	[1]	NOT SOLD SEPARAT	CON Seat, Valve
25	NSS	[1]	NOT SOLD SEPARAT	CON Seat, Spring
26	NSS	[1]	NOT SOLD SEPARAT	CON Spring
27	NSS	[1]	NOT SOLD SEPARAT	CON Plug
28	155225A1	[1]	O-RING	SUM
29	NSS	[1]	NOT SOLD SEPARAT	CON Guide
30	NSS	[1]	NOT SOLD SEPARAT	CON Piston
31	154495A1	[1]	O-RING	SUM
32	153977A1	[2]	BACK-UP RING	SUM
33	NSS	[1]	NOT SOLD SEPARAT	CON Spring
34	NSS	[1]	NOT SOLD SEPARAT	CON Seat, Spring
35	165955A1	[1]	O-RING	SUM
36	NSS	[1]	NOT SOLD SEPARAT	CON Setscrew
37	160293A1	[1]	NUT	SUM
38	154479A1	[1]	O-RING	SUM
39	153964A1	[2]	BACK-UP RING	SUM
42	NSS	[1]	NOT SOLD SEPARAT	CON Spool
43	NSS	[1]	NOT SOLD SEPARAT	CON End
44	TJ00203	[1]	FILTER	SUM Superseded by part number: 160197A1
45	154447A1	[1]	O-RING	SUM
46	154443A1	[1]	O-RING	SUM
47	153940A1	[1]	BACK-UP RING	SUM
48	154061A1	[1]	BACK-UP RING	SUM
49	160545A1	[1]	RING, SNAP	SUM RING SNAP
55	NSS	[1]	NOT SOLD SEPARAT	CON Plug
59	161773A1	[4]	PLUG	SUM
60	154467A1	[4]	O-RING,10.8mm ID x 2.4mm Width	SUM
64	LB00545	[1]	SHAFT	SUM
65	LS00128	[1]	MANIFOLD VALVE	SUM Incl. 66 -74 Superseded by part number: LS002620
66	NSS	[1]	NOT SOLD SEPARAT	CON Block
67	NSS	[9]	NOT SOLD SEPARAT	CON Piston Assy
68	NSS	[1]	NOT SOLD SEPARAT	CON Holder
69	NSS	[1]	NOT SOLD SEPARAT	CON Coupling
70	160103A1	[1]	RING, SNAP	SUM RING SNAP
71	160203A1	[1]	SPRING SEAT	SUM
72	160590A1	[1]	SPRING	SUM
73	158113A1	[1]	COLLAR	SUM
74	155631A1	[3]	COTTER PIN	SUM
75	LR00581	[1]	PLATE	SUM
76	155950A1	[2]	BALL	SUM
77	NSS	[2]	NOT SOLD SEPARAT	CON
78	LB00546	[1]	BEARING,50mm ID x 90mm OD x 20mm W	SUM
79	LB00547	[1]	BEARING,35mm ID x 72mm OD x 17mm W	SUM
80	155578A1	[1]	PIN	SUM COTTER PIN
81	862-14035	[10]	HEX SOC SCREW,M14 x 35mm, Cl 12.9	SUM Superseded by part number: 108R014Y035R
82	LE00779	[1]	OIL SEAL	SUM
83	LR00582	[3]	PLATE	SUM
84	165696A1	[2]	PLATE	SUM
85	LJ00746	[1]	PISTON	SUM
86	165720A1	[1]	OIL SEAL	SUM
87	165721A1	[1]	SEALING RING	SUM
88	156090A1	[8]	SPRING	SUM
89	160097A1	[4]	COTTER PIN	SUM
90	160592A1	[2]	SPRING	SUM
91	160330A1	[1]	PORT	SUM
92	154463A1	[4]	O-RING	SUM
93	155220A1	[1]	O-RING	SUM
. .	LZ00378	[1]	SEAL KIT	SUM Incl. 28, 31, 32, 38, 39, 45 - 48, 82, 86, 87, 92, 93, Also Includes Parts on Figure 06-03
. .	LZ00380	[1]	REPAIR KIT	SUM Incl. 2, 77 Superseded by part number: LZ006910
. .	LZ00381	[1]	HYDRAULIC MOTOR	SUM Incl. 4, 55, 59, 60, Also Includes Parts on Figure 06-03 Superseded by part number: LZ006900

Description

Hydraulic pumps are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.

Advantage

1. The pump & Motor parts are built to fit to the genuine drive gearbox system.

2. The pump & Motor parts are supplied strictly according to the genuine parts catalog.

3. All the pump & Motor components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of pump & motor parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
