Product Details:
Payment & Shipping Terms:
|

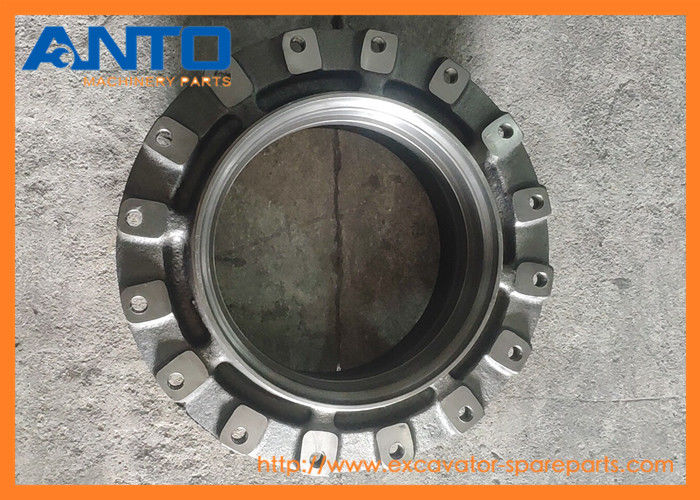

| Product Name: | Gearbox Housing | Excavator Model: | 322C 324D |
|---|---|---|---|
| Parts Number: | 169-5608 | Warranty: | 6 Months |
| Category: | Excavator Final Drive | Packing: | Standard Wooden Box |
| Highlight: | final drive,excavator gearbox |
||
| Excavator spare parts name | Gearbox housing |
| Equipment Model | 322C 324D |
| Parts Category | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
EXCAVATOR 322C 322C FM 324D 324D L 324D LN
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3E-2338 | [2] | PLUG-PIPE | |
| 2 | 094-0578 | [1] | PLATE (8-MM THK) | |
| 3 | 094-0579 | [1] | PLATE (9-MM THK) | |
| 4 | 094-0580 | [1] | PLATE (10-MM THK) | |
| 5 | 094-1528 | [12] | WASHER (53X84X1-MM THK) | |
| 6 | 168-8452 J | [2] | BALL BEARING | |
| 7 | 169-5589 | [1] | GEAR-SUN (24-TEETH) | |
| 8 | 169-5590 | [1] | GEAR-SUN (24-TEETH) | |
| 9 | 169-5592 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 10 | 169-5593 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 11 | 169-5594 | [1] | GEAR-RING (65-TEETH) | |
| 12 | 169-5601 | [3] | SHAFT-PLANETARY | |
| 13 | 169-5602 | [3] | SHAFT-PLANETARY | |
| 14 | 169-5608 J | [1] | HOUSING | |
| 15 | 171-9297 | [6] | WASHER (34.3X62X1-MM THK) | |
| 16 | 191-2569 | [3] | BEARING AS (CAGED ROLLER) | |
| 17 | 191-2570 | [6] | BEARING AS (CAGED ROLLER) | |
| 18 | 191-2571 | [1] | CARRIER-PLANETARY | |
| 19 | 191-2674 | [1] | GEAR-SUN (25-TEETH) | |
| 20 | 191-2675 | [3] | GEAR-PLANETARY (20-TEETH) | |
| 21 | 191-2676 | [1] | GEAR-RING (72-TEETH) | |
| 22 | 191-2677 | [3] | BEARING AS (CAGED ROLLER) | |
| 23 | 191-2678 | [1] | CARRIER AS | |
| 24 | 199-4503 | [1] | COVER | |
| 25 | 207-1571 J | [1] | SEAL GP-DUO-CONE | |
| 214-3570 | [2] | RING-TORIC | ||
| 26 | 227-6117 J | [1] | HOUSING-MOTOR | |
| 27 | 227-6118 J | [1] | RETAINER | |
| 28 | 227-6119 | [1] | CARRIER-PLANETARY | |
| 29 | 227-6123 J | [2] | DOWEL | |
| 30 | 227-6124 J | [2] | PLATE-WASHER | |
| 31 | 093-1731 | [2] | RING-RETAINING | |
| 32 | 095-0891 | [6] | PIN-SPRING | |
| 33 | 096-0433 | [3] | RING-RETAINING | |
| 34 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 35 | 171-9298 | [1] | SEAL-O-RING | |
| 36 | 179-8733 M | [16] | BOLT (M20X2.5X170-MM) | |
| 37 | 7M-8485 | [2] | SEAL-O-RING | |
| 38 | 7Y-0595 | [3] | SPACER (58X79.6X6-MM THK) | |
| 39 | 8T-0293 JM | [4] | BOLT (M12X1.75X20-MM) | |
| 40 | 8T-4123 | [16] | WASHER (3.62X5.75X0.375-MM THK) | |
| 41 | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 227-6134 J | [1] | KIT-HOUSING (FINAL DRIVE) | ||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART |
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
Contact Person: Mr. Paul
Tel: 0086-15920526889
Fax: +86-20-89855265
