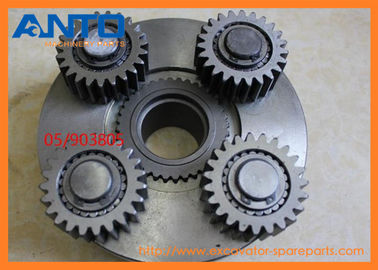

05/903805 Planet Gear Reduction Carrier Set 1st Used For JCB JS200 JS220 Excavator Final Drive Parts

Large Image : 05/903805 Planet Gear Reduction Carrier Set 1st Used For JCB JS200 JS220 Excavator Final Drive Parts

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	JS220 JS200

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Product Name:	Planet Carrier No.1	Excavator Model:	JS200 220
Parts Number:	05/903805	Warranty:	6 Months
Category:	Excavator Final Drive	Packing:	Standard Wooden Box
Highlight:	final drive parts , final drive

05/903805 Planet Gear Reduction Carrier Set 1st Used For JCB JS200 JS220 Excavator Final Drive Parts

Spec Sheet

Excavator spare parts name	Planetary Carrier Assembly
Equipment Model	JS200 220
Parts Category	excavator final drive
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

Parts no.	Description	Machine series no.
05/903805	Gear reduction set 1st planet	JS190 01059363-01059363, 01224000-01224499 9802/5610
05/903805	Gear reduction set 1st planet	JS200 00705001-00707999 9802/5810
05/903805	Gear reduction set 1st planet	JS200 01018001-01020001, 01202500-01204022, 01503300-01504499, 01701500-01702499 9802/5820
05/903805	Gear reduction set 1st planet	JS200 01459000-01462006, 01610000-01612499, 01613000-01613999, 02062750-02063049, 02068788-02069288, 02124884-02125884 TIER 3 9802/5830
05/903805	Gear reduction set 1st planet	JS200LC 00704002-00705000 9802/5800
05/903805	Gear reduction set 1st planet	JS210 00705001-00707999 9802/5810
05/903805	Gear reduction set 1st planet	JS210 01018001-01020001, 01202500-01204022, 01503300-01504499, 01701500-01702499 9802/5820
05/903805	Gear reduction set 1st planet	JS210 01459000-01462006, 01610000-01612499, 01613000-01613999, 02062750-02063049, 02068788-02069288, 02124884-02125884 TIER 3 9802/5830
05/903805	Gear reduction set 1st planet	JS220 00705001-00707999 9802/5810
05/903805	Gear reduction set 1st planet	JS220 01018001-01020001, 01202500-01204022, 01503300-01504499, 01701500-01702499 9802/5820
05/903805	Gear reduction set 1st planet	JS220 01459000-01462006, 01610000-01612500, 01613000-01613999, 01766600-01766999, 02062750-02063049, 02068788-02069288, 02124884-02125884 TIER 3 9802/5830
05/903805	Gear reduction set 1st planet	JS220 HD 01018001-01020001, 01202500-01204022, 01503300-01504499, 01701500-01702499 9802/5820
05/903805	Gear reduction set 1st planet	JS220 L.Reach 01018001-01020001, 01202500-01204022, 01503300-01504499, 01701500-01702499 9802/5820
05/903805	Gear reduction set 1st planet	JS220 XD 01018001-01020001, 01202500-01204022, 01503300-01504499, 01701500-01702499 9802/5820
05/903805	Gear reduction set 1st planet	JS220LR 01459000-01462006, 01610000-01612500, 01613000-01613999, 02062750-02063049, 02068788-02069288, 02124884-02125884 TIER 3 9802/5830
05/903805	Gear reduction set 1st planet	JS220XD 01459000-01462006, 01610000-01612500, 01613000-01613999, 02062750-02063049, 02068788-02069288, 02124884-02125884 TIER 3 9802/5830
05/903805	Gear reduction set 1st planet	JS235 01459000-01462006, 01610000-01612499, 01613000-01613999, 02062750-02063049, 02068788-02069288, 02124884-02125884 TIER 3 9802/5830
05/903805	Gear reduction set 1st planet	JS235 HD 01018001-01020001, 01202500-01204022, 01503300-01504499, 01701500-01702499 9802/5820
05/903805	Gear reduction set 1st planet	JS240 00708501-00709199 9802/5860
05/903805	Gear reduction set 1st planet	JS260 00708501-00709199 9802/5860
05/903805	Gear reduction set 1st planet	JZ235 01234500-01235499, 02084498-02084558 9802/5600

Parts Diagram

Pos.	Part No	Parts name	QTY	Comments
A	JG0RA012	Motor traction unit	1
B	JRA0121	Gearbox	1
1	05/901963	Capscrew	10
2	05/903801	Cover set	1
3	05/903802	Plug breather	2
4	05/903803	Washer	2
5	05/901926	Pad thrust	1
6	05/902010	O Ring	1
6	05/903819	O Ring	1
7	05/903804	Gear sun	1
8	05/903805	Gear reduction set 1st planet	1
9	05/903806	Gear reduction set 2nd planet	1
10	05/903807	Circlip	5
11	05/903808	Gear planet	5
12	05/903809	Nut	1
13	05/903859	Housing with bearing	1
14	05/903811	Seal assembly	1
15	05/903812	Ring centering	1
16	05/903813	Hub	1
17	05/903814	O Ring	1
18	05/903815	Coupling Includedinitem00B	1
19	05/903816	Circlip Includedinitem00B	1
20	JRA0122	Motor track	1
21	05/903818	Screw	3
22	05/903814	O Ring Includedinitem00B	1
23	05/903838	Spacer	5

Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
