7Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For 330C 330D

7Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For  330C 330D
7Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For  330C 330D

Large Image :  7Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For 330C 330D

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 330C 330D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 100-2000
Detailed Product Description
Category: Excavator Final Drive Parts Excavator Model: 330C 330D
Parts No.: 7Y-0645 7Y-0731 199-4750 Material: Forged Iron, Steel
Warranty: 3/6 Month Package: Standard Export Carton
High Light:

final drive parts

,

final drive



  • 7Y-0645 7Y-0731 199-4750 Planetary Carrier AS Used For 330C 330D Excavator Final Drive Parts



  • Application



EXCAVATOR 328D LCR . 330C . 330C L . 330C MH . 330D . 330D L . 330D LN . 330D MH .
MOBILE HYD POWER UNIT 330D .





  • Parts Diagram



7Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For  330C 330D 0



The detailed spare parts drawing as below:



SIS INDIVIDUAL PARTS:

1.3E-2338[2] -
PLUG-PIPE
2.7Y-0639[1] -
GEAR-SUN (21-TEETH)
3.7Y-0642[1] -
GEAR-RING (63-TEETH)
4.7Y-0645[1] -
CARRIER
5.7Y-0659[3] -
GEAR-PLANETARY (22-TEETH)
6.7Y-0661[3] -
SHAFT-PLANETARY
7.7Y-0662[4] -
SHAFT-PLANETARY
8.7Y-0663[4] -
GEAR-PLANETARY (20-TEETH)
9.7Y-0667[1] -
RING-RETAINING
10.7Y-0673[1] -
GEAR-RING (73-TEETH)
11.7Y-0676[3] -
GEAR-PLANETARY (24-TEETH)
12.7Y-0731[1] -
CARRIER AS
7Y-0656[3] -
SHAFT-PLANETARY
13.7Y-1094 M[14] -
WASHER (66X102X1-MM THK)
14.7Y-5235 M[20] -
BOLT (M24X3X190-MM)
15.094-0577[1] -
PLATE (7-MM THK)
16.094-0578[1] -
PLATE (8-MM THK)
17.094-0579[1] -
PLATE (9-MM THK)
18.094-0580[1] -
PLATE (10-MM THK)
19.110-7231[1] -
GEAR-SUN (18-TEETH)
20.191-2521[1] -
GEAR-SUN (23-TEETH)
21.191-2526[1] -
COVER
22.196-4873[2] -
BEARING AS-BALL
23.199-4582[3] -
BEARING AS
24.199-4583[11] -
BEARING AS
25.199-4750[1] -
CARRIER-PLANETARY .
26.213-4737[1] -
SEAL GP-DUO-CONE
27.227-6100[1] -
RETAINER .
28.227-6101[2] -
PLATE-WASHER .
29.227-6102[2] -
DOWEL .
30.227-6197[1] -
HOUSING-MOTOR .
31.093-1731[1] -
RING-RETAINING
32.094-0584[6] -
WASHER (40.3X72X1-MM THK)
33.095-0891[7] -
PIN-SPRING
34.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
35.191-2645[1] -
COUPLING
36.199-4580[1] -
HOUSING .
37.2P-3628[1] -
SEAL-O-RING
38.7M-8485[2] -
SEAL-O-RING
39.7Y-0595[2] -
SPACER (58X79.6X6-MM THK)
40.7Y-0644[1] -
SPACER (163X190X8-MM THK)
41.8T-0293 M[2] -
BOLT (M12X1.75X20-MM)
42.8T-4167[20] -
WASHER-HARD (26X44X4-MM THK)
43.8T-4240[3] -
RING-RETAINING
44.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)
45.1U-8846 B-
SEALANT-GASKET

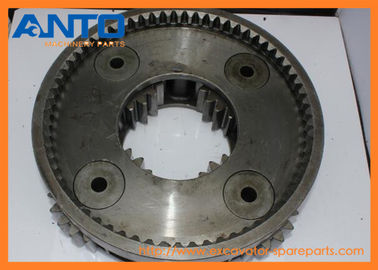

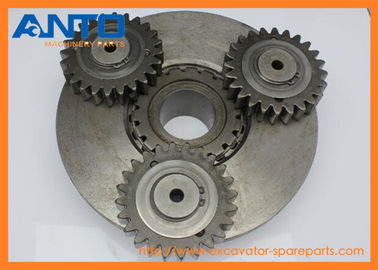

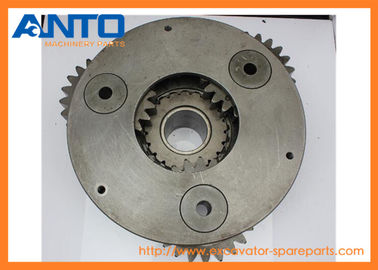

  • Product Photos

7Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For  330C 330D 17Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For  330C 330D 27Y-0645 7Y-0731 199-4750 Excavator Final Drive Parts , Planetary Carrier For  330C 330D 3







  • Description



The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.


  • Advantage



1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty



1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance



  • Packing & Delivery



* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
