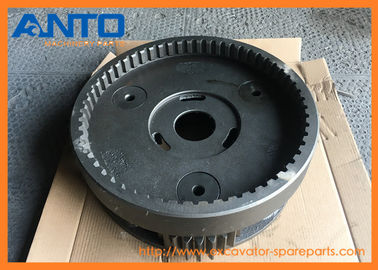

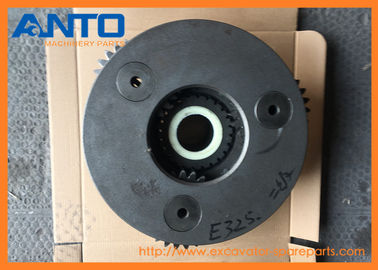

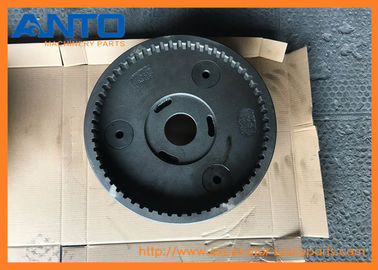

- 267-6799 169-5593 227-6119 Planetary Carrier AS Used For 322C 324D 325C 325D 329D Excavator Final Drive
The planetary carrier assembly could be applied to below models:
320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN
1.3E-2338[2] -
PLUG-PIPE
2.094-0578[1] -
PLATE (8-MM THK)
3.094-0579[1] -
PLATE (9-MM THK)
4.094-0580[1] -
PLATE (10-MM THK)
5.094-1528 M[12] -
WASHER (53X84X1-MM THK)
6.168-8452 J[2] -
BALL BEARING
7.169-5589[1] -
GEAR-SUN (24-TEETH)
8.169-5590[1] -
GEAR-SUN (24-TEETH)
9.169-5592[3] -
GEAR-PLANETARY (23-TEETH)
10.169-5593[3] -
GEAR-PLANETARY (23-TEETH)
11.169-5594[1] -
GEAR-RING (65-TEETH) .
12.169-5601[3] -
SHAFT-PLANETARY
13.169-5602[3] -
SHAFT-PLANETARY
14.169-5608 J[1] -
HOUSING .
15.171-9297[6] -
WASHER (34.3X62X1-MM THK)
16.191-2569[3] -
BEARING AS (CAGED ROLLER)
17.191-2570[6] -
BEARING AS (CAGED ROLLER)
18.191-2571[1] -
CARRIER-PLANETARY .
19.191-2674[1] -
GEAR-SUN (25-TEETH) .
20.191-2675[3] -
GEAR-PLANETARY (20-TEETH)
21.191-2676[1] -
GEAR-RING (72-TEETH)
22.191-2677[3] -
BEARING AS (CAGED ROLLER)
23.191-2678[1] -
CARRIER AS .
24.199-4503[1] -
COVER .
25.207-1571 J[1] -
SEAL GP-DUO-CONE
214-3570[2] -
RING-TORIC .
26.227-6117 J[1] -
HOUSING-MOTOR .
27.227-6118 J[1] -
RETAINER .
28.227-6119[1] -
CARRIER-PLANETARY .
29.227-6123 J[2] -
DOWEL .
30.227-6124 J[2] -
PLATE-WASHER
31.093-1731[2] -
RING-RETAINING
32.095-0891[6] -
PIN-SPRING
33.096-0433[3] -
RING-RETAINING
34.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
35.171-9298[1] -
SEAL-O-RING
36.179-8733 M[16] -
BOLT (M20X2.5X170-MM) .
37.7M-8485[2] -
SEAL-O-RING
38.7Y-0595[3] -
SPACER (58X79.6X6-MM THK)
39.8T-0293 JM[4] -
BOLT (M12X1.75X20-MM)
40.8T-4123[16] -
WASHER (3.62X5.75X0.375-MM THK)
41.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
