- PC200-7 PC200-8 Swing Carrier Assy 22U-26-21580 22U-26-21572 206-26-69112 Applied To Komatsu Swing Machinery Parts
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
| Excavator spare parts name |
Swing reducer gear parts |
| Equipment Model |
PC200-7 PC200-8 |
| Parts Category |
excavator swing gear |
| Spare parts Condition |
Brand new |
| MOQ of order(PCS, SET) |
1 |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |

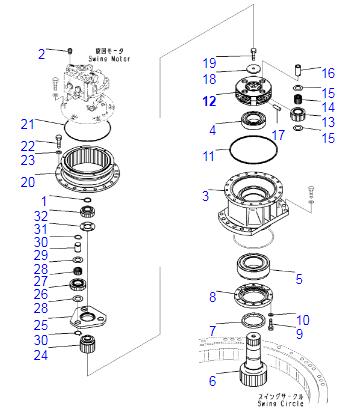

1.22U-26-21280[1]- Ring Komatsu ["SN: 50001-UP"] ancatalogs:["20Y2622270"] Weight: 0.001 kg.
2.07042-00312[1]- Plug, Taper Komatsu ["SN: 50001-UP"] ancatalogs:["0704210312"] Weight: 0.031 kg.
3.20Y-26-31120[1]- Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 68.8 kg.
4.20Y-26-22331[1]- Bearing Komatsu China ["SN: 50592-UP"] ancatalogs:["20Y2622330", "20Y2622430"] Weight: 3.28 kg.
4.20Y-26-22330[1]- Bearing Komatsu China ["SN: 50377-50591"] ancatalogs:["20Y2622331", "20Y2622430"] Weight: 3.28 kg.
5.20Y-26-22342[1]- Bearing Komatsu China ["SN: 50001-UP"] ancatalogs:["20Y2622340", "20Y2622440"] Weight: 9.6 kg.
6.206-26-69112[1]- Shaft Komatsu ["SN: 50294-UP"] ancatalogs:["2062669111"] Weight: 32.5 kg.
6.206-26-69111[1]- Shaft Komatsu ["SN: 50001-50293", "SCC: A2"] ancatalogs:["2062669112"] Weight: 32.5 kg.
7.20Y-26-22420[1]- Seal Komatsu China ["SN: 50001-UP"] ancatalogs:[] Weight: 0.3 kg.
8.20Y-26-22191[1]- Cover Komatsu ["SN: 50001-UP"] ancatalogs:["20Y2622190"] Weight: 4.6 kg.
9.01010-81045[12]- Bolt Komatsu ["SN: 50001-UP"] ancatalogs:["0101051045", "01010D1045"] Weight: 0.039 kg.
10.01643-31032[12]- Washer Komatsu ["SN: 50001-UP"] ancatalogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] Weight: 0.054 kg.
11.07000-15310[1]- O-ring Komatsu China ["SN: 50001-UP"] ancatalogs:["0700005310"] Weight: 0.035 kg.
12.22U-26-21580[1]- Carrier Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 8.7 kg.
13.22U-26-21540[4]- Gear Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 2.46 kg.
14.20G-26-11241[4]- Bearing Komatsu China ["SN: 50001-UP"] ancatalogs:["20G2611240", "20G2611410"] Weight: 0.24 kg.
15.20Y-27-21240[8]- Washer, Thrust Komatsu China ["SN: 50001-UP"] ancatalogs:[] Weight: 0.02 kg.
16.20Y-26-22250[4]- Pin Komatsu China ["SN: 50001-UP"] ancatalogs:[] Weight: 0.52 kg.
17.20Y-27-21280[4]- Pin Komatsu China ["SN: 50001-UP"] ancatalogs:[] Weight: 0.01 kg.
18.20Y-26-21240[1]- Plate Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 5.1 kg.
19.112-32-11211[1]- Bolt Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 0.09 kg.
20.22U-26-21551[1]- Gear Komatsu ["SN: 50001-UP"] ancatalogs:["22U2621551K2", "22U2621550", "R22U2621551"] Weight: 25.41 kg.
21.20K-22-11190[1]- O-ring Komatsu ["SN: 50001-UP"] ancatalogs:["20G2211190"] Weight: 0.02 kg.
22.01010-81440[18]- Bolt Komatsu ["SN: 50001-UP"] ancatalogs:["0101061440", "0101031440", "0101051440", "0104031440"] Weight: 0.073 kg.
23.01643-31445[18]- Washer, Flat Komatsu ["SN: 50001-UP"] ancatalogs:["0164301432"] Weight: 0.019 kg.
24.22U-26-21530[1]- Gear Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 5.8 kg.
25.22U-26-21572[1]- Carrier Komatsu ["SN: 50001-UP"] ancatalogs:["22U2621570"] Weight: 2.96 kg.
26.22U-26-21520[3]- Gear Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 1.54 kg.
27.20Y-26-21281[3]- Bearing Komatsu ["SN: 50001-UP"] ancatalogs:["20Y2621280", "20X2621240", "20Y2621510"] Weight: 0.1 kg.
28.22U-26-21230[6]- Washer, Thrust Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 1 kg.
29.22U-26-21210[3]- Pin Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 0.81 kg.
30.04064-03515[6]- Ring, Snap Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 0.005 kg.
31.22U-26-21250[1]- Washer, Thrust Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 1 kg.
32.22U-26-21510[1]- Gear Komatsu ["SN: 50001-UP"] ancatalogs:[] Weight: 1.56 kg.
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
