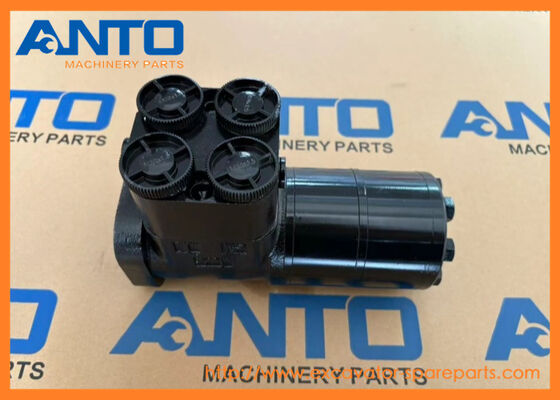

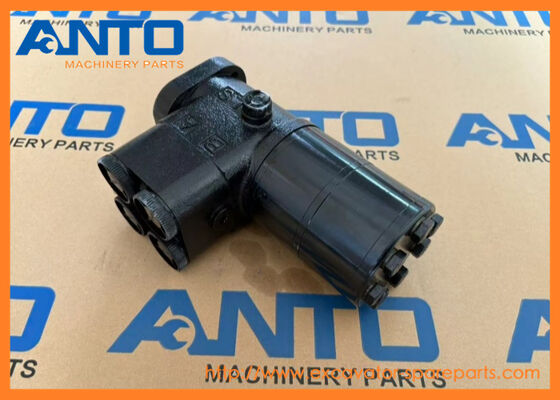

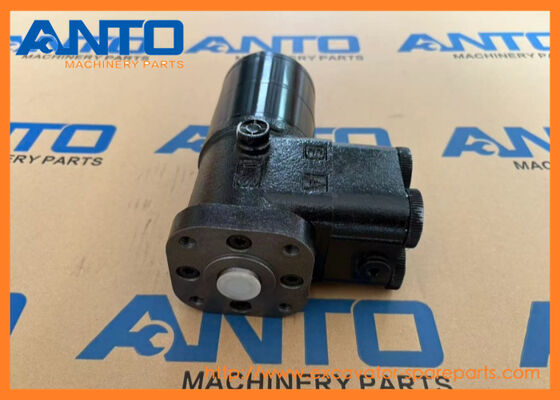

- 419-64-45101 4196445101 Steering Valve KOMATSU Wheel Loader Spare Parts For WA320 WA320PZ
| Name |
Steering Valve |
| Parts No |
419-64-45101 4196445101 |
| Machine Model |
WA320 WA320PZ |
| Category |
Rops Cab And Floor Frame Group |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Convert steering wheel rotation into hydraulic control signal It is the core orbitrol steering unit of the full hydraulic steering system. When the operator turns the steering wheel, this valve measures rotation angle and speed, then distributes pressurized hydraulic oil accordingly. |
| |
| 2.Direct hydraulic oil flow to steering cylinders It sends high-pressure hydraulic fluid to the left or right chamber of the steering cylinder, pushing the cylinder rod to swing the front wheels left or right, to realize machine turning. |
| |
| 3.Meter oil flow proportionally The valve controls oil volume matching steering wheel rotation. Small steering movement brings small wheel deflection; fast steering increases oil flow for quick response. |
| |
| 4.Emergency manual steering backup If the hydraulic pump fails or power is lost, the valve allows manual hydraulic feedback. The operator can still steer by turning the steering wheel mechanically for safety. |
| |
| 5.Stabilize steering pressure & absorb load fluctuation Built-in check valves prevent pressure backflow, reduce steering shock and wheel kickback caused by uneven ground impact, keeping steering smooth. |
WHEEL LOADERS WA320 WA320PZ Komatsu
- More other valve parts fit for KOMATSU machine
| 20Y-62-15651 VALVE |
| BATTERY, D275A, D375A, FRONT, WA150, WA200, WA320 |
| |
| 600-184-1350 VALVE,VACUATOR |
| AIR, BOOM,, CARRIER, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, D65EX, D65PX, D65WX, FRONT, GD555, GD655, GD675, HD325, HM250, HM300, HM400, PC220, PC240, PC290, PC78US, PC78UU, PC88MR, SAA6D107E, SAA6... |
| |
| 6731-61-2151 VALVE, PRESSURE RELIEF |
| 150A/FA, 4D102E, 6D102E, 850B, 870B, D32E, D38E, D39E, D51EX/PX, D61EX, D61PX, DCA, EGS120, GD650A, PC200, PC200LL, PC220, PC220LL, PC240, PC250, PC270, PC290, PC300, PC300HD, PC300LL, PC350, PC350HD,... |
| |
| 419-18-31562 VALVE ASS'Y |
| FRONT, WA320, WA320L, WA320PT, WA320PZ |
| |
| 418-64-15850 VALVE |
| 532, BATTERY, FRONT, WA150, WA150PZ, WA180, WA180L, WA180PT, WA200, WA200L, WA200PT, WA200PTL, WA200PZ, WA250, WA250L, WA250PT, WA250PZ, WA270, WA300, WA320, WA320L, WA320PT, WA320PZ |
| |
| 419-64-35430 VALVE ASS'Y |
| FRONT, WA320, WA320L, WA320PT, WA320PZ |
| |
| 418-62-H3170 VALVE |
| WA150PZ, WA320PZ |
| |
| 709-10-62101 VALVE ASS'Y,SUCTION AND SAFETY |
| 558, 568, FRONT, WA300, WA320, WA320L, WA320PT, WA350, WA380, WA470 |
| |
| 42R-17-H0R98 VALVE HOUSING |
| WA100M, WA320, WA320PZ, WA80, WA90 |
| |
| M710170037080 VALVE |
| EC105V, EC105VS, EC105Z, EC105ZS, EC170V, EC170Z, EC170ZS, EC20ZS, EC210Z, EC25Z, EC25ZS, EC260V, EC260Z, EC35V, EC35VS, EC35Z, EC35ZS, EC35ZSB, EC50V, EC50VS, EC50Z, EC50ZS, EC50ZSB, EC75Z, EC75ZS |
| |
| 1241 095 H1 VALVE, CHECK |
| KOMATSU |
| |
| 22P-62-13400 VALVE ASS'Y |
| BOOM,, CARRIER, PC70, PC78US, PC78UU, PC88MR, PW98MR |
| |
| 22P-62-13410 VALVE ASS'Y |
| BOOM,, CARRIER, PC70, PC78US, PC78UU, PC88MR, PW98MR |
| |
| 6131-42-4120 VALVE,INTAKE |
| S4D105 |
| |
| 708-2L-06680 VALVE ASS'Y |
| PC220, PC240, PC270, PC290 |
| |
| 42C-15-15012 VALVE ASS'Y |
| WA1200 |
| |
| 42C-15-15013 VALVE ASS'Y |
| WA1200 |
| |
| 42C-15-15011 VALVE ASS'Y |
| WA1200 |
| |
| 20K-60-31330 VALVE ASSEMBLY |
| PW200, PW220 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
419-64-45101 |
[1] |
Orbitrol Steering Control Assembly Komatsu China |
|
| |
|
|
["SN: 70672-UP"] |
|
| 1 |
419-64-45100 |
[1] |
Orbitrol Steering Control Assembly Komatsu China |
|
| |
|
|
["SN: 70291-70671", "SCC: A2"] |
|
| 2 |
418-62-31412 |
[1] |
Nipple Komatsu China |
|
| |
|
|
["SN: 70291-UP"] |
|
| 3 |
419-62-41180 |
[1] |
Nipple Komatsu China |
|
| |
|
|
["SN: 70291-UP"] |
|
| 4 |
415-62-11560 |
[2] |
O-ring Komatsu |
0.002 kg. |
| |
|
|
["SN: 70291-UP"] |
|
| 5 |
02896-11015 |
[1] |
O-ring Komatsu |
0.21 kg. |
| |
|
|
["SN: 70291-UP"] analogs:["21D0969770", "855051016"] |
|
| 6 |
419-62-41270 |
[1] |
Elbow Komatsu China |
|
| |
|
|
["SN: 70672-UP"] |
|
| 6 |
56B-61-13650 |
[1] |
Elbow Komatsu |
0.5 kg. |
| |
|
|
["SN: 70291-70671"] |
|
| 7 |
416-62-11480 |
[1] |
O-ring Komatsu China |
|
| |
|
|
["SN: 70291-UP"] analogs:["3631731380"] |
|
| 8 |
02896-11009 |
[1] |
O-ring Komatsu China |
0.01 kg. |
| |
|
|
["SN: 70291-UP"] analogs:["R0289611009", "0286911009"] |
|
| 9 |
419-62-41110 |
[1] |
Block Komatsu China |
|
| |
|
|
["SN: 70291-UP"] |
|
| 10 |
07000-12022 |
[4] |
O-ring Komatsu |
0.002 kg. |
| |
|
|
["SN: 70291-UP"] |
|
| 11 |
01252-61050 |
[2] |
Bolt, Hexagon Socket Head Komatsu China |
|
| |
|
|
["SN: 70291-UP"] |
|
| 12 |
419-62-41250 |
[2] |
Elbow Komatsu China |
|
| |
|
|
["SN: 70291-UP"] |
|
| 13 |
07002-12034 |
[2] |
O-ring Komatsu China |
0.94 kg. |
| |
|
|
["SN: 70291-UP"] analogs:["0700002034", "0700202034", "0700012034"] |
|
| 14 |
419-62-48322 |
[-1] |
Hose Komatsu China |
|
| |
|
|
["SN: UP"] |
|
| 15 |
419-62-48332 |
[-1] |
Hose Komatsu China |
|
| |
|
|
["SN: UP"] |
|
| 16 |
419-62-41190 |
[-1] |
Hose Komatsu China |
|
| |
|
|
["SN: UP"] |
|
| 17 |
419-62-43650 |
[-1] |
Hose Komatsu China |
|
| |
|
|
["SN: UP"] |
|
| |
419-62-48312 |
[-1] |
Hose Komatsu China |
|
| |
|
|
["SN: UP"] |$19. |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
