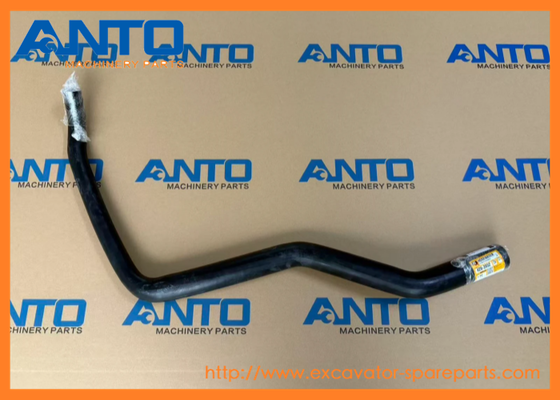

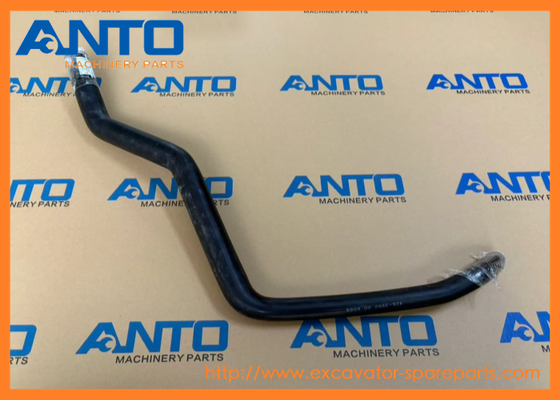

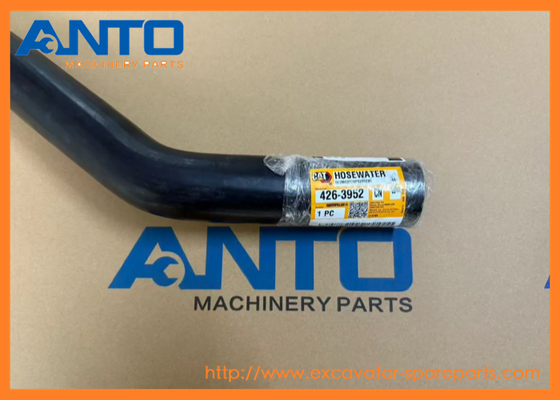

- 426-3952 4263952 Water Hose Excavator Spare Parts Fitting For 349D L C13
| Name |
Water Hose |
| Parts No |
426-3952 4263952 |
| Machine Model |
349D L |
| Category |
Cooling Part |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Coolant circulation channel: It serves as a pipeline to transmit engine coolant between the engine, radiator and other cooling components, delivering heat-carrying coolant to realize heat exchange. |
| |
| 2.Sealing & leak prevention: Constructed with reinforced rubber layers, it maintains a sealed flow path to avoid coolant leakage under working pressure and vibration. |
| |
| 3.Vibration absorption & buffer: Absorbs engine vibration and slight displacement during equipment operation, reducing stress on connected metal fittings and preventing pipe cracking. |
| |
| 4.Temperature resistance: Withstands high temperature of circulating coolant and fluctuating working temperature, ensuring stable cooling system operation. |
- More other hose parts fit for C A T machine
| 1241037 HOSE AS |
| 325B L, 330B, 330B L, W330B |
| |
| 1240937 HOSE AS |
| 330B, 330B L |
| |
| 1319609 HOSE AS |
| 330B, 330B L |
| |
| 2181227 HOSE AS |
| 328D LCR, 365B, 365B II, 365B L, 365C, 365C L |
| |
| 2125330 HOSE AS |
| 330C, 365B, 365B II, 365B L, 365C L MH |
| |
| 2125328 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L |
| |
| 1960498 HOSE AS |
| 325C, 330C, 330C FM, 330C L |
| |
| 2270634 HOSE AS |
| 385C, 385C FS, 385C L |
| |
| 2666216 HOSE |
| 330D L |
| |
| 1021052 HOSE AS |
| 330 L |
| |
| 0875606 HOSE AS |
| 325, 325 L, 325 LN |
| |
| 2080205 HOSE AS |
| 345B L |
| |
| 9R7367 HOSE AS |
| 438, AP-1000B, AP-1055D, AP-900B, BG-2455D |
| |
| 9R7366 HOSE AS |
| 438, M312 |
| |
| 9R6776 HOSE AS |
| 245B, 245D, 436, 438, D10R, D10T, D10T2, D9N, D9R, D9T |
| |
| 9R7851 HOSE AS |
| 436, 438 |
| |
| 9R7850 HOSE AS |
| 436, 438 |
| |
| 9R9394 HOSE AS |
| 426B, 428B |
| |
| 9R8955 HOSE AS |
| 428B, 515, 517, 525, 527 |
| |
| 6L3942 HOSE |
| 594, 631E, 65, 650B, 657B, 657E, 65C, 70C, 930, 930R, D333A, D342, D342C, D4D, D4E, D5B, D6H, D6H XL, D7H, D8L, D8N, D9G, D9H, D9N, D9R, G353D, G379, G398, G399 |
| |
| 6L4570 HOSE |
| 65, 65C, 70C, 773D, 775D, 797, 797B, 816B, 963, 963B, 966D, 973, D342, D342C, D353C, D6H, D6H XL, D6R, D7G, D7G2 |
| |
| 7T0268 HOSE AS |
| 65, D11N |
| |
| 8Y7180 HOSE AS |
| 416 |
| |
| 8Y7179 HOSE AS |
| 416, M312, M315 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
096-4035 |
[3] |
CLIP |
|
| 2 |
230-2835 |
[1] |
TUBE AS |
|
| 3 |
230-2854 |
[1] |
HOSE-RADIATOR (LOWER) |
|
| 4 |
245-9206 |
[1] |
TANK AS-EXPANSION (INCLUDES COOLANT LEVEL SWITCH) |
|
| |
171-3370 |
[1] |
CAP AS (COOLANT OVERFLOW) |
|
| |
204-0920 |
[1] |
CAP AS (COOLANT FILL) |
|
| 5 |
281-3622 |
[1] |
PLATE |
|
| 6 |
326-3977 |
[1] |
BRACKET AS |
|
| 7 |
326-3978 |
[1] |
BAND AS |
|
| 8 |
351-0262 |
[1] |
ELBOW AS |
|
| |
6V-5063 |
[1] |
SEAL-O-RING |
|
| |
245-1400 |
[1] |
ELBOW |
|
| 9 |
356-9999 |
[1] |
SHROUD AS-FAN |
|
| 10 |
372-8882 Y |
[1] |
MODULE GP-COOLING |
|
| 11 |
376-7314 |
[1] |
ADAPTER-ELBOW |
|
| 12 |
426-3951 |
[1] |
HOSE-RADIATOR (LOWER)(LOWER) |
|
| 13 |
426-3952 |
[1] |
HOSE-WATER |
|
| 14 |
426-3953 |
[3] |
SPACER |
|
| 15 |
426-3954 |
[2] |
LINER |
|
| 16 |
426-3955 |
[1] |
TANK GP-COOLANT |
|
| |
332-4175 |
[1] |
CAP AS-RADIATOR |
|
| 17 |
426-3958 |
[1] |
HOSE-RADIATOR (UPPER) |
|
| 18 |
092-6629 |
[1] |
ADAPTER |
|
| 19 |
095-1386 |
[4] |
CLAMP-HOSE |
|
| 20 |
095-1390 |
[1] |
CLAMP-HOSE |
|
| 21 |
127-4471 |
[1] |
CLAMP-HOSE |
|
| 22 |
3P-1932 |
[1] |
ADAPTER |
|
| 23 |
3S-2093 |
[8] |
STRAP-CABLE |
|
| 24 |
5D-1026 |
[1] |
CLAMP-BAND |
|
| 25 |
5P-4116 |
[2] |
WASHER-HARD (8.8X20.5X2-MM THK) |
|
| 26 |
5P-4325 |
[1] |
CLIP (LOOP) |
|
| 27 |
6V-5386 |
[1] |
CLIP |
|
| 28 |
6V-6609 |
[2] |
SEAL-O-RING |
|
| 29 |
6V-9027 |
[1] |
SEAL-O-RING |
|
| 30 |
7I-2673 |
[1] |
STRAP-CABLE |
|
| 31 |
5P-6126 D |
|
SEAL (0.11-M) |
|
| 32 |
447-1719 M |
[4] |
BOLT (M20X2.5X60-MM) |
|
| 33 |
7X-7729 |
[9] |
WASHER (11X25X3-MM THK) |
|
| 34 |
8T-4121 |
[3] |
WASHER-HARD (11X21X2.5-MM THK) |
|
| 35 |
451-2176 |
[4] |
WASHER-HARD (22X35X3.5-MM THK) |
|
| 36 |
8T-4136 M |
[25] |
BOLT (M10X1.5X25-MM) |
|
| 37 |
8T-4137 M |
[1] |
BOLT (M10X1.5X20-MM) |
|
| 38 |
8T-4182 M |
[3] |
BOLT (M10X1.5X45-MM) |
|
| 39 |
8T-4189 M |
[2] |
BOLT (M8X1.25X20-MM) |
|
| 40 |
8T-4192 M |
[1] |
BOLT (M12X1.75X25-MM) |
|
| 41 |
8T-4195 M |
[3] |
BOLT (M10X1.5X30-MM) |
|
| 42 |
8T-4222 |
[20] |
WASHER-PLATED (11X32X2.5-MM THK) |
|
| 43 |
8T-4223 |
[1] |
WASHER-HARD (13.5X25.5X3-MM THK) |
|
| 44 |
8T-4984 |
[6] |
CLAMP-HOSE |
|
| 45 |
9D-3769 |
[1] |
GROMMET |
|
| 46 |
5P-0767 E |
|
HOSE (20-CM) |
|
| 47 |
423-1982 G |
|
HOSE (17.4-IN) |
|
| 47A. |
423-1982 G |
|
HOSE (14.2-IN) |
|
| 48 |
7Y-1976 E |
|
HOSE-WATER (232-CM) |
|
| 48A. |
7Y-1976 E |
|
HOSE-WATER (54-CM) |
|
| |
D |
|
ORDER BY THE METER |
|
| |
E |
|
ORDER BY THE CENTIMETER |
|
| |
G |
|
ORDER BY THE INCH |
|
| |
M |
|
METRIC PART |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
