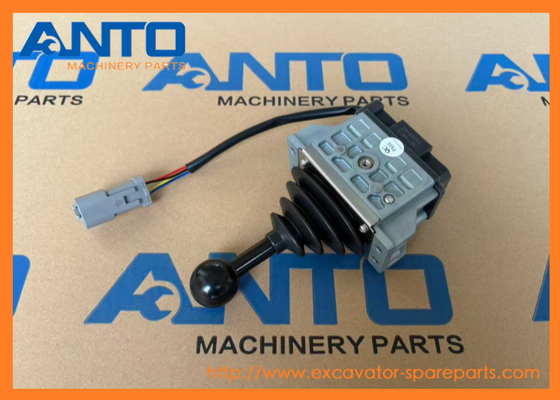

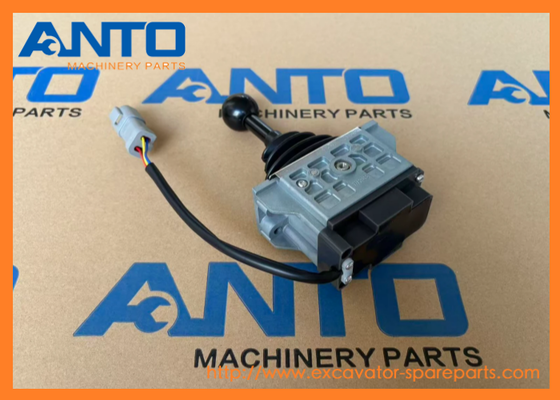

- 307-4671 3074671 Control Handle Wheel Loader Spare Parts Fit For C11 962H 966H
| Appliion |
Excavator, Mobile Hydraulic Power Unit |
| Name |
Control Handle |
| Parts No |
307-4671 3074671 |
| Machine Model |
950H 950K 962H 962K 966H 966K 972H |
| Engine Model |
C6.6 C11 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Operation signal input: It is a manual control handle for construction machinery. The operator pushes or pulls the handle to send control signals to the hydraulic pilot system or controller, to control machine movements. |
| |
| 2.Hydraulic pilot control: Adjusts pilot oil flow and direction, to actuate the main hydraulic valve. It controls actions such as boom lifting/lowering, arm in/out, bucket opening/closing and machine swing. |
| |
| 3.Motion speed regulation: The moving stroke of the handle changes the pilot pressure, so it can adjust the operating speed of corresponding hydraulic actuators. |
| |
| 4.Operator ergonomic control: Provides comfortable gripping and smooth operation, reduces fatigue during long working hours. |
| |
| 5.Safety interlock (if equipped): Some versions come with a safety lock function. When the lock is engaged, hydraulic output will be cut off to prevent unintended machine movement. |
INTEGRATED TOOLCARRIER IT62H
TRACK LOADER 953D 963D 973D
WHEEL LOADER 950H 950K 962H 962K 966H 966K 972H 972K 980H 980K 980K HLG 986H 988H 992K 993K 994H
- More other control handle parts fit for C A T machine
| 3317539 CONTROL GP-UNPROGRAMMED |
| 120M, 12M, 2470C, 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D... |
| |
| 3722905 CONTROL GP-ELECTRONIC |
| 120K, 12K, 12M, 140G, 140K, 140M, 140M 2, 14M, 160K, 160M, 160M 2, 16M, 2290, 2390, 2391, 2491, 24M, 2590, 345D L, 511, 521, 521B, 522, 522B, 525C, 532, 535C, 541, 541 2, 545C, 551, 552, 552 2, 583T, ... |
| |
| 2622879 CONTROL GP-UNPROGRAMMED |
| 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D... |
| |
| 3668821 CONTROL GP-UNPROGRAMMED |
| 307D, 308D, 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 314D CR, 314D LCR, 315D L, 318D L, 318D2 L, 319D L, 319D LN, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 32... |
| |
| 2218874 CONTROL GP-UNPROGRAMMED |
| 308D, 312D, 315D L, 319D, 319D LN, 320D FM RR, 320D L, 320D LRR, 323D L, 323D LN, 324D L, 325D L, 329D L, 330D L, 345C |
| |
| 3001123 CONTROL GP-ENGINE ELECTRONIC |
| 345C MH, 345D, 345D L, 349D, 349D L |
| |
| 3469591 CONTROL GP-JOYSTICK |
| 336D L |
| |
| 2705623 CONTROL GP-MACHINE |
| 345C |
| |
| 3095690 CONTROL GP-UNPROGRAMMED |
| 325D FM, 325D FM LL, 325D MH |
| |
| 3668822 CONTROL GP-UNPROGRAMMED |
| 374D L, 390D, 390D L |
| |
| 3073993 CONTROL GP-HANDLE |
| 336E H, 336E LH, 374F L, 390F L |
| |
| 2825487 CONTROL AS |
| 330D L, 345C |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
170-1821 |
[1] |
SWITCH AS-PUSH BUTTON (HORN) |
|
| |
6F-0253 |
[1] |
LOCKWASHER |
|
| |
186-3735 |
[2] |
PIN-CONNECTOR (16-GA TO 18-GA) |
|
| |
172-3511 |
[1] |
NUT (5/8-24-THD) |
|
| 2 |
307-4671 CY |
[1] |
CONTROL GP-HANDLE (PILOT CONTROL)(TILT) |
|
| 2A. |
307-4671 CY |
[1] |
CONTROL GP-HANDLE (PILOT CONTROL)(LIFT) |
|
| 2B. |
307-4671 CY |
[1] |
CONTROL GP-HANDLE (PILOT CONTROL)(AUXILIARY) |
|
| 3 |
249-5602 |
[1] |
GUARD-SWITCH |
|
| 4 |
251-1197 |
[1] |
SWITCH AS-ROCKER (HYDRAULIC LOCKOUT) |
|
| 5 |
263-1493 |
[1] |
SWITCH GP-PUSH BUTTON (DOWNSHIFT) |
|
| |
6F-0253 |
[1] |
LOCKWASHER |
|
| |
9X-3402 |
[3] |
SOCKET-CONNECTOR (16-GA TO 18-GA) |
|
| |
|
|
-OR- |
|
| |
126-1768 |
[3] |
SOCKET-CONNECTOR (14-GA TO 16-GA) |
|
| |
155-2260 |
[1] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
|
|
(INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
|
| |
172-3511 |
[1] |
NUT (5/8-24-THD) |
|
| 6 |
285-9124 |
[1] |
HARNESS AS-OPERATOR CONTROLS (ELECTROHYDRAULIC CONTROL POD) |
|
| |
5P-0765 E |
|
HOSE (137-CM) |
|
| |
155-2260 |
[1] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
155-2270 |
[1] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
155-2271 |
[3] |
KIT-CONNECTING PLUG (4-PIN) |
|
| |
245-7434 |
[3] |
KIT-CONNECTING PLUG (10-PIN) |
|
| |
155-2255 |
[1] |
KIT-CONNECTING PLUG (12-PIN) |
|
| |
|
|
(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
|
| |
102-8803 |
[3] |
KIT-RECEPTACLE (3-PIN) |
|
| |
102-8804 |
[1] |
KIT-RECEPTACLE (4-PIN) |
|
| |
102-8801 |
[1] |
KIT-RECEPTACLE (12-PIN) |
|
| |
|
|
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
9X-3401 |
[15] |
PIN-CONNECTOR (16-GA TO 18-GA) |
|
| |
|
|
-OR- |
|
| |
126-1767 |
[15] |
PIN-CONNECTOR (14-GA TO 16-GA) |
|
| |
8T-8737 |
[15] |
PLUG-SEAL |
|
| |
185-1861 |
[23] |
SEAL-WIRE |
|
| |
9X-3402 |
[24] |
SOCKET-CONNECTOR (16-GA TO 18-GA) |
|
| |
|
|
-OR- |
|
| |
126-1768 |
[24] |
SOCKET-CONNECTOR (14-GA TO 16-GA) |
|
| |
235-4123 |
[21] |
TERMINAL (18-GA TO 20-GA) |
|
| |
6V-2722 D |
|
TUBE-HEAT SHRINK (25.4-MM DIA)(0.1-M) |
|
| |
119-3662 E |
|
TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) |
|
| |
125-7875 E |
|
TUBE-HEAT SHRINK (7.44-MM DIA)(30-CM) |
|
| |
155-2258 |
[1] |
WEDGE-PLUG LOCK (12-PIN) |
|
| |
3E-3371 |
[2] |
WEDGE-RECEPTACLE LOCK (3-PIN) |
|
| 7 |
228-6089 |
[2] |
PLUG (ROCKER SWITCH) |
|
| 8 |
102-8802 |
[1] |
KIT-RECEPTACLE (2-PIN) |
|
| |
|
|
(INCLUDES RECEPTACLE AS & WEDGE) |
|
| 10 |
9X-2045 M |
[12] |
SCREW-TRUSS HEAD (M6X1X20-MM) |
|
| 11 |
3S-2093 |
[4] |
STRAP-CABLE |
|
| 12 |
4S-1962 |
[2] |
CLIP (LOOP) |
|
| 13 |
5C-7261 M |
[1] |
NUT (M8X1.25-THD) |
|
| 14 |
6V-3341 |
[1] |
GROMMET |
|
| 15 |
8R-3695 |
[3] |
GROMMET |
|
| 16 |
8T-4224 |
[1] |
WASHER-HARD (8.8X16X2-MM THK) |
|
| 17 |
242-6099 |
[1] |
CLIP (LOOP) |
|
| |
C |
|
CHANGE FROM PREVIOUS TYPE |
|
| |
D |
|
ORDER BY THE METER |
|
| |
E |
|
ORDER BY THE CENTIMETER |
|
| |
M |
|
METRIC PART |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
