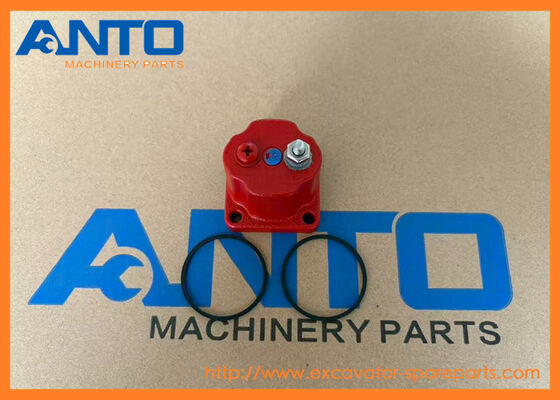

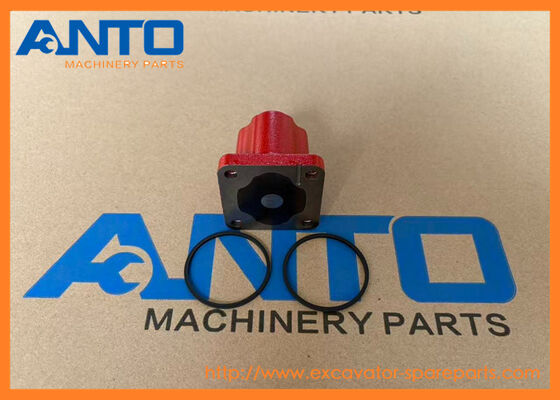

- 4024808 Fuel Pump Stop Shutoff Solenoid HYUNDAI Excavator Spare Parts For R450LC-7A R480LC-9
| Name |
Fuel Pump Stop Shutoff Solenoid |
| Parts No |
4024808 |
| Machine Model |
R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS |
| Category |
Fuel Pump Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
3-SERIES WHEEL LOADER HL7803A
7-SERIES CRAWLER EXCAVATOR R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RD510LC-7
7-SERIES WHEEL LOADER HL780-7A
9-SERIES CRAWLER EXCAVATOR R480C9MH R480LC9 R480LC9S R520LC9 R520LC9S R800LC-9 R800LC9FS Hyundai
| 1. Engine Startup Fuel Passage Opening |
| When ignition key turns to START/RUN position, electric current energizes the solenoid coil. Magnetic force pulls the internal plunger to lift the fuel cutoff valve, fully opening the internal fuel gallery of injection pump. Diesel fuel can flow continuously to plungers and injectors to support normal engine running. |
| |
| 2. Emergency & Normal Engine Shutdown (Core Function) |
| Once power supply is cut off (key off, emergency stop triggered), the built-in return spring instantly pushes the plunger down to block the fuel oil channel. Fuel supply to combustion chamber is completely cut off, forcing the engine to stop immediately. This is the primary electric shutdown control of diesel engines without throttle plates. |
| |
| 3. Safety Protection for Equipment |
| Cut fuel automatically in emergency scenarios: machine collision, over-speed, low oil pressure alarm, or fire hazards to prevent runaway engine and safety accidents. |
| Avoid abnormal diesel leakage after engine shutdown, eliminate unregulated fuel injection and post-combustion issues. |
| |
| 4. Stable Fuel System Pressure Control |
| Maintain consistent fuel inlet pressure during operation by fully opening the fuel passage when energized. Prevent partial blockage that would cause insufficient fuel supply, weak power, black smoke and unstable idling. |
| |
| 5. Manual Override Backup Function |
| Equipped with a manual override screw on the housing. When the solenoid coil fails or electrical circuit breaks, technicians can manually lift the plunger to supply fuel temporarily for engine maintenance or emergency transfer, avoiding machine immobilization on site. |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
BM76340 |
[1] |
DAMPER-FUEL PUMP |
FP2953-03 |
| 1 |
100099 |
[1] |
SEAL-RECT RING |
|
| 2 |
139988 |
[1] |
SEAL-RECT RING |
|
| 3 |
153336 |
[1] |
BODY-F/PUMP DAMPER |
|
| 4 |
153338 |
[1] |
COVER-F/PUMP DAMPER |
|
| 5 |
160514 |
[1] |
WASHER-PLAIN |
|
| 6 |
202897 |
[1] |
DIAPHRAGM-F/DAMPER |
|
| 7 |
3017051 |
[2] |
SCREW-CAPTIVE W/CAP |
|
| 8 |
70704 |
[2] |
WASHER-PLAIN |
|
| 9 |
151900 |
[1] |
SEAL-RECT RING |
|
| 10 |
153346 |
[2] |
SCREW-SOCKET HD CAP |
|
| 11 |
181466 |
[4] |
WASHER-LOCK |
|
| *-1. |
3090942 |
[1] |
PUMP-FUEL |
|
| 12 |
S-2286 |
[2] |
SCREW-DRIVE |
|
| 13 |
70700 |
[1] |
SPRING-COMPRESSION |
|
| 14 |
100129 |
[4] |
SCREW-SOCKET HD CAP |
|
| 15 |
105375 |
[1] |
NAMEPLATE |
|
| 16 |
129768 |
[1] |
SPRING-VALVE |
|
| 17 |
129839 |
[1] |
SHIELD-SHUTOFF VALVE |
|
| 18 |
129888 |
[2] |
SEAL-RECT RING |
|
| 19 |
146483 |
[1] |
SCREEN-FILTER |
|
| 20 |
196057 |
[1] |
DISC-VALVE |
|
| 21 |
3014575 |
[1] |
CAP-F/PUMP FILTER |
|
| 22 |
3021123 |
[1] |
SEAL/O-RING |
|
| *-2. |
3033742 |
[1] |
PLUG-THREADED |
|
| 23 |
3079584 |
[1] |
PLUG |
|
| 24 |
3034412 |
[1] |
SEAL/O-RING |
|
| 25 |
3034451 |
[1] |
HOUSING-ACTUATOR |
|
| 26 |
3095355 |
[1] |
HUB-JAW COUPLING |
|
| *-3. |
3042619 |
[1] |
NIPPLE-COUPLING |
|
| 27 |
3042620 |
[1] |
NIPPLE-COUPLING |
|
| 28 |
3037537 |
[1] |
SEAL/O-RING |
|
| 29 |
3408421 |
[1] |
SOLENOID |
|
| 30 |
3056009 |
[1] |
DISC-ACTUATOR |
|
| *-4. |
3056416 |
[4] |
PLUG-THREADED |
|
| N31. |
3056003 |
[1] |
PLUG-THREADED |
|
| 32 |
3056415 |
[1] |
SEAL/O-RING |
|
| 33 |
3065944 |
[4] |
SCREW-CAPTIVE W/CAP |
|
| 34 |
3068768 |
[1] |
RING-RECT |
|
| *-5. |
4010324 |
[1] |
PUMP-GEAR FUEL |
|
| 11 |
181466 |
[2] |
WASHER-LOCK |
|
| 35 |
64816-A |
[2] |
DOWEL-PIN |
|
| 36 |
110855 |
[1] |
GASKET-F/PUMP |
|
| *-6. |
3019617 |
[1] |
GEAR & SHAFT |
|
| 37 |
119364 |
[1] |
GEAR-FUEL PUMP |
|
| 38 |
175865 |
[1] |
SHAFT-FUEL PUMP |
|
| 39 |
3033719 |
[1] |
DOWEL-RING |
|
| 40 |
3033740 |
[1] |
VALVE-CHECK |
|
| 41 |
4010514 |
[1] |
TUBE-FUEL DRAIN |
|
| 42 |
68139 |
[1] |
ELBOW-MALE ADAPTER |
|
| 43 |
3034412 |
[1] |
SEAL/O-RING |
|
| 44 |
4010297 |
[1] |
SPRING-COMPRESSION |
|
| 45 |
4010296 |
[1] |
PLUNGER |
|
| 46 |
3085615 |
[1] |
RING-RETAINING |
|
| *-7. |
4010319 |
[1] |
GEAR-FUEL PUMP |
|
| N47. |
3033714 |
[1] |
HOUSING-F/P/GEAR |
|
| 48 |
3033724 |
[4] |
BUSHING |
|
| N49. |
4010318 |
[1] |
COVER-F/PUMP GEAR |
|
| *-8. |
3095635 |
[1] |
GEAR & SHAFT |
|
| 37 |
119364 |
[1] |
GEAR-FUEL PUMP |
|
| 50 |
3095356 |
[1] |
SHAFT-FUEL PUMP DRIVE |
|
| N*-9. |
3090993 |
[1] |
SUPPORT-F/PUMP |
|
| 51 |
128807 |
[1] |
RING-RETAINING |
|
| 52 |
3096077 |
[1] |
GASKET-F/PUMP |
|
| 53 |
3074317 |
[1] |
SPACER-SEAL |
|
| 54 |
3074316 |
[1] |
SPACER-SEAL |
|
| 55 |
3090996 |
[1] |
SUPPORT-F/PUMP |
|
| *-10. |
3803477 |
[1] |
KIT-OIL SEAL |
|
| 56 |
3084713 |
[1] |
SEAL-OIL |
|
| 57 |
3071643 |
[1] |
SEAL-OIL |
|
| *-11. |
3037536 |
[1] |
PLUG-THREADED |
|
| N58. |
3040813 |
[1] |
PLUG-THREADED |
|
| 59 |
3037537 |
[1] |
SEAL/O-RING |
|
| *-12. |
3036865 |
[1] |
UNION-MAIL |
|
| N60. |
3100526 |
[1] |
UNION-MALE |
|
| 61 |
3037236 |
[1] |
SEAL/O-RING |
|
| *-13 . |
3803493 |
[1] |
SUPPORT- FUEL PUMP |
|
| *. |
128807 |
[1] |
RING-RETAINING |
|
| *. |
3037536 |
[1] |
PLUG-THREADED |
|
| *. |
3037537 |
[1] |
SEAL/O-RING |
|
| N. |
3040813 |
[1] |
PLUG-THREADED |
|
| *. |
3074316 |
[1] |
SPACER-SEAL |
|
| *. |
3074317 |
[1] |
SPACER-SEAL |
|
| *. |
3090996 |
[1] |
SUPPORT-F/PUMP |
|
| *. |
3096077 |
[1] |
GASKET-F/PUMP |
|
| *. |
3803477 |
[1] |
KIT-OIL SEAL |
|
| . |
3071643 |
[1] |
SEAL-OIL |
|
| . |
3084713 |
[1] |
SEAL-OIL |
|
| *-14 . |
4024808 |
[1] |
KIT- FUEL SOLENOID |
|
| *. |
129888 |
[2] |
SEAL-RECT RING |
|
| . |
3408421 |
[1] |
SOLENOID |
|
| N . |
@ |
[AR] |
NOT INDIVIDUALLY SUPPLIED |
|
