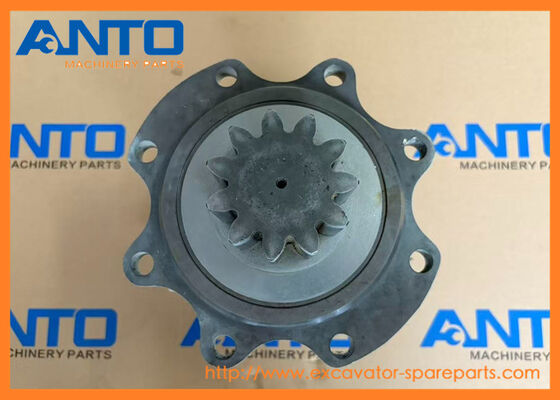

- RD511-61700 Motor Assy KUBOTA Excavator Spare Parts Fitting For KX161-3
| Category |
Swivel Motor And Component Parts
|
| Name |
Motor |
| Parts No |
RD511-61700 |
| Machine Model |
KX161-3, KX161-3S, U30, U35, U40 series |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing
|
| 1. Provide Rotary Power for Excavator Upper Body |
| Convert hydraulic pressure energy from main pump into mechanical rotational torque. Drives the whole cab, boom, arm and bucket to rotate left & right around the machine undercarriage, realizing 360掳 slewing operation during digging, loading and dumping. |
| |
| 2. Torque Amplification & Speed Reduction |
| Integrated planetary reduction gear set inside the motor housing: |
| Reduce high-speed rotation of hydraulic piston motor |
| Multiply output torque to bear heavy load of upper machine weight |
| Ensure stable, powerful slewing even with full bucket load. |
| |
| 3. Slewing Braking & Position Locking |
| Equipped with built-in multi-disc wet parking brake: |
| Automatically locks the swing output shaft when no slewing control signal; prevents cab free rotation on slopes or uneven ground. |
| Releases brake instantly when hydraulic oil feeds the motor, allowing smooth rotation. |
| Buffer sudden start/stop impact to avoid machine jolting and structural damage. |
EXCAVATOR(KH / KX / K / U SERIES) KX161 Kubota
- More other motor parts fit for KOMATSU machine
| 19434-73014 ASSY THERMOSTAT |
| BX2230D, G2160, G21HD, G21LD, GR2100, GR2100EC2, GR2110, GR2120AU, GZD15, GZD21, J112, J116, J315, J320, KJ, KX121, KX161, KX41, KX91, L2600DT, L2600F, L3000DT, L3000F, L3010DT, L3010F, L3410DT, L35, ... |
| |
| 1A091-07095 ASSY BRG.CASE,WHEEL |
| KX040, KX161, R420S |
| |
| 34070-75602 ASSY ALTERNATOR |
| KX121, KX161, L3010DT, L3010F, L3410DT, L35, L3710DT, L4310DT, L4610DT |
| |
| 68671-69390 ASSY VALVE RELIEF |
| KX151, KX161 |
| |
| 69738-92300 ASSY CLAMP |
| KX080, KX121, KX161, KX61, KX71, KX91, U35, U45 |
| |
| R1401-51350 ASSY PUMP,FUEL |
| BX1860, BX2360, BX25D, BX2660D, F1900, F1900E, F2560, F2560E, F2880, F3060, F3560, F3680, G1700, G18, G18HD, G23, K008, KX121, KX161, KX41, KX61, KX91, R420S, R520S, U35 |
| |
| RD511-61290 ASSY MOTOR WHEEL |
| KX161 |
| |
| RD459-70060 ASSY VALVE,BOOM |
| U48 |
| |
| RD458-65070 ASSY PEDAL,TRAVEL RH |
| KX016, KX018 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10 |
RD511-61700 |
[1] |
ASSY MOTOR SWIVEL |
|
| 20 |
RC411-73330 |
[1] |
BEARING,BALL |
|
| 30 |
RD411-73322 |
[1] |
SHAFT |
|
| 40 |
58700-11070 |
[1] |
PLATE,THRUST |
|
| 50 |
RC411-73470 |
[1] |
WASHER,SPRING |
|
| 60 |
RC411-73460 |
[1] |
SPRING |
|
| 70 |
RC411-73470 |
[1] |
WASHER,SPRING |
|
| 80 |
04611-00370 |
[1] |
CIR-CLIP,INTERNAL |
|
| 90 |
RC411-73710 |
[3] |
PIN |
|
| 100 |
RC411-73430 |
[1] |
PLATE,RETAINER |
|
| 110 |
RC411-73420 |
[1] |
HOLDER RETAINER |
|
| 120 |
RC411-73210 |
[1] |
PLATE,FRICTION |
|
| 130 |
RC411-73220 |
[1] |
PISTON |
|
| 140 |
04811-51100 |
[1] |
RING |
|
| 150 |
04811-51300 |
[1] |
O RING |
|
| 160 |
RC411-73270 |
[12] |
SPRING |
|
| 170 |
RC301-72244 |
[2] |
POPPET |
|
| 180 |
RC301-72280 |
[2] |
SPRING |
|
| 190 |
RC101-72630 |
[2] |
PLUG |
|
| 200 |
04817-00140 |
[2] |
O RING |
|
| 210 |
RC301-72290 |
[2] |
PLUG |
|
| 220 |
04817-00180 |
[2] |
O RING |
|
| 230 |
RD511-72300 |
[2] |
ASSY VALVE,RELIEF |
|
| 240 |
04817-00180 |
[2] |
O RING |
|
| 250 |
04817-00140 |
[2] |
O RING |
|
| 260 |
34076-66250 |
[4] |
RING,BACK UP |
|
| 262 |
04817-00060 |
[2] |
O RING |
|
| 264 |
RC101-72840 |
[2] |
RING,BACK UP |
|
| 270 |
04817-00120 |
[2] |
O RING |
|
| 280 |
68551-61420 |
[4] |
RING,BACK UP |
|
| 282 |
03650-60816 |
[2] |
SCREW,SET |
|
| 284 |
02052-60080 |
[2] |
NUT |
|
| 290 |
RC411-72213 |
[1] |
COVER |
|
| 300 |
15521-96030 |
[2] |
PLUG |
|
| 310 |
08101-06203 |
[1] |
BEARING,BALL |
|
| 320 |
RC411-73450 |
[1] |
PLATE,VALVE |
|
| 330 |
05012-00410 |
[1] |
PIN,STRAIGHT |
|
| 340 |
05012-00612 |
[2] |
PIN, STRAIGHT |
|
| 350 |
05012-00818 |
[2] |
PIN,STRAIGHT |
|
| 360 |
04811-51450 |
[1] |
RING |
|
| 370 |
04817-00220 |
[2] |
O RING |
|
| 380 |
RC411-73520 |
[5] |
BOLT,HEX-SOC-HD |
|
| 390 |
RC411-73510 |
[1] |
O RING |
|
| 400 |
RC411-73520 |
[2] |
BOLT,HEX-SOC-HD |
|
| 410 |
RC411-73532 |
[1] |
FILTER |
|
| 420 |
68811-17430 |
[1] |
PLUG |
<=20661 |
| 420 |
RC411-72660 |
[1] |
PLUG |
>=20662 |
| 430 |
04817-00110 |
[1] |
O RING |
|
| 440 |
01138-51640 |
[7] |
BOLT,SEMS |
|
| 450 |
RD411-73550 |
[1] |
KIT SEAL |
|
| 460 |
RP821-73560 |
[1] |
ASSY BLOCK,CYLINDER |
|
| 470 |
RD411-73570 |
[1] |
ASSY HOUSING SWING |
|
