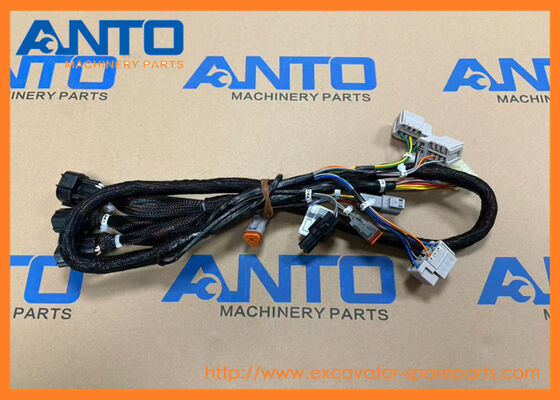

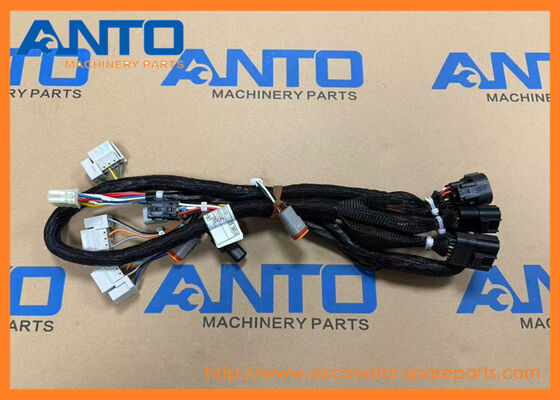

- 21N8-11151 Wiring Harness HYUNDAI Excavator Spare Parts For R140LC-7 R160LC-7 R180LC-7
| Name |
Main Wiring Harness |
| Parts No |
21N8-11151 |
| Machine Model |
R140LC7 R160LC7 R180LC7 R210LC7 R210LC7H R210NLC7 |
| Category |
Cab Electric Part |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Power & signal transmission channel |
| Connect all control switches, pilot controller buttons and joystick sensors installed on the right console. It transmits power supply and operator control signals between right console components, cabin monitor and main controller. |
| |
| 2.Control command delivery |
| Transfer pilot operation signals for bucket, boom, auxiliary hydraulic functions from right joystick to ECU. The excavator executes digging, lifting and attachment actions based on these electrical signals. |
| |
| 3.Connect cabin auxiliary switches |
| Link supporting control switches on the right console, including wiper, horn, travel mode, lights and other optional function switches. |
| |
| 4.Centralized wiring integration |
| Integrate multiple circuit lines into one bundled harness with standard waterproof connectors. Avoid messy wiring inside cab, simplify assembly and maintenance. |
| |
| 5.Protection for internal circuits |
| Braided outer sleeve and insulated wire prevent wire abrasion, short circuit caused by friction, dust and moisture inside operator cabin. |
7 SERIES WHEEL EXCAVATOR R140W7 R170W7 R200W7
7-SERIES CRAWLER EXCAVATOR R140LC-7 R160LC7 R180LC7 R210LC7 R210LC7H R210NLC7 R250LC7 R290LC7 R290LC7A R320LC7 R320LC7A R360LC7A R450LC7 R450LC7A R500LC7 R500LC7A R80-7 RC215C7 RC215C7H Hyundai
- More other harness parts fit for HYUNDAI machine
| 21NB-10047 HARNESS-FRAME |
| R450LC7, RD510LC-7 |
| |
| 21NB-40014 HARNESS-FRAME |
| R450LC7A, R500LC7A |
| |
| 21NB-40015 HARNESS-FRAME |
| R450LC7A, R500LC7A |
| |
| 21NB-40016 HARNESS-FRAME |
| R450LC7A |
| |
| 21N1-10015 HARNESS-FRAME |
| R80-7 |
| |
| 21N1-10170 HARNESS,EXT |
| R80-7 |
| |
| 21N1-10180 HARNESS-FRAME |
| R80-7 |
| |
| 21N8-11161 HARNESS-CONSOLE,LH |
| R80-7, RD510LC-7 |
| |
| 21N6-22012 HARNESS-FRAME |
| RC215C7 |
| |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2 |
21N8-21011 |
[1] |
BRACKET WA |
|
| 3 |
21N8-21070 |
[1] |
BRACKET WA |
|
| 4 |
S035-061622 |
[10] |
BOLT-W/WASHER |
|
| 5 |
21N8-21021 |
[1] |
COVER-WIPER MOTOR |
|
| 6 |
S035-081622 |
[4] |
BOLT-W/WASHER |
|
| 7 |
21N8-22010 |
[1] |
CASSETTE RADIO |
USA |
| 7-1. |
3.755E+11 |
[1] |
WIRE ASSY-20 H818 |
|
| 8 |
21N8-22020 |
[1] |
CASSETTE RADIO |
EUROPE |
| 8-1. |
3.755E+11 |
[1] |
WIRE ASSY-20 H818 |
|
| 9 |
21N8-22030 |
[1] |
CASSETTE RADIO |
GENERAL |
| 9-1. |
3.755E+11 |
[1] |
WIRE ASSY-20 H818 |
|
| 11 |
21N8-20010 |
[1] |
SOCKET-12V |
OPTION |
| 17 |
21N8-20201 |
[1] |
DC-DC CONVERTER ASSY |
OPTION |
| 18 |
21EH-30720 |
[1] |
STRAP-EARTH |
|
| 19 |
21N8-11160 |
[1] |
HARNESS-CONSOLE,LH |
|
| 20 |
21N8-11150 |
[1] |
HARNESS-CONSOLE,RH |
|
| 20 |
21N8-11151 |
[1] |
HARNESS-CONSOLE,RH |
|
| 20 |
21N4-02810 |
[1] |
HARNESS-CONSOLE,RH |
|
| 25 |
21N8-11180 |
[1] |
HARNESS-SIDE,RH |
|
| 25 |
21N8-11181 |
[1] |
HARNESS-SIDE,RH |
|
| 25 |
21N8-40140 |
[1] |
HARNESS-SIDE,RH |
|
| 26 |
21N8-21030 |
[1] |
CASSETTE RADIO-KOREA |
|
| 26-1. |
3.755E+11 |
[1] |
WIRE ASSY-20 H818 |
|
| 27 |
S132-061676 |
[2] |
SCREW-W/WASHER |
|
| 28 |
S132-061546 |
[1] |
SCREW-W/WASHER |
|
| 29 |
S543-280003 |
[2] |
CLAMP-TUBE |
|
| 30 |
21N6-20211 |
[2] |
WORK LAMP ASSY |
|
| 30-1. |
S866-240650 |
[1] |
BULB-H3,65W |
NOT SHOWN |
| 31 |
21EK-10420 |
[1] |
BEACON LAMP ASSY |
OPTION |
| 31 |
F23842010 |
[1] |
STROBE LAMP-RED |
OPTION |
| 31 |
21Q4-30381 |
[1] |
BEACON LAMP ASSY |
OPTION |
| 31-1. |
21EK-10140 |
[1] |
BEACON LAMP |
NOT SHOWN |
| 31-2. |
21EK-10330 |
[1] |
BULB-H1,70W |
NOT SHOWN |
| 31-3. |
21EK-20240 |
[1] |
HARNESS-BEACON LAMP |
NOT SHOWN |
| 31-4. |
21Q4-31000 |
[1] |
BRACKET-TILT |
|
| 31-41. |
21EK-10330 |
[1] |
BULB-H1,70W |
NOT SHOWN |
| 31-5. |
21Q4-20700 |
[1] |
BEACON LAMP |
|
| 31-5. |
21Q4-30700 |
[1] |
BEACON LAMP |
|
| 31-51. |
H1U 64155 |
[1] |
BULB-H1,70W |
|
| 31-6. |
21N4-02830 |
[1] |
HARNESS-BEACON LAMP |
|
| 32 |
21N8-00580 |
[1] |
BRACKET-BEACON LAMP |
|
| 32 |
21N8-00581 |
[1] |
BRACKET-BEACON LAMP |
|
| 32 |
21N8-00581BG |
[1] |
BRACKET-BEACON LAMP |
|
| 33 |
S131-051046 |
[7] |
SCREW-W/WASHER |
|
| 33 |
S131-051046 |
[4] |
SCREW-W/WASHER |
|
| 34 |
S131-051646 |
[2] |
SCREW-W/WASHER |
|
| 35 |
S037-102022 |
[9] |
BOLT-W/WASHER |
|
| 35 |
S037-102022 |
[7] |
BOLT-W/WASHER |
|
| 36 |
S661-260300 |
[1] |
CAP-RUBBER |
|
| 37 |
21M5-50250 |
[1] |
SWITCH ASSY |
SAFETY SW |
| 38 |
21N8-21080 |
[1] |
PLATE |
|
| 39 |
S890-107508 |
[1] |
TUBE-PVC |
|
| 40 |
S205-101002 |
[2] |
NUT-HEX |
|
| 43 |
21N4-01130 |
[6] |
PLATE-CLIP |
|
| 44 |
25D1-10660 |
[1] |
CLIP ASSY |
|
| 45 |
25D1-10650 |
[1] |
CLIP ASSY |
|
| 46 |
S591-000802 |
[2] |
CLIP-HARNESS |
|
| 47 |
S161-040106 |
[3] |
SCREW-CROSS R/ROUND |
|
| 49 |
21N6-10450 |
[1] |
PLATE-C/RADIO COVER |
|
| 50 |
21N8-40190 |
[1] |
EXT.HARNESS-A/RIDE SEAT |
|
| N60. |
21N8-50010 |
[1] |
CASSETTE RADIO ASSY |
STD |
| N60. |
21N8-50050 |
[1] |
CASSETTE RADIO ASSY |
STD |
| 60-1. |
21N6-10480 |
[1] |
BRACKET-LH |
|
| 60-2. |
21N6-10490 |
[1] |
BRACKET-RH |
|
| 60-3. |
21N8-01600 |
[1] |
HARNESS-EXT WIRE |
|
| 60-4. |
S141-050102 |
[4] |
SCREW-FLAT HD |
|
| 61 |
21N8-40500 |
[1] |
CD PLAYER ASSY |
OPTION |
| 61-1. |
21N6-10480 |
[1] |
BRACKET-LH |
|
| 61-2. |
21N6-10490 |
[1] |
BRACKET-RH |
|
| 61-3. |
21N8-01600 |
[1] |
HARNESS-EXT WIRE |
|
| 61-4. |
S141-050102 |
[4] |
SCREW-FLAT HD |
|
| 62 |
21N8-40940 |
[1] |
COVER-DUST |
|
| 72 |
21N8-50100 |
[1] |
RADIO/USB PLAYER ASSY |
|
| 72 |
21N8-54000 |
[1] |
RADIO & USB PLAYER ASSY |
|
| 72 |
21N8-55000 |
[1] |
RADIO/USB PLAYER |
|
| 72-1. |
21LM-31010 |
[1] |
BRACKET L |
|
| 72-2. |
21LM-31020 |
[1] |
BRACKET R |
|
| 72-3. |
21LM-31030 |
[1] |
CABLE-MP3 |
|
| 72-4. |
21LM-31040 |
[1] |
CAP |
|
| 72-5. |
21LM-31050 |
[1] |
BODY-RADIO/USB |
|
| 72-6. |
21N8-50110 |
[1] |
HARNESS-EXT,WIRE |
|
