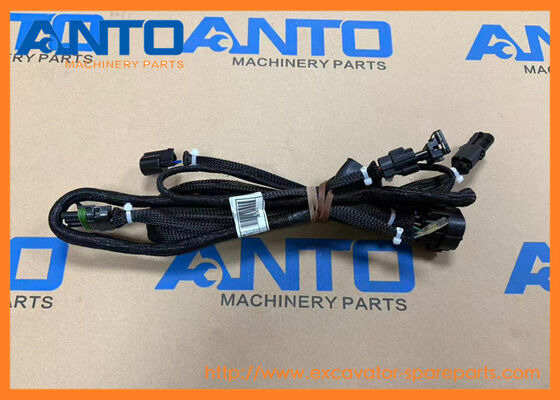

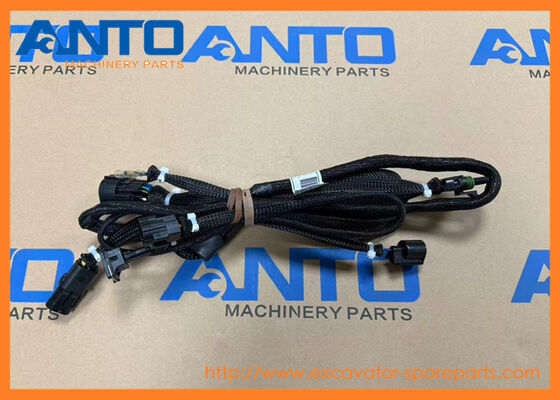

- 21N8-12071 Main Wiring Harness HYUNDAI Excavator Spare Parts For R210LC-7 R305-7 R320LC-7
| Name |
Main Wiring Harness |
| Parts No |
21N8-12071 |
| Machine Model |
R210LC-7 R305-7 R320LC-7 |
| Category |
Electric Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Power & signal transmission for rear engine components |
| Connect engine ECU to all electrical parts mounted at the rear section of the diesel engine, including sensors, actuators, alternator, coolant temperature sensor, pressure sensors, and engine protection switches. |
| |
| 2.Signal feedback to controller |
| Transmit real-time sensor data (engine temperature, oil pressure, speed signal) from engine rear to the machine main controller and cabin monitor. Operators can view engine working status via dashboard. |
| |
| 3.Drive engine rear actuators |
| Deliver control power to relevant electromagnetic valves and relays for engine protection, preheating and exhaust auxiliary devices. |
| |
| 4.Integrated circuit protection layout |
| Built-in branch circuits with matched wiring specifications; isolate engine circuits from hydraulic harness and cabin harness to avoid signal interference. |
| |
| 5.Environmental protection for wiring |
| Oil-resistant, heat-resistant and abrasion-resistant outer sheath protects internal copper wires against engine high temperature, vibration, hydraulic oil splash and dust. Prevent wire short circuit or open circuit. |
7-SERIES CRAWLER EXCAVATOR R305LC7 Hyundai
- More other harness parts fit for HYUNDAI machine
| 21NB-10047 HARNESS-FRAME |
| R450LC7, RD510LC-7 |
| |
| 21NB-40014 HARNESS-FRAME |
| R450LC7A, R500LC7A |
| |
| 21NB-40015 HARNESS-FRAME |
| R450LC7A, R500LC7A |
| |
| 21NB-40016 HARNESS-FRAME |
| R450LC7A |
| |
| 21N1-10015 HARNESS-FRAME |
| R80-7 |
| |
| 21N1-10170 HARNESS,EXT |
| R80-7 |
| |
| 21N1-10180 HARNESS-FRAME |
| R80-7 |
| |
| 21N8-11161 HARNESS-CONSOLE,LH |
| R80-7, RD510LC-7 |
| |
| 21N6-22012 HARNESS-FRAME |
| RC215C7 |
| |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
21N8-12060 |
[1] |
HARNESS-ENG.FRONT |
|
| 1 |
21N8-12061 |
[1] |
HARNESS-ENG.FRONT |
|
| 2 |
21N8-12070 |
[1] |
HARNESS-ENG.REAR |
|
| 2 |
21N8-12071 |
[1] |
HARNESS-ENG.REAR |
|
| N3. |
21E6-40030 |
[1] |
ALTERNATOR ASSY |
|
| 3 |
21Q6-41000-K |
[1] |
ALTERNATOR KIT |
|
| 3-1. |
21Q6-41000 |
[1] |
ALTERNATOR ASSY |
NOT SHOWN |
| 3 |
21Q6-41000 |
[1] |
ALTERNATOR ASSY |
|
| 3-2. |
21N8-43000 |
[1] |
HARNESS-ALTERNATOR |
NOT SHOWN |
| 3-1. |
21N8-43000 |
[1] |
HARNESS-ALTERNATOR |
NOT SHOWN |
| 4 |
21E1-21120 |
[1] |
WIRE LINK-ALTERNATOR |
|
| 5 |
21EN-40100 |
[1] |
SENDER-TEMP |
|
| 6 |
21EA-50171 |
[1] |
FITTING-TEMP SW |
|
| 7 |
21EA-50260 |
[1] |
PACKING-TEMP SW |
|
| 8 |
21EA-50430 |
[1] |
PLATE |
|
| 9 |
S037-101552 |
[7] |
BOLT-W/WASHER |
|
| 10 |
21EA-00160 |
[1] |
PLATE |
|
| 11 |
21E9-06080 |
[1] |
PLATE |
|
| 12 |
S035-061526 |
[3] |
BOLT-W/WASHER |
|
| 13 |
S035-081522 |
[1] |
BOLT-W/WASHER |
|
| 14 |
21E3-0042 |
[1] |
SENSOR-SPEED |
|
| 14 |
21Q6-15800 |
[1] |
SENSOR-SPEED |
|
| 15 |
21N9-20052 |
[1] |
BRAKCET-RELAY |
|
| 16 |
S593-000752 |
[3] |
CLIP-HARNESS |
|
| 17 |
21N8-12090 |
[1] |
BRACKET-RELAY |
|
| 18 |
S593-000902 |
[5] |
CLIP-HARNESS |
|
| 18 |
S593-000802 |
[5] |
CLIP-HARNESS |
|
| 19 |
21N6-30120 |
[1] |
RELAY-START |
|
| 20 |
21EA-00190 |
[1] |
HARNESS-EXT,START RY |
|
| 21 |
S552-050203 |
[12] |
CLAMP-BAND |
|
| 22 |
21N8-10071 |
[1] |
HARNESS-PUMP |
|
| 23 |
21EG-32200 |
[2] |
SENDER-PRESSURE |
OPTION |
| 24 |
21EG-32210 |
[1] |
SENDER-PRESSURE |
OPTION |
| 25 |
21L8-30720 |
[1] |
STRAP-EARTH |
|
| 26 |
21E3-5001 |
[1] |
SWITCH-ENG OIL PRESS |
|
| 27 |
S593-000702 |
[1] |
CLIP-HARNESS |
|
| 27 |
S593-000802 |
[1] |
CLIP-HARNESS |
|
| 28 |
21E9-00170 |
[4] |
CLIP-HARNESS |
|
| 29 |
E225-0006 |
[1] |
RELAY-HEATER |
|
| 30 |
S037-121552 |
[2] |
BOLT-W/WASHER |
|
| 31 |
21N8-12080 |
[1] |
CABLE(STARTER-HEATER RY) |
|
| 32 |
21N9-20030 |
[1] |
CABLE-HEATER |
|
| 33 |
S205-061002 |
[2] |
NUT |
|
| 34 |
21NA-10500 |
[1] |
STRAP-EARTH |
|
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
