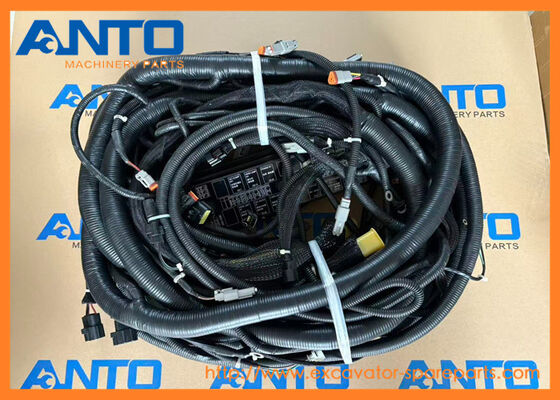

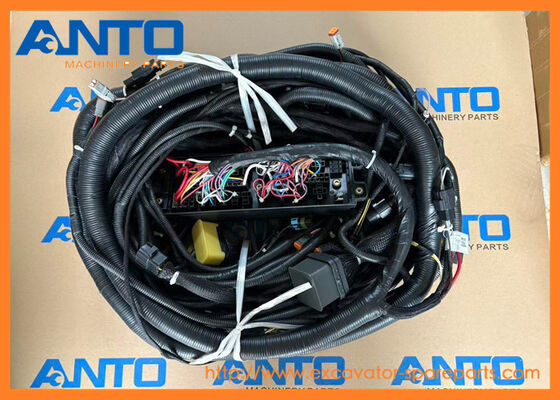

- 21QB-14400 Frame Harness HYUNDAI Excavator Spare Parts Fitting For R480LC-9S R520LC-9S
| Name |
Wiring Harness |
| Parts No |
21QB-14400 |
| Machine Model |
R480LC-9S R520LC-9S |
| Category |
Frame Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
9-SERIES CRAWLER EXCAVATOR R480LC9S R520LC9S Hyundai
| 1.Power transmission distribution |
| Deliver DC power from battery / main relay box to chassis-mounted actuators, solenoid valves, pressure sensors and auxiliary electrical components. Supply stable operating voltage for hydraulic control modules. |
| |
| 2.Signal transmission & CAN communication link |
| Transmit analog sensor signals (pressure, temperature, speed) and digital CAN bus signals between MCU main controller, cabin monitor, hydraulic solenoid groups and travel motor sensors. Ensure real-time exchange of operation commands and machine status data. |
| |
| 3.Connect cab control to chassis hydraulic execution parts |
| Act as the main electrical bridge between operator cabin and undercarriage / hydraulic compartment. Transfer joystick operation signals to proportional solenoid valves to control boom, arm, bucket, swing and travel movements. |
| |
| 4.Circuit protection & noise suppression |
| Shielded cables reduce electromagnetic interference generated by hydraulic pumps and engines. Integrated wiring layout avoids short circuits, cable abrasion and signal distortion. Outer corrugated tubing provides abrasion, mud, water and oil resistance. |
- More other harness parts fit for HYUNDAI machine
| 21N6-80101 HARNESS-FRAME |
| RD220-7 |
| |
| 21N6-80102 HARNESS-FRAME |
| RD220-7 |
| |
| 21N1-20010 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20011 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20012 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20013 HARNESS-FRAME |
| RD80-7 |
| |
| 21N6-DA0630 HARNESS-LAMP |
| RD80-7 |
| |
| 21N1-60010 HARNESS-ENG |
| RD80-7 |
| |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| |
| 21N1-10022 HARNESS-ENGINE |
| R80-7 |
| |
| 21N8-11182 HARNESS-SIDE,RH |
| R80-7 |
| |
| 21N8-10091 HARNESS-WIPER |
| HX235L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9V, R140W9, R145CR9, R145CR9A, R160LC9, R180LC9, R210LC9, R210NLC9, R210W-9, R215LC7, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9, R80-7, R... |
| |
| 21N8-10090 HARNESS-WIPER |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290... |
| |
| 21N6-00013 HARNESS-CAB |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9V, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250... |
| |
| 21N6-00012 HARNESS-CAB |
| R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7H, R305LC7, R320LC7, R360LC7, R450LC7, R450LC7A, R500LC7, R80-7, RC215C7, RC215C7H |
| |
| 21N3-10050 HARNESS-ENGINE |
| R110-7 |
| |
| 21N3-10020 HARNESS-BOOM |
| R110-7 |
| |
| 21N4-01502 HARNESS-EXT, TRAVEL |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9S, R160LC7, R160LC7A, R180LC7, R180LC7A, R80-7, R80-7A, RD110-7 |
| |
| 21N3-10014 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10013 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10012 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10011 HARNESS-FRAME |
| R110-7 |
| |
| YCAC-01966 HARNESS-ENGINE WIRE |
| HSL960T |
| |
| 21N6-60020 HARNESS-RH,CONSOLE |
| R110-7 |
| |
| 21N3-10510 HARNESS-RH,CONSOLE |
| R110-7, R110-7A |
| |
| 21N6-60030 HARNESS-SIDE,RH |
| R110-7 |
| |
| 21N6-60031 HARNESS-SIDE,RH |
| R110-7, R110-7A |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
21QB-14400 |
[1] |
HARNESS-FRAME |
|
| 1 |
21QB-14401 |
[1] |
HARNESS-FRAME |
|
| 1 |
21QB-14403 |
[1] |
HARNESS-FRAME |
|
| 1 |
21QB-14404 |
[1] |
HARNESS FRAME |
|
| 1 |
21QB-14405 |
[1] |
HARNESS FRAME |
|
| 1-1. |
21EA-50550 |
[1] |
DIODE-IN5406 |
NOT SHOWN |
| 1-2. |
21EA-50570 |
[1] |
DIODE-FE3D |
NOT SHOWN |
| 1-3. |
21Q6-03270 |
[1] |
MAXI FUSE ASSY |
NOT SHOWN |
| 1-4. |
21LM-03140 |
[1] |
FUSE-MAXI(40A) |
NOT SHOWN |
| 1-5. |
21LM-03160 |
[1] |
FUSE MAXI |
NOT SHOWN |
| 3 |
21QB-32110 |
[1] |
MCU(MACHINE CNTL UNIT) |
|
| 4 |
21L1-1012 |
[2] |
BATTERY |
|
| 5 |
21QA-70010 |
[1] |
RELAY-BATTERY |
|
| 5 |
21QA-70011 |
[1] |
RELAY-BATTERY |
|
| 5 |
21E5-0003 |
[1] |
RELAY-BATTERY |
|
| 5 |
21QA-70011 |
[1] |
RELAY-BATTERY |
|
| 6 |
21QB-21020 |
[1] |
COVER-BATTERY |
|
| 7 |
21QB-22401 |
[1] |
CABLE(BATT-EARTH) |
|
| 8 |
21QB-22301 |
[1] |
CABLE(BATT-BATT) |
|
| 9 |
21QB-22201 |
[1] |
CABLE(BATT RY-STARTER) |
|
| 10 |
21QB-22102 |
[1] |
CABLE(BATT(+)-RELAY) |
|
| 11 |
21NB-10150 |
[2] |
BRACKET-BATTERY |
|
| 12 |
21Q6-14101 |
[1] |
PLATE |
|
| 13 |
21Q4-01161 |
[1] |
BREAKER-CIRCUIT ,30A |
|
| 14 |
21M9-01171 |
[1] |
CIRCUIT-BREAKER,60A |
|
| 16 |
21QB-20080 |
[1] |
PLATE-CLAMP |
OPTION |
| 17 |
21QB-14300 |
[1] |
HOSE-OUTLET |
OPTION |
| 18 |
S520-032000 |
[1] |
CLAMP-HOSE |
OPTION |
| 19 |
E127-3158 |
[1] |
BAND-FUEL PUMP |
OPTION |
| 20 |
21N5-10051 |
[1] |
HORN-LOW |
|
| 21 |
21N5-10061 |
[1] |
HORN-HIGH |
|
| 22 |
21N4-46800 |
[1] |
BUZZER-BACK |
|
| 22 |
21N4-56800 |
[1] |
BUZZER-BACK |
|
| 27 |
21N4-01130 |
[3] |
PLATE-CLIP |
|
| 30 |
S141-040206 |
[4] |
SCREW-FLAT HD |
|
| 30 |
S131-042046 |
[4] |
SCREW-W/WASHER |
|
| 31 |
21QB-60700 |
[1] |
WORK LAMP ASSY |
|
| 31 |
21QB-60700 |
[2] |
WORK LAMP ASSY |
|
| 31-1. |
S866-240650 |
[1] |
BULB-H3,65W |
NOT SHOWN |
| 32 |
S403-105006 |
[2] |
WASHER-PLAIN |
|
| 33 |
25D1-10640 |
[3] |
CLIP ASSY |
|
| 35 |
31L7-10190 |
[17] |
CLAMP-TUBE |
|
| 36 |
31L7-10200 |
[6] |
CLAMP-TUBE |
|
| 38 |
31L7-10230 |
[10] |
CLAMP-TUBE |
|
| 39 |
31L7-10350 |
[4] |
CLAMP |
|
| 40 |
S017-102656 |
[2] |
BOLT-HEX |
|
| 42 |
S035-081526 |
[2] |
BOLT-W/WASHER |
|
| 43 |
S035-082026 |
[2] |
BOLT-W/WASHER |
|
| 44 |
S035-083526 |
[4] |
BOLT-W/WASHER |
|
| 45 |
S035-083026 |
[6] |
BOLT-W/WASHER |
|
| 46 |
S037-101526 |
[42] |
BOLT-W/WASHER |
|
| 46 |
S037-101526 |
[44] |
BOLT-W/WASHER |
|
| 47 |
S037-102026 |
[1] |
BOLT-W/WASHER |
|
| 47 |
S037-102026 |
[3] |
BOLT-W/WASHER |
|
| 52 |
21Q8-16410 |
[1] |
HARNESS-OVERLOAD |
|
| 53 |
21Q6-14101 |
[1] |
PLATE |
|
| 54 |
21Q4-47020 |
[1] |
GUARD-BACK LIGHT |
|
