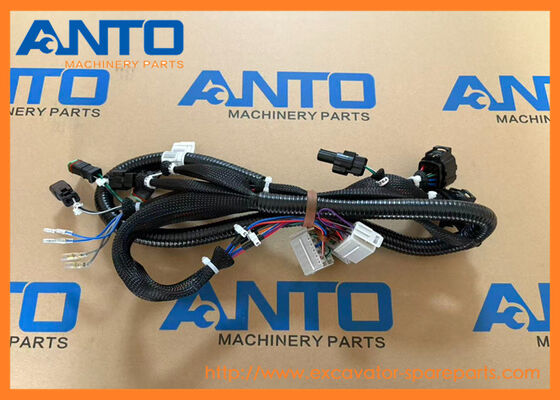

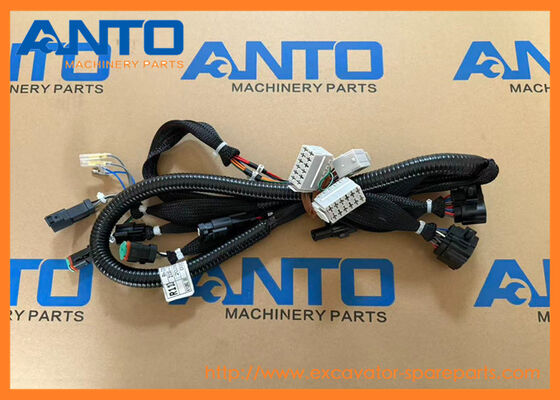

- 21Q6-10604 Engine Harness HYUNDAI Excavator Spare Parts Fitting For R480LC-9S R520LC-9S
| Name |
Wiring Harness |
| Parts No |
21Q6-10604 |
| Machine Model |
R480LC-9S R520LC-9S |
| Category |
Engine Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
9-SERIES CRAWLER EXCAVATOR R480LC9S R520LC9S Hyundai
| 1.Power Transmission |
| Deliver stable DC power supply from the main machine power circuit to engine electronic parts, including fuel injectors, pressure sensors, temperature sensors, solenoid valves and engine ECU. |
| |
| 2.Signal & Data Communication |
| Transmit real-time sensor feedback signals to the Engine Control Unit (ECU): coolant temperature, boost pressure, crankshaft speed, oil pressure, exhaust temperature etc. |
| Also transfer control commands output by ECU to actuators to regulate fuel injection quantity, injection timing and engine speed. |
| |
| 3.Interconnection Bridge Between Engine & Chassis Controller |
| Build communication link between engine ECU and excavator main controller, monitor panel. It enables real-time data sharing: engine load, RPM, fault codes, so the machine can coordinate engine output and hydraulic pump power. |
| |
| 4.Integrated Protection & Cable Organisation |
| Bundle scattered wires into a fixed routing layout. The outer sleeve protects cables against engine high temperature, vibration, engine oil, dust and abrasion. Waterproof connectors prevent short circuit or open circuit caused by water ingress. |
| |
| 5.Fault Diagnosis Signal Channel |
| Carry diagnostic communication lines. Service tools can connect via this harness to read trouble codes, view engine operating parameters and complete ECU calibration. |
- More other harness parts fit for HYUNDAI machine
| 21N6-80101 HARNESS-FRAME |
| RD220-7 |
| |
| 21N6-80102 HARNESS-FRAME |
| RD220-7 |
| |
| 21N1-20010 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20011 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20012 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20013 HARNESS-FRAME |
| RD80-7 |
| |
| 21N6-DA0630 HARNESS-LAMP |
| RD80-7 |
| |
| 21N1-60010 HARNESS-ENG |
| RD80-7 |
| |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| |
| 21N1-10022 HARNESS-ENGINE |
| R80-7 |
| |
| 21N8-11182 HARNESS-SIDE,RH |
| R80-7 |
| |
| 21N8-10091 HARNESS-WIPER |
| HX235L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9V, R140W9, R145CR9, R145CR9A, R160LC9, R180LC9, R210LC9, R210NLC9, R210W-9, R215LC7, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9, R80-7, R... |
| |
| 21N8-10090 HARNESS-WIPER |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290... |
| |
| 21N6-00013 HARNESS-CAB |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9V, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250... |
| |
| 21N6-00012 HARNESS-CAB |
| R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7H, R305LC7, R320LC7, R360LC7, R450LC7, R450LC7A, R500LC7, R80-7, RC215C7, RC215C7H |
| |
| 21N3-10050 HARNESS-ENGINE |
| R110-7 |
| |
| 21N3-10020 HARNESS-BOOM |
| R110-7 |
| |
| 21N4-01502 HARNESS-EXT, TRAVEL |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9S, R160LC7, R160LC7A, R180LC7, R180LC7A, R80-7, R80-7A, RD110-7 |
| |
| 21N3-10014 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10013 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10012 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10011 HARNESS-FRAME |
| R110-7 |
| |
| YCAC-01966 HARNESS-ENGINE WIRE |
| HSL960T |
| |
| 21N6-60020 HARNESS-RH,CONSOLE |
| R110-7 |
| |
| 21N3-10510 HARNESS-RH,CONSOLE |
| R110-7, R110-7A |
| |
| 21N6-60030 HARNESS-SIDE,RH |
| R110-7 |
| |
| 21N6-60031 HARNESS-SIDE,RH |
| R110-7, R110-7A |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
21QB-14500 |
[1] |
HARNESS-ENGINE |
CLUSTER TYPE 1 |
| 1 |
21QB-14501 |
[1] |
HARNESS-ENGINE |
CLUSTER TYPE 1 |
| 1 |
21QB-14502 |
[1] |
HARNESS-ENGINE |
CLUSTER TYPE 1 |
| 1 |
21QB-14200 |
[1] |
HARNESS-ENGINE |
CLUSTER TYPE 2 |
| 1 |
21QB-14201 |
[1] |
HARNESS-ENGINE |
CLUSTER TYPE 2 |
| 1 |
21QB-14202 |
[1] |
HARNESS-ENGINE |
CLUSTER TYPE 2 |
| 1-1. |
21LH-30130 |
[1] |
RESISTOR |
NOT SHOWN |
| 3 |
21Q6-41000-K |
[1] |
ALTERNATOR KIT |
W/O PULLY |
| 3 |
21Q6-42501 |
[1] |
ALTERNATOR ASSY |
W/ PULLY |
| 3-1. |
21Q6-41000 |
[1] |
ALTERNATOR ASSY |
NOT SHOWN |
| 3-2. |
21N8-43000 |
[1] |
HARNESS-ALTERNATOR |
NOT SHOWN |
| 3 |
21Q6-42501 |
[1] |
ALTERNATOR ASSY |
W/ PULLY |
| 4 |
21LH-31011 |
[1] |
PLATE |
|
| 4 |
21NB-21080 |
[1] |
BRACKET-RELAY |
|
| 5 |
21LH-31030 |
[1] |
PLATE |
|
| 6 |
21N8-42050 |
[1] |
RELAY-HEATER |
|
| 7 |
21NB-40051 |
[1] |
CABLE ASSY |
|
| 9 |
21N4-01130 |
[1] |
PLATE-CLIP |
|
| 10 |
21EH-30720 |
[1] |
STRAP-EARTH |
|
| 11 |
S037-102056 |
[2] |
BOLT-W/WASHER |
|
| 11 |
S037-102026 |
[2] |
BOLT-W/WASHER |
|
| 12 |
21E9-00170 |
[6] |
CLIP-HARNESS |
|
| 13 |
31L7-10200 |
[1] |
CLAMP-TUBE |
|
| 14 |
S035-061526 |
[2] |
BOLT-W/WASHER |
|
| 15 |
S035-081526 |
[2] |
BOLT-W/WASHER |
|
| 16 |
S205-08100B |
[4] |
NUT-HEX |
|
| 17 |
31L7-10190 |
[3] |
CLAMP-TUBE |
|
| 18 |
S552-035146 |
[3] |
CLAMP-BAND |
|
| 19 |
S593-000902 |
[1] |
CLIP-HARNESS |
|
| 20 |
21N6-30120 |
[1] |
RELAY-START |
|
| 21 |
21NB-00190 |
[1] |
HARNESS-EXT,START RY |
|
| 22 |
S285-06100B |
[4] |
NUT-FLANGED |
|
| 23 |
21QB-10302 |
[1] |
HARNESS-PUMP PS |
|
| 24 |
21Q6-10850 |
[1] |
COVER-STARTER RELAY |
|
| 25 |
21Q6-10950 |
[1] |
COVER-PREHEAT RELAY |
|
