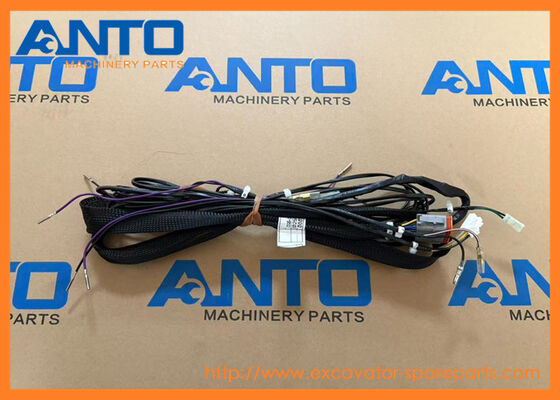

- 21QB-10302 Engine Harness HYUNDAI Excavator Spare Parts Fit For R480LC-9 R520LC-9
| Name |
Wiring Harness |
| Parts No |
21QB-10302 |
| Machine Model |
R480C9MH R480LC9 R480LC9S R520LC9 R520LC9S |
| Category |
Engine Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
9-SERIES CRAWLER EXCAVATOR R480C9MH R480LC9 R480LC9S R520LC9 R520LC9S Hyundai
| 1.Power Supply Transmission |
| Deliver stable DC power from the main power circuit to engine-mounted electrical components, including injectors, solenoid valves, temperature & pressure sensors, glow plugs and other actuators. |
| |
| 2.Sensor Signal Transfer |
| Transmit real-time feedback signals from all engine sensors to ECU: |
| Crankshaft position sensor |
| Camshaft position sensor |
| Coolant temperature sensor |
| Oil pressure sensor |
| Boost pressure sensor |
| Fuel pressure sensor |
| These data enable ECU to calculate injection timing, fuel quantity and engine operating status. |
| |
| 3.Control Signal Execution |
| Carry command signals sent out by ECU to drive actuators: fuel injectors, EGR valve, engine stop solenoid, fan clutch solenoid etc., to regulate engine speed, power output and emission control. |
| |
| 4.Communication Link Between Engine ECU & Vehicle Controller |
| Realize data exchange between engine ECU and excavator MCU / monitor, so the operator can view engine speed, coolant temperature, fault codes and alarm information on the cabin display. |
- More other harness parts fit for HYUNDAI machine
| 21N6-80101 HARNESS-FRAME |
| RD220-7 |
| |
| 21N6-80102 HARNESS-FRAME |
| RD220-7 |
| |
| 21N1-20010 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20011 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20012 HARNESS-FRAME |
| RD80-7 |
| |
| 21N1-20013 HARNESS-FRAME |
| RD80-7 |
| |
| 21N6-DA0630 HARNESS-LAMP |
| RD80-7 |
| |
| 21N1-60010 HARNESS-ENG |
| RD80-7 |
| |
| 21N9-10024 HARNESS-ENGINE |
| R320LC7 |
| |
| 21NB-10054 HARNESS-ENGINE |
| R500LC7 |
| |
| 21N1-10022 HARNESS-ENGINE |
| R80-7 |
| |
| 21N8-11182 HARNESS-SIDE,RH |
| R80-7 |
| |
| 21N8-10091 HARNESS-WIPER |
| HX235L, R110-7, R110-7A, R125LCR-9A, R140LC9, R140LC9V, R140W9, R145CR9, R145CR9A, R160LC9, R180LC9, R210LC9, R210NLC9, R210W-9, R215LC7, R250LC9, R290LC9, R320LC9, R360LC9, R480LC9, R520LC9, R80-7, R... |
| |
| 21N8-10090 HARNESS-WIPER |
| R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290... |
| |
| 21N6-00013 HARNESS-CAB |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9V, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250... |
| |
| 21N6-00012 HARNESS-CAB |
| R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, R290LC7, R290LC7H, R305LC7, R320LC7, R360LC7, R450LC7, R450LC7A, R500LC7, R80-7, RC215C7, RC215C7H |
| |
| 21N3-10050 HARNESS-ENGINE |
| R110-7 |
| |
| 21N3-10020 HARNESS-BOOM |
| R110-7 |
| |
| 21N4-01502 HARNESS-EXT, TRAVEL |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9S, R160LC7, R160LC7A, R180LC7, R180LC7A, R80-7, R80-7A, RD110-7 |
| |
| 21N3-10014 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10013 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10012 HARNESS-FRAME |
| R110-7 |
| |
| 21N3-10011 HARNESS-FRAME |
| R110-7 |
| |
| YCAC-01966 HARNESS-ENGINE WIRE |
| HSL960T |
| |
| 21N6-60020 HARNESS-RH,CONSOLE |
| R110-7 |
| |
| 21N3-10510 HARNESS-RH,CONSOLE |
| R110-7, R110-7A |
| |
| 21N6-60030 HARNESS-SIDE,RH |
| R110-7 |
| |
| 21N6-60031 HARNESS-SIDE,RH |
| R110-7, R110-7A |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
21QB-20301 |
[1] |
HARNESS-ENGINE |
|
| 1 |
21QB-20302 |
[1] |
HARNESS-ENGINE |
|
| 1 |
21QB-20303 |
[1] |
HARNESS-ENGINE |
|
| 1 |
21QB-20304 |
[1] |
HARNESS-ENGINE |
|
| 1 |
21QB-20500 |
[1] |
HARNESS-ENGINE |
|
| 1 |
21QB-20501 |
[1] |
HARNESS-ENGINE |
|
| 1-1. |
21LH-30130 |
[1] |
RESISTOR |
NOT SHOWN |
| 2 |
21QB-10301 |
[1] |
HARNESS-PUMP PS |
|
| 2 |
21QB-10302 |
[1] |
HARNESS-PUMP PS |
|
| N3. |
21E6-40030 |
[1] |
ALTERNATOR ASSY |
|
| 3 |
21Q6-41000-K |
[1] |
ALTERNATOR KIT |
|
| 3-1. |
21Q6-41000 |
[1] |
ALTERNATOR ASSY |
NOT SHOWN |
| 3-2. |
21N8-43000 |
[1] |
HARNESS-ALTERNATOR |
NOT SHOWN |
| 4 |
21LH-31011 |
[1] |
PLATE |
|
| 5 |
21LH-31030 |
[1] |
PLATE |
|
| 6 |
21N8-42050 |
[1] |
RELAY-HEATER |
|
| 7 |
21NB-40050 |
[1] |
CABLE ASSY |
|
| 7 |
21NB-40051 |
[1] |
CABLE ASSY |
|
| 8 |
21E1-21120 |
[1] |
WIRE LINK-ALTERNATOR |
|
| 9 |
21N4-01130 |
[1] |
PLATE-CLIP |
|
| 10 |
21EH-30720 |
[1] |
STRAP-EARTH |
|
| 11 |
S037-102056 |
[2] |
BOLT-W/WASHER |
|
| 12 |
21E9-00170 |
[6] |
CLIP-HARNESS |
|
| 13 |
31L7-10200 |
[1] |
CLAMP-TUBE |
|
| 14 |
S035-061526 |
[2] |
BOLT-W/WASHER |
|
| 15 |
S035-081526 |
[2] |
BOLT-W/WASHER |
|
| 16 |
S205-08100B |
[4] |
NUT-HEX |
|
| 17 |
31L7-10190 |
[3] |
CLAMP-TUBE |
|
| 18 |
S552-035146 |
[3] |
CLAMP-BAND |
|
| 19 |
S593-000902 |
[1] |
CLIP-HARNESS |
|
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
