3E-7279 3E7279 Switch Assembly Magnetic Motor Grader Spare Parts For 3306 143H 160H

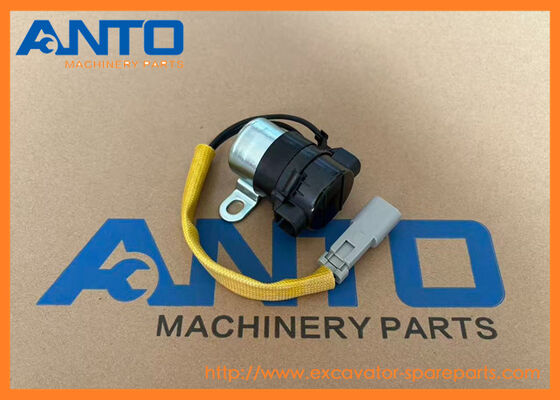

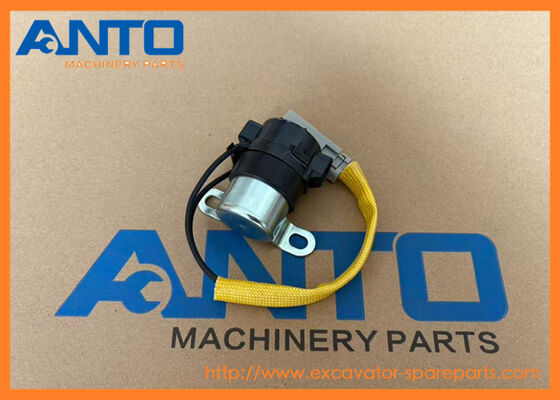

Large Image : 3E-7279 3E7279 Switch Assembly Magnetic Motor Grader Spare Parts For 3306 143H 160H

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	3E-7279 3E7279

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	20 USD / pcs
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Wiring Gp-Rear	Part Number:	3E-7279 3E7279
Product Name:	Switch Assembly Magnetic	Machine Number:	120H 120H ES 120H NA 12H 12H ES 135H
Application:	Generator Set, Motor Grader	Lead Time:	1-3 Days For Delivery
Packing:	Standard Export Carton
Highlight:	Switch Assembly for Motor Grader , Magnetic Spare Parts for 3306 , Motor Grader Switch with Warranty

3E-7279 3E7279 Switch Assembly Magnetic Motor Grader Spare Parts For 3306 143H 160H

Specifiion

Category	Electric Parts
Name	Switch Assembly Magnetic
Parts No	3E-7279 3E7279
Machine Number	120H 120H NA 12H 12H ES 12H NA 135H 135H NA 140H
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT
Packing	As request or standard packing

Key functions

1.High-current circuit control for starter motor

It acts as a heavy-duty electromagnetic relay. It uses a small control current from the ignition key circuit to switch the huge battery current supplied to the starter solenoid / starting motor.

2.Protect ignition switch & control wiring

The starter draws extremely high amperage. If the key switch directly carries this heavy current, contacts will burn out rapidly. This magnetic switch separates low-current control circuit and high-power main circuit, greatly reducing load on the key switch and thin control wires.

3.Remote switching of starting circuit

Enables electrical remote activation of the starting system. When energized, it closes the main contacts to connect battery power to the starter. When de-energized, it cuts off power to stop cranking.

4.Overload isolation for starting loop

Provides a reliable break point between battery and starter. It prevents continuous cranking after engine startup, avoiding starter burnout.

5.Vibration-resistant stable switching for construction equipment

Sealed waterproof & dustproof housing designed for excavators, dozers and loaders. Maintains stable contact performance under continuous vibration, temperature fluctuation and dirty working environments.

Compatible models

GEN SET ENGINE 3208
MOTOR GRADER 120H 120H ES 120H NA 12H 12H ES 12H NA 135H 135H NA 140H 140H ES 140H NA 143H 14H NA 160H 160H ES 160H NA 163H NA 16H NA
QUARRY TRUCK 771C 775B
TRACTOR 768C 772B 776C
TRUCK 769C 773B
VIBRATORY COMPACTOR CB-525B
WHEEL LOADER 936F
WHEEL SCRAPER 615C 623E 623F
WHEEL TRACTOR 611 613C II 621F 627F

More other switch applied to C A T heavey machine

1728660 SWITCH GP-LIQUID LEVEL

305.5, 306, 307D, 308D, 308E, 308E2 CR, 312C, 315C, 3406C, 3456, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, 5110B, 5130B, 5230, 5230B, 533, 543, 584, 776D, 777, 777B, 777C, 777D, 777F...

2661406 SWITCH AS-ROCKER

303.5C, 303.5E, 303C CR, 303E CR, 304C CR, 304E, 305.5E, 305C CR, 305E

2220225 SWITCH AS-PUSH BUTTON

303.5E, 303E CR, 304E, 305.5E, 305E, 306E, 307D, 308D, 308E CR, 308E SR, 311D LRR, 311F LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314D CR, 314D LCR, 314E CR, 3...

1863792 SWITCH-LEVEL

303.5E, 303E CR, 304E, 305.5E, 305E, 308E CR, 308E SR, 311D LRR, 311F LRR, 312D L, 312E, 314C, 314D CR, 314E CR, 314E LCR, 315D L, 316E L, 318E L, 319D L, 320C, 320D, 320D L, 320D RR, 320E, 320E L, 32...

3879910 SWITCH-PRESSURE

303.5E, 303E CR, 304E, 305.5E, 305E, 306E, 307E, 308E, 308E CR, 308E SR, 901C, 902C, 903C

3830521 SWITCH AS

303.5E, 304E, 305.5E, 305E, 901C, 902C, 903C

3790817 SWITCH AS-ROCKER

303.5E, 304E, 305.5E, 305E, 308E, 308E2 CR

3790820 SWITCH AS-ROCKER

308E, 308E2 CR

3790821 SWITCH AS-ROCKER

308E, 308E2 CR

3790818 SWITCH AS-ROCKER

308E, 308E2 CR

3623223 SWITCH AS-PRESSURE

303.5E, 303E CR, 304E

3935862 SWITCH AS-ROCKER

304E, 305E

3830521 SWITCH AS

303.5E, 304E, 305.5E, 305E, 901C, 902C, 903C

3879910 SWITCH-PRESSURE

303.5E, 303E CR, 304E, 305.5E, 305E, 306E, 307E, 308E, 308E CR, 308E SR, 901C, 902C, 903C

3860798 SWITCH AS

301.7D, 302.2D, 302.4D, 302.7D

3860741 SWITCH-PRESSURE

302.7D

3860560 SWITCH-SOLENOID

302.7D

3860559 SWITCH-SOLENOID

302.7D

4164286 SWITCH-TEMPERATURE

305.5E, 306E

3835752 SWITCH GP-POSITION

314E CR, 314E LCR

3790818 SWITCH AS-ROCKER

308E, 308E2 CR

Directory listing

Pos.	Part No	Qty	Parts name	Comments
1	3T-5760	[2]	BATTERY GP (12-VOLT, 750-CCA)
2	4K-3094	[4]	STUD (3/8-16X10.49-IN)
3	8T-4896	[35]	WASHER-HARD (10.2X18.5X2.5-MM THK)
4	6V-8801	[9]	NUT (3/8-16-THD)
5	3K-6060	[4]	LOCKNUT (3/8-16-THD)
6	8W-7136	[2]	HOLD-DOWN AS
7	110-6399	[1]	CABLE AS
	1S-7251	[1]	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	5P-0747 BE		CABLE (00-GA, BLACK)
8	110-6398	[1]	CABLE AS
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	5P-0747 BE		CABLE (00-GA, BLACK)
	7N-5274	[1]	COVER AS-TERMINAL (BLACK)
	9G-8909	[1]	COVER-TERMINAL (BLACK)
	3S-6050	[1]	TERMINAL AS-BATTERY (NEGATIVE)
9	3E-5383	[1]	SENDER AS-POSITION
10	5P-8167	[4]	BOLT (3/8-16X0.625-IN)
11	9G-9150	[9]	CLIP
12	6V-6892	[3]	SCREW-MACHINE (6-32X0.25-IN)
13	123-3695	[1]	PLATE
14	5M-3062	[21]	BOLT (3/8-16X0.75-IN)
15	9M-8406	[7]	CLIP (LOOP)
16	116-9981	[1]	CABLE AS
	1S-7251	[1]	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
	5P-0761 BE		CABLE (00-GA, RED)
	8N-0869	[1]	COVER-TERMINAL (RED)
	8N-1725	[1]	COVER AS-TERMINAL (RED)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
	3S-6049	[1]	TERMINAL AS-BATTERY (POSITIVE)
17	8W-3630	[1]	CABLE AS
	3S-6050	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	1M-6119	[2]	BOLT (5/16-18X1.375-IN)
	1M-6120	[2]	NUT (5/16-18-THD)
	3S-6049	[1]	TERMINAL AS-BATTERY (POSITIVE)
	3S-2093	[2]	STRAP-CABLE
	5P-0747 BE		CABLE (00-GA, BLACK)
	7N-5274	[1]	COVER AS-TERMINAL (BLACK)
	8N-1725	[1]	COVER AS-TERMINAL (RED)
18	8M-2770	[5]	CLIP (LOOP)
19	8X-5489	[5]	SLEEVE
20	4D-7794	[7]	CLIP
21	104-5464	[1]	HARNESS AS
22	3T-3047	[1]	CLIP AS
23	8K-1433	[1]	GROMMET
24	101-8169	[1]	HARNESS AS-REAR CHASSIS
25	5C-2890 M	[6]	NUT (M6X1-THD)
26	9X-8256	[6]	WASHER (6.6X12X2-MM THK)
27	8C-6207 Y	[2]	LAMP GP-SIGNAL
	7N-7779	[2]	SOCKET-CONNECTOR (14-GA TO 18-GA)
	7N-7780	[1]	PIN-CONNECTOR (14-GA TO 18-GA)
	7N-7782	[1]	HOUSING-PLUG (14-GA TO 18-GA)
	8T-4134 M	[3]	NUT (M6X1-THD)
28	9G-9152	[2]	CLIP
29	5S-7349	[4]	BOLT (1/4-20X0.5-IN)
30	8T-4205	[10]	WASHER-HARD (7.2X14.5X2-MM THK)
31	6V-8185	[4]	NUT (1/4-20-THD)
32	3S-2093	[6]	STRAP-CABLE
33	5P-1075	[6]	WASHER-HARD (10.2X22.5X3-MM THK)
34	3T-1815	[1]	ALARM GP
35	8T-9101	[1]	BOLT (3/8-16X2.75-IN)
36	6V-8188	[2]	NUT (1/2-13-THD)
37	8T-4223	[2]	WASHER-HARD (13.5X25.5X3-MM THK)
38	7G-1060	[1]	STRAP AS-GROUND
39	113-2055	[1]	HARNESS AS-ENGINE
40	101-8172	[1]	HARNESS AS-REAR
41	9S-0174	[1]	CIRCUIT BREAKER AS (60-AMPERE)
	1H-3244	[2]	LOCKWASHER
	6V-8365	[2]	SCREW-MACHINE (1/4-28X0.5-IN)
42	3E-7279	[1]	SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)
	5C-2890 M	[2]	NUT (M6X1-THD)
43	6V-0395	[4]	BOLT-12 POINT HEAD (1/4-20X0.625-IN)
44	6V-4283	[1]	PLATE-IDENTIFICATION (ALTERNATOR RESET)
45	5L-4507	[2]	SCREW-MACHINE (10-32X0.875-IN)
46	4B-4274	[2]	WASHER (5.5X13X1.2-MM THK)
47	101-7740	[1]	SWITCH AS-MAGNETIC (MAIN POWER RELAY)
	102-8807	[1]	KIT-CONNECTING PLUG (2-PIN)
			(KIT INCLUDES PLUG & WEDGE)
	102-8812	[1]	SEAL
	3E-3362	[1]	WEDGE-PLUG LOCK (2-PIN)
	6V-8186	[2]	NUT-FULL (5/16-24-THD)
		[1]	SLEEVE
	8T-8730	[2]	SOCKET-CONNECTOR (16-GA TO 18-GA)
48	7C-4354	[3]	CLIP
49	8W-1614	[1]	CLIP
50	8W-8527	[1]	SLEEVE
51	8W-8528	[4]	SLEEVE
52	7N-0718 Y	[1]	SWITCH GP-DISCONNECT (BATTERY)(BATTERY)
53	113-7753	[1]	PLATE
54	4S-4455	[1]	CLIP
55	101-8171	[1]	HARNESS AS-REAR LIGHTING
56	061-7661	[1]	CABLE AS
	5P-0747 BE		CABLE (00-GA, BLACK)
	1S-7251	[2]	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
57	5K-0906	[1]	BOLT (5/16-18X0.625-IN)
58	8T-4224	[1]	WASHER-HARD (8.8X16X2-MM THK)
59	123-3692	[1]	ARM
60	7I-4717	[1]	PLATE AS
	1F-0750	[2]	NUT-WELD (3/8-16-THD)
61	8M-2772	[1]	CLIP (LOOP)
62	7X-0291	[2]	BOLT (3/8-16X3.75-IN)
63	105-8827 Y	[1]	SUPPRESSOR GP-ELECTRONIC
64	118-0274	[1]	PLATE
65	7X-0575	[2]	WASHER-HARD (10.2X22.5X5-MM THK)
66	8H-8648	[1]	PLATE-INSTRUCTION (DISCONNECT SWITCH)
67	4L-6454	[2]	BOLT (3/8-16X1-IN)
68	8T-4226	[1]	WASHER-PLATED (10.5X45X3-MM THK)
69	123-3689	[1]	PLATE AS
	5M-6687	[1]	STUD-TAPERLOCK (3/8-16X1.28-IN)
70	9L-6331	[2]	BRACKET
71	8T-9364	[2]	BOLT (1/4-20X0.625-IN)
72	123-3688	[1]	PLATE AS
	7L-0811	[1]	DOWEL
73	7K-1181	[2]	STRAP-CABLE
74	5S-7379	[1]	BOLT (3/8-16X0.875-IN)
	B		USE AS REQUIRED
	E		ORDER BY THE CENTIMETER
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
