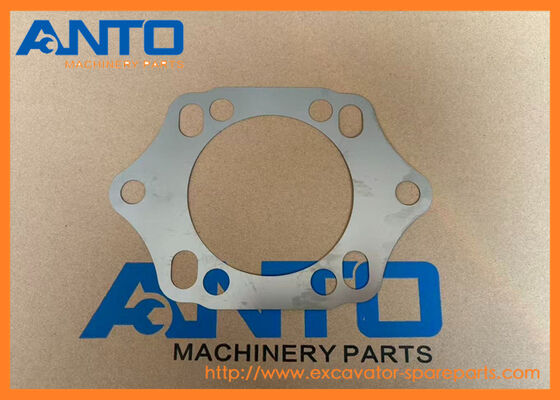

- 708-2H-05120 7082H05120 Shim KOMATSU Excavator Spare Parts For PC400LC-8 PC450LC-8
| Name |
Shim |
| Parts No |
708-2H-05120 7082H05120 |
| Machine Model |
PC400 PC450 PC490 PC550 |
| Category |
Piston Pump,Inner Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Precision axial clearance adjustment |
| Tune the critical axial gap between rotating and stationary mating components (cylinder block, valve plate, retainer assembly). |
| |
| 2.Control internal oil leakage |
| Maintain design-specified clearance to restrict excessive hydraulic oil bypass inside the pump; prevent pressure drop and loss of pump output flow. |
| |
| 3.Balance friction & wear |
| Too large clearance: heavy internal leakage, low working pressure, slow machine movement, overheating. |
| Too small clearance: metal-to-metal contact, abrasive wear, seizure, pump burning. |
| |
| 4.Compensate machining tolerance & component wear |
| Offset manufacturing deviations and wear after overhaul, restoring pump original performance after repair. |
| |
| 5.Stabilize rotating assembly alignment |
| Reduce vibration, noise and uneven load on pistons, shoes and valve plate during high-speed rotation. |
EXCAVATORS PC400 PC450 PC490 PC550
MOBILE CRUSHERS AND RECYCLERS BR580JG Komatsu
- More other shim parts fit for KOMATSU machine
| 425-15-14240 SHIM 0.5MM |
| 538, 542, 558, 568, AIR, D275A, D275AX, D375A, D475A, D475ASD, D575A, FRONT, WA380, WA380Z, WA430, WA470, WA480 |
| |
| 421-70-11331 SHIM 1.0MM |
| WA250PT, WA380, WA420, WA430, WA450, WA470, WA480, WA700, WA800, WA900 |
| |
| 23B-70-31620 SHIM, 0.5MM |
| GD555, GD655, GD675 |
| |
| 714-07-24280 SHIM, 0.5MM (KIT) |
| WA450, WA470, WA480 |
| |
| 421-70-11481 SHIM, 3.0MM |
| AIR, FRONT, WA250PT, WA250PTL, WA320, WA320PT, WA320PZ, WA380, WA380Z, WA400, WA420, WA430, WA470, WA480 |
| |
| 423-70-11811 SHIM, T=3.0MM |
| AIR, FRONT, WA320, WA320PZ, WA380, WA380Z, WA420, WA430 |
| |
| 421-57-31190 SHIM |
| AIR, BATTERY, FRONT, HYDRAULIC, WA100, WA150, WA150PZ, WA180, WA200, WA200PT, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380, WA430, WA470, WA480, WA500 |
| |
| 425-14-31320 SHIM |
| HYDRAULIC, WA430, WA470, WA480, WA500 |
| |
| 714-07-44420 SHIM |
| WA470, WA480 |
| |
| 23D-22-00020 SHIM KIT |
| GD305A, GD355A, GD405A |
| |
| 23D-22-00030 SHIM KIT |
| GD305A, GD355A, GD405A |
| |
| 23D-22-00040 SHIM KIT |
| GD305A, GD355A, GD405A |
| |
| 23A-22-11160 SHIM, 0.2MM |
| GD555, GD655, GD675 |
| |
| 23A-22-11170 SHIM, 0.1MM |
| GD555, GD655, GD675 |
| |
| 23B-735-3350 SHIM, 1.0MM |
| GD555, GD655, GD675, GD755 |
| |
| 421-46-11372 SHIM, 0.1 MM |
| AIR, FRONT, GD555, GD655, GD675, GD755, WA320, WA320PZ, WA380, WA400, WA420, WA430, WA450, WA470, WA480 |
| |
| 23B-735-3250 SHIM, 0.5MM |
| GD555, GD655, GD675 |
| |
| 23A-01-00040 SHIM ASS'Y |
| GD505A, GD521A |
| |
| 364-40-11470 SHIM, 0.5MM |
| GD30, GD31 |
| |
| 364-40-11460 SHIM, 0.35MM |
| GD30, GD31 |
| |
| 364-40-11450 SHIM, 0.2MM |
| GD30, GD31 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
708-2H-00450 |
[1] |
Pump Assembly Komatsu |
212 kg. |
| |
|
|
["SN: 70199-UP"] |$0. |
|
| |
708-2H-01450 |
[1] |
Pump Subassembly Komatsu China |
|
| |
|
|
["SN: 70199-UP"] |$1. |
|
| 1 |
708-2H-21860 |
[1] |
Plate Komatsu |
0.04 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |
|
| |
708-2H-04850 |
[1] |
Gear Kit Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |$3. |
|
| 2 |
708-2H-32311 |
[1] |
Gear, Bevel Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP"] |
|
| 3 |
708-2H-32341 |
[1] |
Pinion Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP"] |
|
| 4 |
708-2H-32320 |
[1] |
Bushing Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |
|
| 5 |
708-2H-32330 |
[1] |
Impeller Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |
|
| 6 |
01010-61220 |
[2] |
Bolt Komatsu |
0.035 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] analogs:["0101031220", "01010E1220"] |
|
| 7 |
708-2H-32350 |
[2] |
Washer Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |
|
| 8 |
708-2H-32360 |
[1] |
Shaft Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |
|
| 9 |
708-2H-32370 |
[1] |
Cover Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |
|
| 10 |
07000-A2105 |
[1] |
O-ring Komatsu |
0.003 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |
|
| 11 |
708-2H-05120 |
[1] |
Shim Kit Komatsu |
0.000 kg. |
| |
|
|
["SN: 70199-UP", "SCC: C2"] |
|
| 12 |
01010-81235 |
[2] |
Bolt Komatsu |
0.048 kg. |
| |
|
|
["SN: 70199-UP"] analogs:["0101051235", "01010E1235", "801015136"] |
|
| 13 |
01643-31232 |
[2] |
Washer Komatsu |
0.027 kg. |
| |
|
|
["SN: 70199-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
