306-8797 3068797 Chassis Wiring Harness Excavator Electric Parts For C9 330D 336D

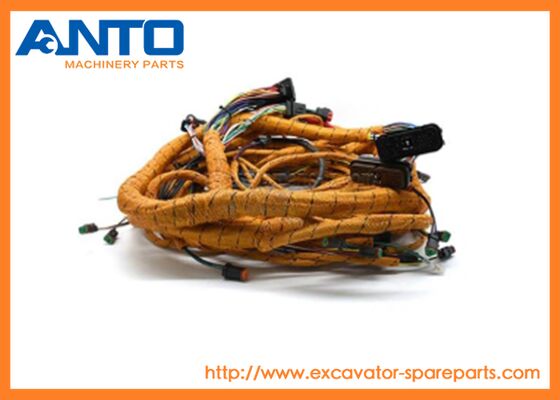

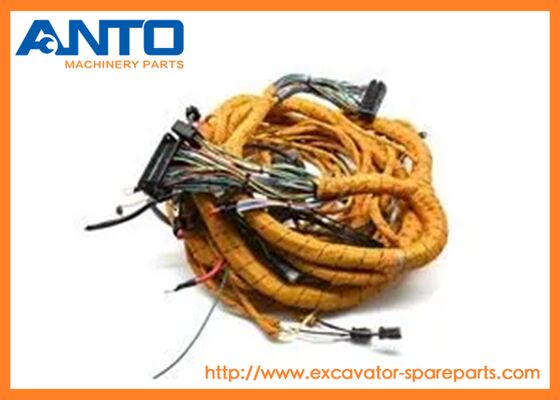

Large Image : 306-8797 3068797 Chassis Wiring Harness Excavator Electric Parts For C9 330D 336D

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	306-8797

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Electrical Spare Parts	Model:	330D 336D
Parts No.:	306-8797	Parts Name:	Main Wire Harness
Warranty:	3/6/12 Months	Package:	Standard Box Package
Highlight:	C9 excavator wiring harness , 330D chassis wiring harness , 336D excavator electric parts

306-8797 3068797 Chassis Wiring Harness Excavator Electric Parts For C9 330D 336D

Specifiion

Excavator spare parts name	Main wiring harness
Equipment Model	330D 336D
Parts Category	Excavator electrical spare parts
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Basic definition & purpose

Core Function:

It serves as the central electrical nervous system for the excavator's chassis, transmitting electrical power and control signals between the main controller (ECM), dashboard, sensors, actuators, lights, and other electronic components mounted on the undercarriage, frame, and external chassis.

Role:

It organizes, protects, and connects all external chassis electrical circuits, ensuring reliable communication and power distribution in harsh working environments.

Appliion

330D Series: 330D, 330D L, 330D LN

336D Series: 336D, 336D L, 336D LN

340D Series: 340D L

Mobile Hydraulic Power Units: 330D, 336D

parts diagram

Pos.	Part No	Qty	Parts name	Comments
1	2G-8767	[2]	WASHER (10.5X60X3-MM THK)
2	3S-2093 C	[43]	STRAP-CABLE
3	263-9574	[2]	BATTERY AS (12-VOLT, MAINTENANCE FREE)
4	4N-0205	[2]	SPACER (0.42X0.75X0.6-IN THK)
5	5I-8270	[1]	COVER-BATTERY
6	6G-2256	[2]	CLAMP
7	6G-2263	[3]	SPACER (10.5X19X28.5-MM THK)
8	6W-6005	[1]	HOLD-DOWN-BATTERY
9	7I-2673	[5]	STRAP-CABLE
10	7K-1181	[25]	STRAP-CABLE
11	7Y-5456	[2]	GROMMET
12	7Y-8165	[2]	GROMMET
13	087-4587	[1]	GROMMET
14	091-9035	[1]	SPACER (11X25X20-MM THK)
15	107-8618	[1]	SENSOR GP-TEMPERATURE (AMBIENT AIR)
	102-8803	[1]	KIT-RECEPTACLE (3-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
	8T-8729	[3]	PIN-CONNECTOR (16-GA TO 18-GA)
	112-4550 E		SLEEVE (31-CM)
16	111-4836	[9]	CLIP
17	111-4837	[12]	CLIP
18	111-4838	[16]	CLIP
19	111-4839	[16]	STRAP
20	116-0118 C	[13]	CLIP
21	128-8886	[1]	STRAP AS-GROUND
22	130-1433	[1]	SPACER (11X25X17-MM THK)
23	132-1806	[1]	STRAP AS-GROUND
24	148-5018	[1]	GROMMET
25	170-6929	[1]	CABLE AS
	5P-0761 E		CABLE (00-GA, RED)(31-CM)
	9G-0002	[1]	COVER AS-TERMINAL (RED)(BATTERY POSITIVE)
	9G-0005	[1]	COVER AS-TERMINAL (BLACK)(BATTERY NEGATIVE)
			(EACH COVER AS INCLUDES)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8C-5918	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	8T-9756	[1]	TERMINAL AS-BATTERY (POSITIVE)
			(EACH TERMINAL AS INCLUDES)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
26	204-1611	[1]	STRAP (DUAL)
27	204-1614	[1]	BRACKET AS
28	231-1827	[1]	CABLE AS
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	5P-0747 E		CABLE (00-GA, BLACK)(23-CM)
	9G-0003	[1]	COVER AS-TERMINAL (BLACK)(BATTERY NEGATIVE)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-8909	[1]	COVER-TERMINAL (BLACK)(DISCONNECT SWITCH)
	8T-9757	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
29	238-2501	[1]	KNOB
30	238-2528	[1]	ROD
31	251-0153	[1]	BRACKET AS
32	251-0467	[1]	BRACKET AS
33	251-0625	[1]	CABLE AS
	1S-7251	[1]	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
	5P-0761 E		CABLE (00-GA, RED)(413-CM)
	8N-0869	[1]	COVER-TERMINAL (RED)(STARTING MOTOR)
	9G-0004	[1]	COVER AS-TERMINAL (RED)(BATTERY)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8C-5917	[1]	TERMINAL AS-BATTERY (POSITIVE)
	1M-6120	[1]	NUT (5/16-18-THD)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
34	259-5130	[1]	BRACKET AS
35	259-5132	[1]	BRACKET AS
36	291-7780	[1]	BRACKET AS
37	306-8797 C	[1]	HARNESS AS-CHASSIS
	102-8802	[4]	KIT-RECEPTACLE (2-PIN)
	102-8803	[3]	KIT-RECEPTACLE (3-PIN)
	102-8804	[1]	KIT-RECEPTACLE (4-PIN)
	102-8806	[1]	KIT-RECEPTACLE (8-PIN)
	176-9299	[2]	KIT-RECEPTACLE (3-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
	8T-8729	[8]	PIN-CONNECTOR (16-GA TO 18-GA)
	8T-8730	[52]	SOCKET-CONNECTOR (16-GA TO 18-GA)
	3S-2093	[31]	STRAP-CABLE
	3T-4688	[1]	TERMINAL-RING (4-GA, 7/16-IN SCREW)
	7Y-3962	[1]	TERMINAL-BULLET (MALE)
	7Y-3963	[1]	TERMINAL-BULLET (FEMALE)
	8T-8737	[168]	PLUG-SEAL
	8T-8827	[2]	BOOT (RED)
	9X-4998	[1]	SOCKET (14-GA TO 16-GA)
	103-2529 E		HOSE (80-CM)
	9W-0852	[17]	PIN-CONNECTOR (14-GA TO 16-GA)
	9W-0844	[11]	SOCKET-CONNECTOR (14-GA TO 16-GA)
	116-0126	[1]	HOUSING-PLUG
	116-0128	[2]	SEAL
	116-0255	[2]	TERMINAL-BLADE (10-GA TO 20-GA)
	119-3662 E		TUBE-HEAT SHRINK (10.85-MM DIA)(46-CM)
	121-1038	[1]	HOUSING-RECEPTACLE
	121-1039	[1]	TERMINAL (MALE)
	125-7874 E		TUBE-HEAT SHRINK (5.72-MM DIA)(65-CM)
	125-7875 E		TUBE-HEAT SHRINK (7.44-MM DIA)(35-CM)
	9X-3402	[120]	SOCKET-CONNECTOR (16-GA TO 18-GA)
	126-1768	[10]	SOCKET-CONNECTOR (14-GA TO 16-GA)
	9G-4343	[4]	TERMINAL-RING (4-GA, 1/4-IN SCREW)
	5P-3454	[1]	TERMINAL-RING (4-GA, 5/16-IN SCREW)
	9G-4336	[1]	TERMINAL-RING (4-GA, 3/8-IN SCREW)
	9G-4344	[1]	TERMINAL-RING (4-GA, 1/2-IN SCREW)
	2L-8049	[1]	TERMINAL-RING (6-GA, NO. 10 SCREW)
			-OR-
	2L-8057	[1]	TERMINAL-RING (8-GA, NO. 10 SCREW)
	2L-8050	[1]	TERMINAL-RING (6-GA, 1/4-IN SCREW)
			-OR-
	2L-8058	[1]	TERMINAL-RING (8-GA, 1/4-IN SCREW)
	2L-8069	[6]	TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)
	2L-8075	[4]	TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)
	2L-8079	[1]	TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)
	134-3297	[1]	SEAL
	9X-3401	[58]	PIN-CONNECTOR (16-GA TO 18-GA)
	153-2620	[1]	PLUG AS-CONNECTOR (54-PIN, BLACK)
	163-6759	[1]	SEAL
	153-2630	[1]	PLUG AS-CONNECTOR (54-PIN, BROWN)
	163-6759	[1]	SEAL
	155-2270	[18]	KIT-CONNECTING PLUG (2-PIN)
	155-2271	[1]	KIT-CONNECTING PLUG (4-PIN)
	155-2260	[2]	KIT-CONNECTING PLUG (3-PIN)
			(EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
	160-7689	[1]	PLUG AS-CONNECTOR (70-PIN)
	159-9322	[1]	SEAL-O-RING
	163-6637	[1]	RECEPTACLE AS-CONNECTOR (54-PIN, BLACK)
	163-6773	[2]	PLUG-SEAL
	174-3016	[2]	PLUG AS-CONNECTOR (3-PIN)
	230-4009	[2]	PLUG AS-CONNECTOR (12-PIN)
			(EACH INCLUDES)
	264-7034	[1]	SEAL-CONNECTOR
	230-4011	[8]	PLUG AS-CONNECTOR (2-PIN)
			(EACH INCLUDES)
	264-7029	[1]	SEAL-CONNECTOR
	230-4013	[4]	PLUG AS-CONNECTOR (3-PIN)
			(EACH INCLUDES)
	264-7030	[1]	SEAL-CONNECTOR
	230-5010	[2]	PLUG AS-CONNECTOR (6-PIN)
			(EACH INCLUDES)
	264-7032	[1]	SEAL-CONNECTOR
	231-2295	[1]	PLUG AS-CONNECTOR (8-PIN)
	264-7033	[1]	SEAL-CONNECTOR
	243-4505	[7]	RECEPTACLE AS-CONNECTOR (2-PIN)
	243-4506	[2]	RECEPTACLE AS-CONNECTOR (3-PIN)
	243-4508	[2]	RECEPTACLE AS-CONNECTOR (6-PIN)
	243-4509	[1]	RECEPTACLE AS-CONNECTOR (8-PIN)
	243-4510	[2]	RECEPTACLE AS-CONNECTOR (12-PIN)
38	132-5789	[8]	CLIP (LADDER)
39	4K-8864	[2]	CLIP (LOOP)
40	4P-7428 C	[2]	CLIP (LADDER)
41	5I-8748 C	[1]	SPACER (11X18X5-MM THK)
42	5C-7261 M	[1]	NUT (M8X1.25-THD)
43	5C-7883 M	[4]	BOLT-SOCKET HEAD (M6X1X16-MM)
44	5P-4116 C	[2]	WASHER-HARD (8.8X20.5X2-MM THK)
45	5P-8439	[1]	GROMMET
46	6K-8178	[6]	CLIP (LOOP)
47	7X-2548 M	[1]	BOLT (M12X1.75X16-MM)
48	7X-2621 CM	[5]	BOLT (M10X1.5X12-MM)
49	350-8388 C	[1]	SPACER (11X25X65-MM THK)
50	8M-2770	[1]	CLIP (LOOP)
51	8T-4121	[62]	WASHER-HARD (11X21X2.5-MM THK)
52	8T-4133 M	[1]	NUT (M10X1.5-THD)
53	8T-4136 CM	[11]	BOLT (M10X1.5X25-MM)
54	8T-4137 M	[20]	BOLT (M10X1.5X20-MM)
55	8T-4172 M	[1]	BOLT (M10X1.5X80-MM)
56	306-8803 C	[1]	BRACKET AS
57	8T-4182 M	[1]	BOLT (M10X1.5X45-MM)
58	8T-4185 M	[1]	BOLT (M10X1.5X50-MM)
59	8T-4186 M	[1]	BOLT (M10X1.5X40-MM)
60	8T-4191 M	[9]	BOLT (M10X1.5X16-MM)
61	8T-4195 M	[4]	BOLT (M10X1.5X30-MM)
62	8T-4196 M	[7]	BOLT (M10X1.5X35-MM)
63	8T-4199 M	[1]	BOLT (M8X1.25X12-MM)
64	8T-4223	[1]	WASHER-HARD (13.5X25.5X3-MM THK)
65	8T-4226	[1]	WASHER-PLATED (10.5X45X3-MM THK)
66	8T-5005 M	[1]	BOLT (M10X1.5X70-MM)
67	8T-6466 M	[1]	BOLT (M10X1.5X60-MM)
68	9X-8256	[4]	WASHER (6.6X12X2-MM THK)
69	204-1673	[1]	STRAP-CABLE
	C		CHANGE FROM PREVIOUS TYPE
	E		ORDER BY THE CENTIMETER
	M		METRIC PART

306-8797 3068797 Chassis Wiring Harness Excavator Electric Parts For C9 330D 336D 0

Description

Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Appliions:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts alog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX

Tag:

Contact Person: Mr. Paul

Tel: 0086-15920526889

Fax: +86-20-89855265

Other Products

451-2628 575-9333 Position Sensor Motor Grader Spare Parts Fit For C7.1 120

Engine model: C7.1

Machine model: 120

Appliion: Motor Grader

Product name: Position Sensor

3979506 3948097 3948096 3945864 Camshaft Excavator Engine Parts For R210LC7A R250LC7A

Category: Engine Parts

Machine model: R210LC7A R210NLC7A R250LC7A

Appliion: Excavator

Product name: Camshaft

381-2499 3812499 1982713 C7 Engine Wiring Harness For Excavator Electric Parts 324D 325D

Type: Excavator engine Parts

Product name: wiring harness

Part number: 381-2499 3812499 1982713

Model number: 324D 325D 329D

K9001933 410116-00395 Valve Excavator Electric Parts For DOOSAN DX140W DX170W DX180LC DX190W DX210W

Model number: DX140W DX170W DX180LC DX190W DX210W DX225LL DX235LCR DX340LC DX350LC DX380LC

Product name: Valve

Part number: K9001933 410116-00395

Transportation: By sea/air By express

203-60-62161 24V Solenoid Valve Komatsu Excavator Spare Parts For PC120 PC100 PC60

Type: Excavator Spare Part

Part name: Solenoid Valve

Model number: PC100 PC120 PC60 PC75UU

Part number: 203-60-62161

306-8797 3068797 Chassis Wiring Harness Excavator Electric Parts For C9 330D 336D

306-8797 3068797 Chassis Wiring Harness Excavator Electric Parts For C9 330D 336D

C9 excavator wiring harness

330D chassis wiring harness

336D excavator electric parts

excavator spare parts,

excavator replacement parts,

excavator accessories
