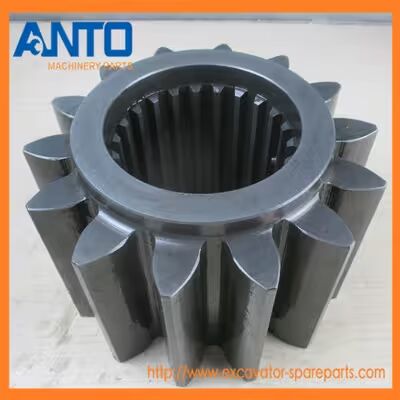

- VOE14524406 Excavator Swing Pinion Gear Applied To EC700B VOE14609494 Swing Gearbox
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
The EC360B is an excavator model from Construction Equipment ( CE). The term "pinion gear" typically refers to a specific gear used in the final drive or swing drive system of an excavator.
In an excavator, the pinion gear is a crucial component of the final drive assembly. It meshes with the larger ring gear to transfer power from the hydraulic motor to the tracks, allowing the excavator to move forward or backward. The final drive is responsible for providing torque and power to the tracks, enabling the machine to propel itself and perform various operations on the construction site.
If you are looking for a replacement pinion gear for the EC360B excavator, it's essential to ensure you get the correct part that matches the specifiions and fits the model. To find the appropriate pinion gear, I recommend contacting an authorized CE dealer or an authorized parts supplier. They will have access to the official CE parts alog and can help you find the right pinion gear for your specific EC360B excavator model. Additionally, they can provide information on installation and any other support you may need for the replacement process.
| Excavator spare parts name |
swing pinion gear |
| Equipment Model |
EC700B |
| Parts Category |
Excavator swing drive |
| Spare parts Condition |
Brand new |
| MOQ of order(PCS, SET) |
1 |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
| The hydraulic swing motor spins the gearbox’s internal planetary gears. |
| The planetary system reduces speed and multiplies torque. |
| The VOE14524406 pinion is mounted on the gearbox output shaft. |
| Its teeth mesh with the fixed slew ring gear. |
| As the pinion rotates, it “walks” around the ring gear, rotating the entire upper carriage. |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
|
[2] |
Swing Motor |
|
| 2 |
VOE14609494 |
[1] |
Swing gearbox |
|
| 3 |
VOE14535293 |
[1] |
Swing motor |
|
| 4 |
VOE14512785 |
[1] |
Level gauge |
|
| 5 |
VOE14531019 |
[2] |
Washer |
|
| 6 |
VOE14526643 |
[2] |
Plate |
|
| 7 |
VOE14531024 |
[2] |
Pin |
|
| 8 |
VOE14524406 |
[2] |
Pinion |
|
| 9 |
VOE997464 |
[4] |
Hexagon screw |
|
| 10 |
VOE991649 |
[24] |
Hexagon screw |
|
| 11 |
VOE60110301 |
[24] |
Washer |
|
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
