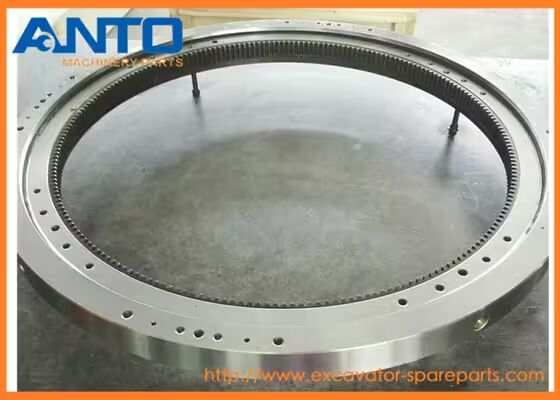

YN40FU0001F1 Slewing Ring Applied To Kobelco SK200 SK210 SK200 MARK IV SK200-5 SK200-6 SK200-8

Large Image : YN40FU0001F1 Slewing Ring Applied To Kobelco SK200 SK210 SK200 MARK IV SK200-5 SK200-6 SK200-8

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	SK200

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	1-3 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Excavator Swing Bearing	Part NO.:	YN40FU0001F1
Machinery Model:	SK200,SK200LC,SK210,SK210LC	Parts Name:	SLEWING RING
Warranty:	6 Months	Item Condition:	New 100%,
Highlight:	Kobelco excavator slewing ring , SK200 swing gear replacement , SK210 excavator swing bearing

YN40FU0001F1 Slewing Ring Applied To Kobelco SK200 SK210 SK200 MARK IV SK200-5 SK200-6 SK200-8

Description

Slewing ring or swing bearing is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load. Slewing ring support the excavator cabin.

Product description

Excavator spare parts name	Slewing Ring
Equipment Model	SK200,SK200LC,SK210,SK210LC
Parts egory	Excavator gear parts
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days
Apply for	Kobelco

We can supply these KOBELCO models as following:

(SK200) - MARK IV EXCAVATOR ASN YNU0501 (1/95-12/97)
(07-001) - LOW INSTALLATION STANDARD CRAWLER - (SC) » YN40FU0001F1
(07-002) - LOW INSTALLATION LONG CRAWLER - (LC) » YN40FU0001F1
(07-003) - LOW INSTALLATION HIGH AND WIDE LONG CRAWLER - (HWLC) » YN40FU0001F1
(SK200) - MARK IV EXCAVATOR BTW YNU0201 - YNU0500 (1/97-12/97)
(07-001) - LOW INSTALLATION » YN40FU0001F1
(07-002) - LOW INSTALLATION » YN40FU0001F1
(SK200LC) - MARK IV EXCAVATOR ASN YQU3101 (1/95-12/95)
(07-001) - LOW INSTALLATION STANDARD CRAWLER - (SC) » YN40FU0001F1
(07-002) - LOW INSTALLATION LONG CRAWLER - (LC) » YN40FU0001F1
(07-003) - LOW INSTALLATION HIGH AND WIDE LONG CRAWLER - (HWLC) » YN40FU0001F1
(SK200LC) - MARK IV EXCAVATOR BTW YQU2001 - YQU3000 (1/95-12/95)
(07-001) - LOW INSTALLATION » YN40FU0001F1
(07-002) - LOW INSTALLATION » YN40FU0001F1
(SK210) - MARK IV EXCAVATOR ASN YNU0501 (1/04-12/04)
(07-001) - LOW INSTALLATION, (STANDARD CRAWLER-(SC) » YN40FU0001F1
(07-002) - LOW INSTALLATION, (LONG CRAWLER-LC) » YN40FU0001F1
(07-003) - LOW INSTALLATION, (HIGH & WIDE LONG CRAWLER-HWLC) » YN40FU0001F1
(SK210LC) - MARK IV EXCAVATOR ASN YQU3101 (1/00-12/02)
(07-001) - LOW INSTALLATION, (STANDARD CRAWLER-(SC) » YN40FU0001F1
(07-002) - LOW INSTALLATION, (LONG CRAWLER-LC) » YN40FU0001F1
(07-003) - LOW INSTALLATION, (HIGH & WIDE LONG CRAWLER-HWLC) » YN40FU0001F1

Drawing

Pos.	Part No	Qty	Parts name	Comments
. .	24100J19880F1	[1]	LOW ASSY
. .	24100J19880F2	[1]	LOW ASSY
1	YN02FU0003P1	[1]	FRAME, LOW, F1 ONLY
1-1.	2418P51109	[2]	GUIDE, LH (WELD-ON), F1 ONLY
1-2.	2418P51111	[2]	GUIDE, RH (WELD-ON), F1 ONLY
1-3.	YN07FU1003P1	[2]	GUIDE	KOB LH, (WELD-ON), F1 ONLY
1-4.	YN07FU1004P1	[2]	GUIDE	KOB RH, (WELD-ON), F1 ONLY
1-5.	YN41CU0001P1	[4]	STEP	KOB (WELD-ON), F1 ONLY
1-6.	2418P51131	[8]	PLATE, (WELD-ON), F1 ONLY
1-7.	YN41CU0003P1	[4]	STEP	KOB (WELD-ON), F1 ONLY
2	YN40FU0001F1	[1]	SLEWING RING	KOB Superseded by part number: 24100N7440F1
2-5.	YN40FU0001S005	[2]	SEAL	KOB
2-9.	YN40FU0001S009	[1]	LUBE NIPPLE	KOB
3	YN15V00007F1	[2]	HYDRAULIC MOTOR	KOB SEE FIGURE 07-009 Superseded by part number: YN53D00001F2
6	24100U1524F1	[1]	FLEXIBLE JOINT	KOB HYDRAULIC SWIVEL JOINT
7	24100N6419F2	[20]	TRACK ROLLER	KOB SEE FIGURE 07-005 Superseded by part number: YN64D00013F1
9	2404N414	[2]	SPROCKET,21 teeth, 664mm OD	KOB Superseded by part number: 2404N262
10	2414N4188D2	[1]	COVER	KOB
11	2414N4188D1	[1]	COVER	KOB
12	2422N880	[2]	GUIDE	KOB
13	2444P803	[2]	LUBE NIPPLE,5/8" - 18 x 64mm L, 19mm Hex	KOB 5/8" - 18 UNF, Straight
14	2422T556	[1]	PLATE	KOB 90x50x Th 06mm
15	2418T12274	[1]	PACKING	KOB 90x50x Th 05mm -- Rubber
17	ZS13C20070	[36]	SCREW	KOB M20x2.50x70mm
18	ZS13C20065	[31]	SCREW	KOB M20x2.50x65mm
19	2420P1580D2	[80]	SCREW,M18 x 1.5 x 70mm	KOB M18x1.50x70mm
20	2420P1580D1	[8]	SCREW,M18 x 1.5 x 40mm	KOB M18x1.50x40mm
21	ZS13C18060	[44]	SCREW	KOB M18x2.0x60mm
22	ZS13C16110	[1]	SCREW	KOB M16x2.0x110mm
24	ZS13C12025	[13]	SCREW	KOB M12x1.75x25mm Superseded by part number: ZS18C12025
25	ZS13C10014	[2]	SCREW	KOB M10x1.50x14mm Superseded by part number: ZS18C10014
27	ZN13C16013	[1]	NUT	KOB M16x2.0mm
28	ZW13H20000	[70]	WASHER	KOB ID 20 x OD 40 x Th 4.5mm
29	ZW11X12000	[13]	WASHER	KOB ID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000
30	ZW22X12000	[10]	LOCK WASHER	KOB ID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000
31	ZW22X10000	[2]	LOCK WASHER	KOB ID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000
32	2418T17441D2	[44]	WASHER	KOB
33	24100P4395F1	[2]	WHEEL ASSY	KOB
33-1.	24100N6417F1	[1]	IDLER	KOB SEE FIGURE 07-004
33-2.	24100N6421F1	[1]	SPRING	KOB ADJUSTER, SEE FIGURE 07-008 Superseded by part number: 24100N5945F2M
34	2418P51118	[1]	PIN	KOB UNDERCOVER
35	ZS13C18050	[8]	SCREW	KOB M18x2.0x50mm
36	ZW13H18000	[8]	WASHER	KOB ID 19 x OD 36 x Th 4.5mm
37	ZW11X18000	[8]	WASHER	KOB ID 18 x OD 34 x Th 3.2mm
40	ZS18C12050	[8]	SCREW,Hex, M12 x 50mm	KOB M12x1.75x50mm
41	ZW26X12000	[8]	LOCK WASHER	KOB ID 12 x OD 21 x Th 3.0mm
42	ZN18C12010	[8]	NUT	KOB M12x1.75mm

YN40FU0001F1 Slewing Ring Applied To Kobelco SK200 SK210 SK200 MARK IV SK200-5 SK200-6 SK200-8 0

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
