3068528 3068797 2832933 Wiring Harness Excavator Spare Parts For C9 330D 330D L

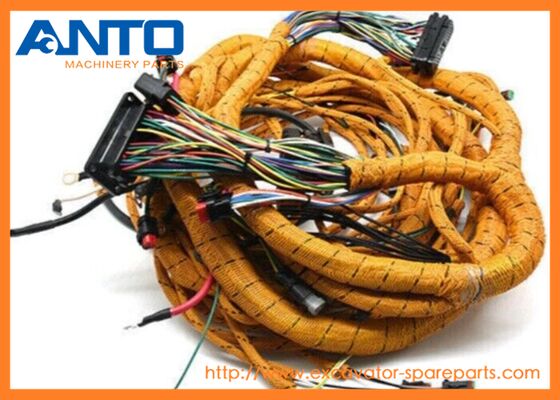

Large Image : 3068528 3068797 2832933 Wiring Harness Excavator Spare Parts For C9 330D 330D L

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	3068528 3068797 2832933

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	1210 USD / pcs
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Engine Model:	C9	Machine Model:	330D 330D L 330D LN
Appliion:	Excavator	Product Name:	Wiring Harness
Part Number:	3068528 3068797 2832933	Packing:	Standard Export Carton
Highlight:	C9 excavator wiring harness , 330D excavator spare parts , excavator electric wiring harness

3068528 3068797 2832933 Wiring Harness Excavator Spare Parts For C9 330D 330D L

Specifiion

Name	Wiring Harness
Parts No	3068528 3068797 2832933
Machine Model	330D 330D L 330D LN
Category	Battery & Wiring
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

Core functions

Transmits power and electrical signals between the ECU, sensors, injectors, actuators, and other engine components.

Ensures stable communication and power supply for normal engine operation.

Protects internal wires from heat, vibration, oil, and abrasion in harsh working environments.

Compatible models

EXCAVATOR 330D 330D L 330D LN
MOBILE HYD POWER UNIT 330D

More other harness parts fit for C A T machine

4190841 HARNESS AS-ENGINE

140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 5...

2358202 HARNESS AS-ENGINE

160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 511, 521, 522, 532, 541, 551, 552, 627G, 637D, 637E, 637G, 814F II, 815F II, 816F II, 973D, C9, CX31...

2153249 HARNESS AS-ENGINE

12H, 140M, 140M 2, 160M, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 340D L, 511, 521, 521B, 522, 522B, 532, 541, 541 ...

3239140 HARNESS AS-ENGINE

140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, ...

3669313 HARNESS AS-SENSOR

311D LRR, 311F LRR, 312D, 312D L, 312D2, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, 324D, 324D L, 324D LN, 325D,...

2457821 HARNESS AS-HEATER & AIR COND

320D L, 323D L, 324D, 324D L, 324D LN, 325D, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 345C, 345...

2801281 HARNESS AS-LIGHTING

325D L, 330D L, 345C L

2510624 HARNESS AS-PLATFORM

330D LN

2956596 HARNESS AS-LIGHTING

330D L, 330D LN, 336D L

2595124 HARNESS AS-CONTROL

330D LN

2595123 HARNESS AS-CONTROL

330D LN

2756937 HARNESS AS-CONTROL

330D L, 330D LN, 336D L, 336D LN

2832933 HARNESS AS-CHASSIS

330D, 330D L, 330D LN

2756864 HARNESS AS-CHASSIS

330D, 330D L, 330D LN

2382303 HARNESS AS-LIGHTING

325D, 325D FM, 325D L, 329D, 329D L, 329D LN

2382302 HARNESS AS-LIGHTING

325D, 325D FM, 325D

Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	2G-8767	[2]	WASHER (10.5X60X3-MM THK)
2	3S-2093	[42]	STRAP-CABLE
3	3T-5760	[2]	BATTERY GP (12-VOLT, 750-CCA)
4	4N-0205	[1]	SPACER (0.42X0.75X0.6-IN THK)
5	5I-8270	[1]	COVER-BATTERY
6	6G-2256	[2]	CLAMP
7	6G-2263	[3]	SPACER (10.5X19X28.5-MM THK)
8	6W-6005	[1]	HOLD-DOWN-BATTERY
9	7I-2673	[5]	STRAP-CABLE
10	7K-1181	[25]	STRAP-CABLE
11	7Y-5456	[2]	GROMMET
12	7Y-8165	[2]	GROMMET
13	087-4587	[1]	GROMMET
14	091-9035	[1]	SPACER (11X25X20-MM THK)
15	107-8618	[1]	SENSOR GP-TEMPERATURE (AMBIENT AIR)
	102-8803	[1]	KIT-RECEPTACLE (3-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
	186-3735	[3]	PIN-CONNECTOR (16-GA TO 18-GA)
	112-4550 E		SLEEVE (31-CM)
16	111-4836	[9]	CLIP
17	111-4837	[12]	CLIP
18	111-4838	[16]	CLIP
19	111-4839	[16]	STRAP
20	116-0118	[14]	CLIP
21	128-8886	[1]	STRAP AS-GROUND
22	130-1433	[1]	SPACER (11X25X17-MM THK)
23	132-1806	[1]	STRAP AS-GROUND
24	148-5018	[1]	GROMMET
25	170-6929	[1]	CABLE AS
	5P-0761 E		CABLE (00-GA, RED)(31-CM)
	9G-0002	[1]	COVER AS-TERMINAL (RED)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-0005	[1]	COVER AS-TERMINAL (BLACK)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8C-5918	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
	8T-9756	[1]	TERMINAL AS-BATTERY (POSITIVE)
26	204-1611	[1]	STRAP (DUAL)
27	204-1614	[1]	BRACKET AS
28	231-1827	[1]	CABLE AS
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	5P-0747 E		CABLE (00-GA, BLACK)(23-CM)
	9G-0003	[1]	COVER AS-TERMINAL (BLACK)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-8909	[1]	COVER-TERMINAL (BLACK)
	8T-9757	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
29	238-2501	[1]	KNOB
30	238-2528	[1]	ROD
31	251-0153	[1]	BRACKET AS
32	251-0467	[1]	BRACKET AS
33	251-0625	[1]	CABLE AS
	1S-7251	[1]	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)
	5P-0761 E		CABLE (00-GA, RED)(413-CM)
	8N-0869	[1]	COVER-TERMINAL (RED)
	9G-0004	[1]	COVER AS-TERMINAL (RED)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8C-5917	[1]	TERMINAL AS-BATTERY (POSITIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
34	259-5130	[1]	BRACKET AS
35	259-5132	[1]	BRACKET AS
36	291-7780	[1]	BRACKET AS
37	306-8528	[1]	HARNESS AS-CHASSIS
38	132-5789	[8]	CLIP (LADDER)
39	4K-8864	[2]	CLIP (LOOP)
40	4P-7428	[1]	CLIP (LADDER)
41	4P-7429	[1]	CLIP (LADDER)
42	5C-7261 M	[1]	NUT (M8X1.25-THD)
43	5C-7883 M	[4]	BOLT-SOCKET HEAD (M6X1X16-MM)
44	5P-4116	[1]	WASHER-HARD (8.8X20.5X2-MM THK)
45	5P-8439	[1]	GROMMET
46	6K-8178	[6]	CLIP (LOOP)
47	7X-2548 M	[1]	BOLT (M12X1.75X16-MM)
48	7X-2621 M	[7]	BOLT (M10X1.5X12-MM)
49	8B-6561	[2]	SPACER (5.56X22.22X55.58-MM THK)
50	8M-2770	[1]	CLIP (LOOP)
51	8T-4121	[62]	WASHER-HARD (11X21X2.5-MM THK)
52	8T-4133 M	[1]	NUT (M10X1.5-THD)
53	8T-4136 M	[9]	BOLT (M10X1.5X25-MM)
54	8T-4137 M	[21]	BOLT (M10X1.5X20-MM)
55	8T-4172 M	[1]	BOLT (M10X1.5X80-MM)
56	8T-4178 M	[1]	BOLT (M10X1.5X90-MM)
57	8T-4182 M	[1]	BOLT (M10X1.5X45-MM)
58	8T-4185 M	[1]	BOLT (M10X1.5X50-MM)
59	8T-4186 M	[1]	BOLT (M10X1.5X40-MM)
60	8T-4191 M	[8]	BOLT (M10X1.5X16-MM)
61	8T-4195 M	[4]	BOLT (M10X1.5X30-MM)
62	8T-4196 M	[6]	BOLT (M10X1.5X35-MM)
63	8T-4199 M	[1]	BOLT (M8X1.25X12-MM)
64	8T-4223	[1]	WASHER-HARD (13.5X25.5X3-MM THK)
65	8T-4226	[1]	WASHER-PLATED (10.5X45X3-MM THK)
66	8T-5005 M	[1]	BOLT (M10X1.5X70-MM)
67	8T-6466 M	[1]	BOLT (M10X1.5X60-MM)
68	9X-8256	[4]	WASHER (6.6X12X2-MM THK)
	E		ORDER BY THE CENTIMETER
	M		METRIC PART

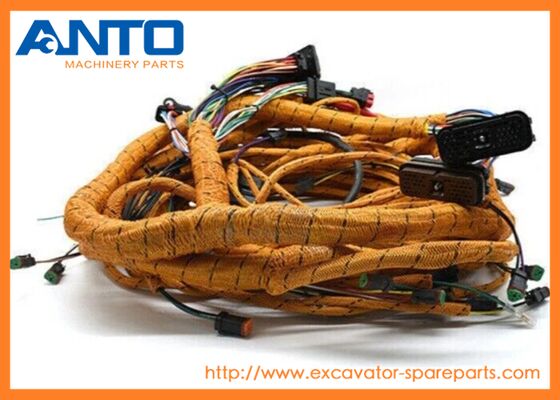

3068528 3068797 2832933 Wiring Harness Excavator Spare Parts For C9 330D 330D L 0

3068528 3068797 2832933 Wiring Harness Excavator Spare Parts For C9 330D 330D L 1

3068528 3068797 2832933 Wiring Harness Excavator Spare Parts For C9 330D 330D L 2

3068528 3068797 2832933 Wiring Harness Excavator Spare Parts For C9 330D 330D L 3

We could supply the following spare part

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
