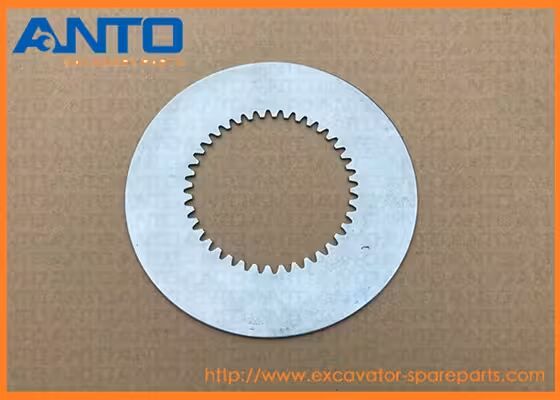

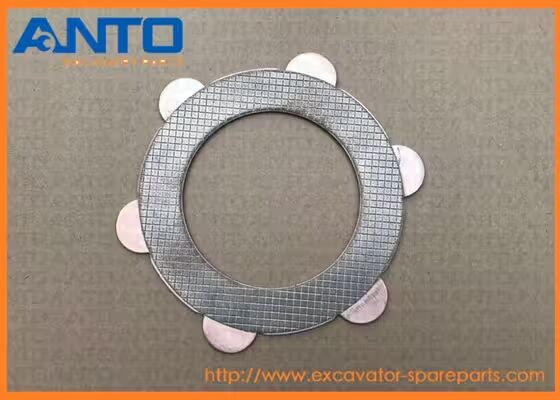

- ZTAJ-00074 ZTAJ-00073 Steel Ring Disc HYUNDAI Excavator Spare Parts Fit For R450LC-7 R480LC-9
| Name |
Sintered Disc |
| Parts No |
ZTAJ-00074 ZTAJ-00073 |
| Machine Model |
R450LC7 R480C9MH R500LC7 R500LC7A R520LC9 |
| Category |
Final drive / Travel reduction gearbox / Planetary gear assembly |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| Absorb and distribute axial thrust loads generated by the rotating planetary gears and sun gear. |
| Maintain proper gear alignment and backlash to prevent metal‑to‑metal contact and premature wear. |
| Act as shims to control gear endplay and ensure smooth, efficient power transmission from the hydraulic motor to the track drive. |
| Resist high pressure, shock loads, and abrasive wear in heavy‑duty operating conditions. |
7-SERIES CRAWLER EXCAVATOR R450LC7 R500LC7 R500LC7A
9-SERIES CRAWLER EXCAVATOR R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S Hyundai
- More other disc parts fit for HYUNDAI machine
| ZGAQ-02222 DISC-O/CLUTCH(2.0) |
| R170W7, R170W7A, R170W9S, R180W9S |
| |
| ZGAQ-02221 DISC-O/CLUTCH(2.5) |
| R170W7, R170W7A, R170W9S, R180W9S |
| |
| ZGAQ-02332 DISC-I/CLUTCH(3.0) |
| HW210, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| |
| ZGAR-00208 DISC-RETAINING |
| R55W7 |
| |
| ZTAM-00343 DISC-CLUTCH |
| R55W7 |
| |
| ZTAM-00746 DISC-INTERMEDIATE BRAKE |
| R55W-9, R55W-9S, R55W7, R55W7A |
| |
| ZTAM-00747 DISC-BRAKE |
| R55W-9, R55W-9S, R55W7, R55W7A |
| |
| ZTAM-00748 DISC |
| R55W-9, R55W-9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR ASSY |
SEE 4150 |
| *-2. |
34E7-02500 |
[1] |
TRAVEL REDUCTION GEAR |
|
| *-2. |
34E7-02501 |
[1] |
TRAVEL REDUCTION GEAR |
|
| 1 |
ZTAJ-00003 |
[16] |
SCREW |
|
| 6 |
ZTAJ-00117 |
[1] |
COVER ASSY |
|
| 2 |
ZTAJ-00075 |
[2] |
PLUG-OIL BREATHER |
|
| 2 |
ZTAJ-00123 |
[2] |
PLUG-OIL BREATHER |
|
| 3 |
ZTAJ-00001 |
[2] |
WASHER |
|
| 4 |
ZTAJ-00005 |
[1] |
O-RING |
|
| 5 |
ZTAJ-00101 |
[1] |
PAD |
|
| 7 |
ZTAJ-00077 |
[1] |
GEAR-SUN |
|
| 8 |
ZTAJ-00078 |
[1] |
GEAR ASSY-1ST |
|
| 9 |
ZTAJ-00079 |
[1] |
SUN GEAR |
|
| 10 |
ZTAJ-00080 |
[1] |
GEAR ASSY-2ND |
|
| 11 |
ZTAJ-00081 |
[1] |
SUN GEAR |
|
| 12 |
ZTAJ-00118 |
[4] |
SCREW |
|
| 13 |
ZTAJ-00119 |
[1] |
GEAR ASSY-3RD |
|
| 14 |
ZTAJ-00084 |
[4] |
BUSHING |
|
| 15 |
ZTAJ-00085 |
[1] |
HOUSING + BEARING |
|
| 15 |
ZTAJ-00124 |
[1] |
HOUSING + BEARING |
|
| 16 |
ZTAJ-00116 |
[1] |
SEAL-LIFETIME |
|
| 17 |
ZTAJ-00120 |
[1] |
RETAINER-DISCS |
|
| 17 |
ZTAJ-00065 |
[1] |
RETAINER-DISCS |
|
| 18 |
ZTAJ-00121 |
[1] |
HUB |
|
| 19 |
ZTAJ-00087 |
[1] |
SHAFT-BRAKE |
|
| 20 |
ZTAJ-00074 |
[7] |
DISC-SINTERED |
|
| 21 |
ZTAJ-00073 |
[6] |
RING-STEEL |
|
| 22 |
ZTAJ-00024 |
[1] |
RING-BACK UP |
|
| 23 |
ZTAJ-00025 |
[1] |
O-RING |
|
| 24 |
ZTAJ-00026 |
[1] |
O-RING |
|
| 25 |
ZTAJ-00027 |
[1] |
RING-SPIRAL |
|
| 26 |
ZTAJ-00088 |
[1] |
PISTON-BRAKE |
|
| 27 |
ZTAJ-00089 |
[21] |
SPRING |
|
| 28 |
ZTAJ-00090 |
[1] |
PLATE-SPRING RETAINER |
|
| 29 |
ZTAJ-00031 |
[1] |
CIRCLIP |
|
| 30 |
ZTAJ-00021 |
[1] |
O-RING |
|
| 31 |
ZTAJ-00091 |
[1] |
ADAPTOR-MOTOR |
|
| 32 |
ZTAJ-00036 |
[8] |
SCREW |
|
| 33 |
ZTAJ-00092 |
[1] |
O-RING |
|
| 34 |
ZTAJ-00034 |
[2] |
SCREW |
|
| 35 |
ZTAJ-00098 |
[1] |
O-RING |
|
| N36. |
ZTAJ-00122 |
[1] |
CIRCLIP |
|
| 37 |
ZTAJ-00093 |
[1] |
O-RING |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
