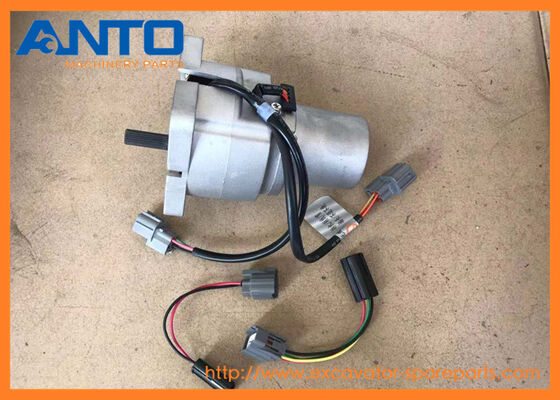

- YT20S00002F3 YT20S00002F1 YT20S00002F2 Throttle Motor Excavator Spare Parts For SK210-6 SK250-6
| Name |
Throttle Motor |
| Parts No |
YT20S00002F3 YT20S00002F1 YT20S00002F2 |
| Machine Model |
SK210-6 SK250-6 SK200-6 SK320-6 |
| Category |
Engine Control As |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| Item |
Details |
| Type |
Permanent magnet stepper motor (4-phase, high positioning accuracy) |
| Voltage |
Typically 24V DC (standard for heavy construction equipment) |
| Application |
Kobelco & New Holland excavators (see list below) |
| Weight |
Approx. 3.0 kg (gross) |
| Key Benefits |
High precision, fast response, durable for harsh construction environments, low maintenance |
| HEAVY EQUIPMENT 70SR 80MSR ED190LC SK115SRDZ SK135SRL SK135SRLC SK160LC SK200SR SK200SRLC SK200SRLC-1S SK210LC SK235SR SK235SRLC SK250LC SK290LC SK330LC SK80CS |
| LIGHT EQUIPMENT SK200SR SK200SR-1S SK200SRLC SK200SRLC-1S |
- More other governor parts fit for KOBELCO machine
| VAME755440 GOVERNOR ASSY, INJECTION PUMP,ALL,0001-1-,RSV |
| ED190LC, SK160LC |
| |
| VA0910100731 GOVERNOR COVER SUB ASSY (FOR M1,M2 ONLY) |
| 65R5P, 65R5C |
| |
| VA0910100900 GOVERNOR COVER SUB ASSY (FOR M0 ONLY) |
| 65R5P, 65R5C |
| |
| VA3176183300 GOVERNOR ASSY, FF: SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES, SEE FIG 07-003 (FOR M3ONLY) |
| 65R5P, 65R5C |
| |
| VA3176182700 GOVERNOR ASSY, FF: SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES, SEE FIG 07-003 (FOR M1,M2,M4 ONLY) |
| 65R5P, 65R5C |
| |
| VA3176183200 GOVERNOR ASSY, FF: SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES, SEE FIG 07-003 (FOR M0 ONLY) |
| 65R5P, 65R5C |
| |
| VI8943164080 GOVERNOR ASM ; MECHANICAL |
| SK120, SK120LC, MD140C |
| |
| VI8943164060 GOVERNOR ASM; FIG. 53B |
| SK120, SK120LC, MD140C |
| |
| 2450U4S1 GOVERNOR |
| K914, LK700 |
| |
| 2450U4F1 GOVERNOR |
| K914, LK700 |
| |
| 2450U212F1 GOVERNOR |
| K909LC, MD240BLC |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
YM11M01018P2 |
[1] |
Bracket |
|
| 2 |
YM11M01025P1 |
[1] |
LEVER |
KOB |
| 3 |
YN11M01091P1 |
[1] |
LEVER |
KOB |
| 4 |
YT20S00002F3 |
[1] |
GOVERNOR |
KOB Motor -- No Service Parts |
| 5 |
YN11M01006P1 |
[1] |
ROD |
KOB |
| 6 |
HR37C08000G1 |
[1] |
BALL JOINT |
KOB Replaces 2425R227D2, M08x1.25x45.5mm Long |
| 7 |
ZN18C08007 |
[3] |
NUT |
KOB M08x1.25mm |
| 8 |
ZM22C10030 |
[2] |
BOLT |
KOB M10x1.50x30mm (Incls. Washer & Lockwasher) |
| 9 |
ZW26X10000 |
[3] |
LOCK WASHER |
KOB ID 10 x OD 18 x Th 2.5mm |
| 10 |
YM11M01026P1 |
[1] |
Bracket |
|
| 11 |
2420R766D3 |
[1] |
GROMMET |
KOB |
| 12 |
ZS28C06025 |
[1] |
SCREW,Hex Socket Head, M6 x 25mm |
KOB M06x1.0x25mm |
| 13 |
ZW26X06000 |
[3] |
LOCK WASHER |
KOB ID 06 x OD 07 x Th 1.5mm |
| 14 |
ZS18C06060 |
[2] |
SCREW,Hex, M6 x 60mm |
KOB M06x1.0x60mm |
| 15 |
YN11M01013D1 |
[1] |
BALL JOINT |
KOB M08x1.25x36mm Long (Left hand thread) Superseded by part number: HR37D08000G1 |
| 16 |
2419R9D1 |
[2] |
COTTER PIN |
KOB OD 06mm x 21.2mm Long |
| 17 |
2420T7359 |
[1] |
NUT |
KOB M08x1.25mm -- Left Hand Threads |
| 18 |
YN11M01114P2 |
[2] |
PIN |
KOB Superseded by part number: ZP45X06018 |
| 19 |
ZS18C10030 |
[2] |
SCREW,Hex, M10 x 30mm |
KOB M10x1.50x30mm |
| 20 |
ZS18C10020 |
[3] |
SCREW,Hex, M10 x 20mm |
KOB M10x1.50x20mm |
| 21 |
YN11M01079P1 |
[2] |
BOSS |
KOB |
| 22 |
ZS28C10035 |
[3] |
SCREW,Hex Socket Head, M10 x 35mm |
KOB Screw -- M10x1.50x35mm |
| 23 |
YM11M01014P1 |
[1] |
CABLE |
KOB 4254mm Long (167-1/2 in) |
| 24 |
YM11M01017P1 |
[1] |
BRACKET |
KOB |
| 25 |
ZW16X10000 |
[2] |
WASHER |
KOB ID 10 x OD 21 x Th 2.0mm |
| 26 |
ZW26X08000 |
[4] |
LOCK WASHER |
KOB Lock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 27 |
ZS18C08020 |
[2] |
SCREW,Hex, M8 x 20mm |
KOB M08x1.25x20mm |
| 28 |
2420Z1320D1 |
[1] |
END |
KOB Rod -- Used from date 03/10/2000 - 03/30/2001 Superseded by part number: PM03M01715F1 |
| . . |
LC11M01034P1 |
[1] |
ROD |
KOB End -- Used after date 03/30/2001 - Up |
| 29 |
ZN18C06005 |
[1] |
NUT |
KOB M06x1.0mm |
| 30 |
2420Z1330 |
[1] |
GROMMET |
KOB |
| 31 |
2432T4615 |
[1] |
LABEL |
KOB Decal -- 45x45mm Red triangle |
| 32 |
LQ11M01055P1 |
[1] |
U-BRACKET |
KOB |
| 33 |
ZM61C06016 |
[2] |
BOLT |
KOB M06x1.0x16mm (Incls. Washer & Lockwasher) |
| 34 |
YM11M01016P1 |
[1] |
CABLE |
KOB 4226mm Long (166-3/8 in) -- Used from date 03/10/2000 - 04/21/2001 Superseded by part number: YM11M01016P2 |
| . . |
YM11M01016P2 |
[1] |
CABLE |
KOB 4180mm Long (164-1/2 in) -- Cable, Control -- Used after date 04/21/2001 - Up |
| 35 |
2420T4505 |
[2] |
WASHER,7mm ID x 16mm OD x 1mm Thk |
KOB ID 07 x OD 16 x Th 1.0mm |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
