| Category |
Air Conditioner Parts |
| Name |

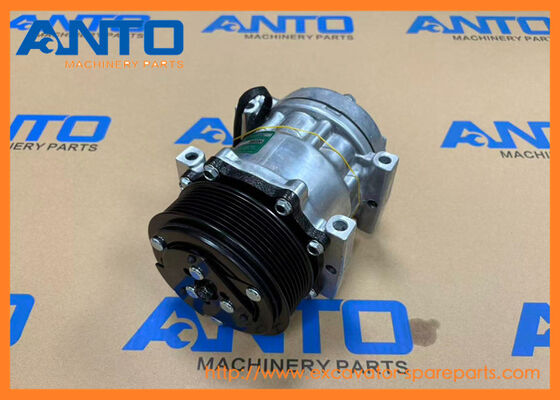

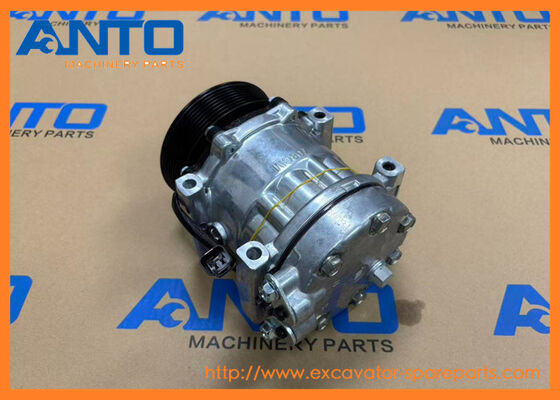

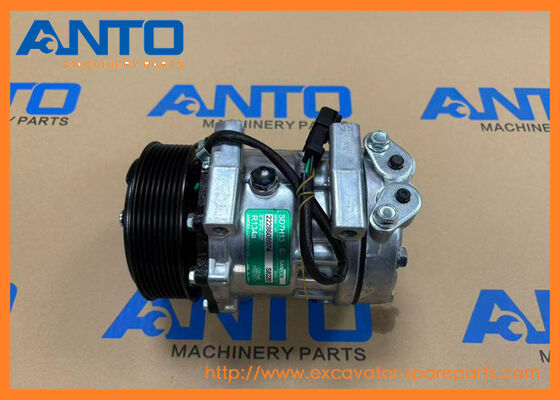

Compressor |
| Parts No |
569-07-88122 5690788122 |
| Machine Number |
WA500-7 WA500-8 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Core identification & basics
| Item |
Details |
| Part Number |
569-07-88122 (dash format);
5690788122 (solid format) |
| Part Name |
COMPRESSOR ASS’Y (FOR AIR CONDITIONER) |
| Voltage |
24V (standard for heavy-duty off-highway machinery) |
| Typical Type |
Scroll or swash - plate (common in Komatsu heavy equipment A/C systems) |
| Key Role |
1. Compresses low - pressure refrigerant vapor to high - pressure/high - temperature vapor, initiating the A/C cooling cycle
2. Driven by the engine via a belt/pulley system
|
ENGINES SAA6D170E
WHEEL LOADERS WA500 Komatsu
- More other compressor applied to KOMATSU heavey machine
| GJ1134889 COMPRESSOR |
| D37EX, D37PX, D39EX, D39PX, D61EX, D61EXI, D61PX, D61PXI, HM300, HM400, WA270, WA320, WA380, WA380Z, WA470, WA500 |
| |
| GJ1146520 COMPRESSOR |
| D37EX, D37PX, D39EX, D39PX, D61EX, D61EXI, D61PX, D61PXI, HM300, HM400, WA270, WA320, WA380, WA380Z, WA470, WA500 |
| |
| 569-07-88121 COMPRESSOR ASS'Y |
| SAA6D170E |
| |
| 203-978-5540 COMPRESSOR |
| PC100, PC100L, PC120, PC130, PC150, PC60, PC60L, PC70, PW100S |
| |
| SP315237 COMPRESSOR,COVER |
| SAA6D108E |
| |
| 2208-6013A COMPRESSOR 10PA 15C(4PK) |
| SOLAR |
| |
| 2208-6013B COMPRESSOR |
| DL200, DL250, DL300, DX140W, DX180, DX190W, DX210W, DX225, DX255, DX300, DX300LL, DX340, DX420, DX480, DX520, MEGA, SOLAR |
| |
| 565-95-21110 COMPRESSOR |
| HD200, WF22A, WF22T |
| |
| M720181300100 COMPRESSOR ASS'Y |
| EC105V, EC105VS |
| |
| M721156000010 COMPRESSOR ASS'Y |
| EC210Z |
| |
| M721095000010 COMPRESSOR ASS'Y |
| EC105Z, EC105ZS |
| |
| 103-Y79-5331 COMPRESSOR ASS'Y |
| D21A, D21P |
| |
| 56E-07-21120 COMPRESSOR ASS'Y |
| HD255, HM250, HM300 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
6262-81-6810 |
[1] |
Bracket Komatsu China |
|
| |
|
|
["SN: 730016-UP"] |
|
| 2 |
01010-81030 |
[4] |
Bolt Komatsu OEM |
0.03 kg. |
| |
|
|
["SN: 730016-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] |
|
| 3 |
01643-31032 |
[4] |
Washer Komatsu |
0.054 kg. |
| |
|
|
["SN: 730016-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] |
|
| 4 |
569-07-88122 |
[1] |
Compressor Assembly Komatsu |
7.6 kg. |
| |
|
|
["SN: 730016-UP"] |
|
| 5 |
01010-80895 |
[4] |
Bolt Komatsu |
0.042 kg. |
| |
|
|
["SN: 730016-UP"] |
|
| 6 |
01643-30823 |
[4] |
Washer Komatsu |
0.004 kg. |
| |
|
|
["SN: 730016-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] |
|
| 7 |
6262-61-4910 |
[1] |
Bolt Komatsu China |
|
| |
|
|
["SN: 730016-UP"] |
|
| 8 |
01580-11210 |
[1] |
Nut Komatsu |
0.03 kg. |
| |
|
|
["SN: 730016-UP"] analogs:["801703210", "801920106"] |
|
| 9 |
6215-71-6180 |
[1] |
Spacer Komatsu China |
|
| |
|
|
["SN: 730016-UP"] |
|
| 10 |
6262-81-6250 |
[1] |
Bracket Komatsu China |
|
| |
|
|
["SN: 730016-UP"] |
|
| 11 |
01010-81020 |
[1] |
Bolt Komatsu |
0.161 kg. |
| |
|
|
["SN: 730016-UP"] analogs:["801014093", "0101051020", "801015108"] |
|
| 13 |
6218-81-8480 |
[2] |
Band Komatsu |
0.01 kg. |
| |
|
|
["SN: 730016-UP"] |
|
| 14 |
6262-81-6850 |
[1] |
Bracket Komatsu China |
|
| |
|
|
["SN: 730016-UP"] |
|
| 17 |
6262-81-6890 |
[1] |
Bracket Komatsu China |
|
| |
|
|
["SN: 730016-UP"] |
|
| 18 |
01010-81225 |
[2] |
Bolt Komatsu |
0.074 kg. |
| |
|
|
["SN: 730016-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] |
|
| 19 |
01643-31232 |
[2] |
Washer Komatsu |
0.027 kg. |
| |
|
|
["SN: 730016-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
