| Category |
Air Conditioner(Compressor) Parts |
| Name |

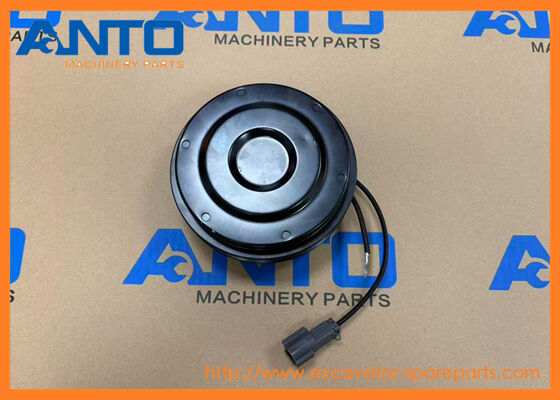

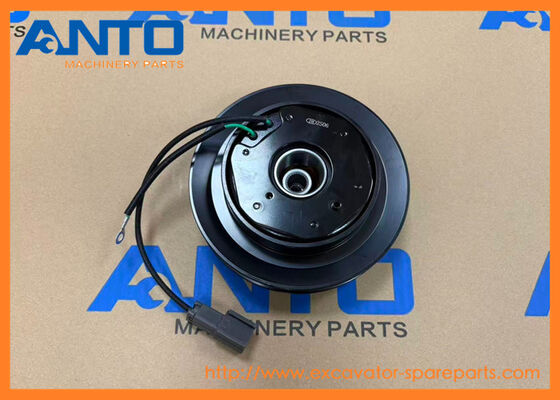

Clutch Assy |
| Parts No |
ND447300-7300 ND4473007300 |
| Machine Number |
WA100 WA120 WA150 WA180 WA200 WA250 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Engaged State: Pressure springs force the pressure plate against the clutch disc, clamping it between the pressure plate and engine flywheel. Torque is transmitted from the flywheel → clutch disc → transmission input shaft. |
| 2. Disengaged State: When the clutch pedal is pressed, the release bearing pushes the pressure plate (push-type) or pulls the diaphragm spring (pull-type), releasing pressure on the clutch disc. The disc rotates freely, disconnecting engine power from the transmission (enabling gear shifts). |
| 3. Re-engagement: Releasing the pedal allows the pressure spring to re-clamp the disc, resuming torque transfer with smooth power delivery. |
| Core Functions |
1. Power Transmission: Transfers engine torque to the transmission, enabling equipment movement and operation |
| 2. Gear Shift Facilitation: Disconnects power during gear changes to prevent transmission damage and ensure smooth shifting |
| 3. Load Control: Allows the operator to modulate power delivery (e.g., gradual engagement for digging/lifting) to avoid equipment jerking |
| 4. Torque Limitation: Friction facings slip temporarily under overload (e.g., sudden impact loads) to protect the engine and transmission from damage |
COMPACTORS WF450 WF450T WF550 WF550T
CRAWLER STABILIZERS CS360 CS360SD
DUMP TRUCKS HD255 HD325 HD405 HD465 HD605
WHEEL DOZERS WD500 WD600
WHEEL LOADERS WA100 WA120 WA120L WA150 WA180 WA180L WA180PT WA200 WA250 WA250L WA250PT WA300 WA300L WA320 WA350 WA380 WA400 WA420 WA450 WA450L WA470 WA500 WA600 WA700 WA800 WA800L WA900 WA900L WR11 Komatsu
- More other clutch applied to KOMATSU heavey machine
| 150-19-05022 CLUTCH PIPING KIT,MAIN CLUTCH |
| D80A, D85A |
| |
| KD1-23500-0170 CLUTCH ASS'Y,OVER RUNNING |
| 6D125, SAA6D125E |
| |
| 14X-22-00010 CLUTCH ASS'Y |
| D60P, D65E, D65P, D70LE, D85E, D85ESS |
| |
| ND147300-0810 CLUTCH ASS'Y |
| D60P, D65E, D65EX, D65P, D65PX |
| |
| 141-21-00523 CLUTCH ASS'Y |
| D60A, D60E, D60F, D60P, D60PL, D65A, D65E, D65P, D70, D70LE |
| |
| 144-10-00013 CLUTCH ASS'Y |
| D60A, D60P, D60PL |
| |
| KD0-23500-0281 CLUTCH ASS'Y,OVER RUNNING |
| EGS240, EGS300, SA6D108 |
| |
| KD1-23500-0160 CLUTCH ASS'Y,OVER RUNNING |
| 6D125E, DCA, EGS1000, EGS1050, EGS1200, NTO, S6D125, S6D125E, S6D170, S6D170E, SA12V140, SAA12V140E |
| |
| 141-10-00513 CLUTCH ASS'Y |
| D60S |
| |
| 141-10-00517 CLUTCH ASS'Y |
| D60S |
| |
| 135-22-00011 CLUTCH ASS'Y |
| D57S |
| |
| 13S-43-15380 CLUTCH |
| CD60R |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
418-07-21102 |
[1] |
..AIR CONDITIONER KIT Komatsu China |
|
| |
|
|
["SN: 63243-UP"] analogs:["4180721101"] |1. |
|
| |
425-07-21180 |
[1] |
..AIR COMPRESSOR A. Komatsu |
8.502 kg. |
| |
|
|
["SN: 63243-UP"] |1. |
|
| 1 |
ND447200-1741 |
[1] |
..COMPRESSOR ASS'Y Komatsu |
4.92 kg. |
| |
|
|
["SN: 63243-UP"] |
|
| 2 |
ND447300-7300 |
[1] |
..CLUTCH ASS'Y Komatsu |
3.341 kg. |
| |
|
|
["SN: 63243-UP"] |
|
| 3 |
ND949070-1360 |
[1] |
..RING¤ SNAP Komatsu |
0.005 kg. |
| |
|
|
["SN: 63243-UP"] |
|
| 4 |
ND949070-0640 |
[1] |
..RING¤ SNAP Komatsu |
0.006 kg. |
| |
|
|
["SN: 63001-UP"] |
|
| 5 |
ND949013-7480 |
[1] |
..WASHER¤ 0.1MM Komatsu |
0.001 kg. |
| |
|
|
["SN: 63001-UP"] |
|
| 6 |
ND949013-7500 |
[1] |
..WASHER¤ 0.3MM Komatsu |
0.001 kg. |
| |
|
|
["SN: 63001-UP"] |
|
| 7 |
ND949013-7510 |
[1] |
..WASHER¤ 0.5MM Komatsu |
0.01 kg. |
| |
|
|
["SN: 63001-UP"] |
|
| 8 |
ND949048-0430 |
[1] |
..BOLT Komatsu |
0.001 kg. |
| |
|
|
["SN: 63001-UP"] |
|
| 9 |
ND91310-05081 |
[1] |
..SCREW Komatsu |
0.007 kg. |
| |
|
|
["SN: 63001-UP"] |
|
| 10 |
ND146691-4470 |
[1] |
..CLAMP Komatsu |
0.002 kg. |
| |
|
|
["SN: 63001-UP"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
