| Category |
Radiator Parts |
| Name |

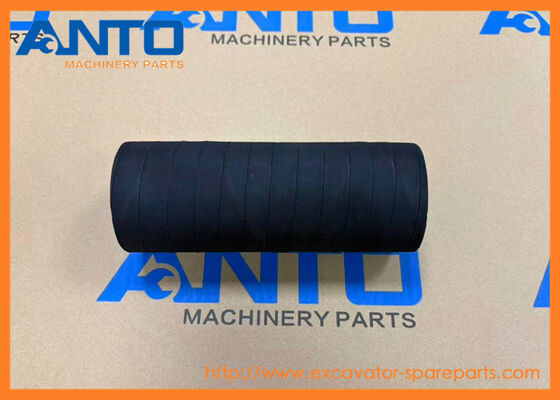

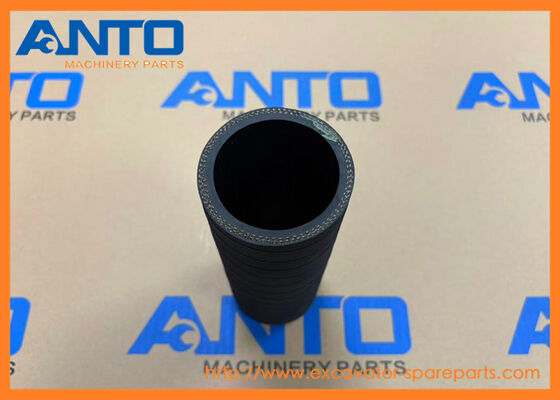

Hose |
| Parts No |
421-03-32121 4210332121 |
| Machine Number |
WA430 WA450 WA470 WA480 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. When the hydraulic pump is activated, it pressurizes hydraulic oil and pushes it into the 421-03-32121 hose through the inlet fitting |
| 2. The steel wire braid reinforcement counteracts the internal pressure, keeping the hose’s inner tube from expanding or failing |
| 3. The flexible hose routes pressurized oil to actuators (cylinders/motors), accommodating movement of lift arms/swing mechanisms without restricting flow |
| 4. The outer cover shields the inner layers from external damage, while the NBR inner tube prevents oil contamination and leakage |
| 5. Pressurized oil exits through the outlet fitting to power equipment functions (e.g., lifting the loader bucket) |
| Core Functions |
1. High-Pressure Oil Conduction: Transmits pressurized hydraulic oil to power critical equipment movements (lift, tilt, swing) – ensures responsive operation under heavy loads |
| 2. Leak Prevention: Factory-crimped fittings and durable inner tube eliminate oil leaks, avoiding pressure loss and safety hazards (slippery job site surfaces) |
| 3. Abrasion Protection: Outer cover resists physical damage, extending hose service life in debris-prone environments |
| 4. Vibration Absorption: Flexible design absorbs engine/equipment vibration, reducing stress on fittings and mating components |
WHEEL LOADERS WA430 WA450 WA470 WA480 Komatsu
- More other hose applied to KOMATSU heavey machine
| 230-09-23355 HOSE |
| GS360 |
| |
| 417-62-13742 HOSE |
| 512, WA120, WA150 |
| |
| 09483-00419 HOSE |
| D60A, D60P, D60PL, D65A, D65E, PC10, PC100, PC100L, PC10N, PC120, PC130, PC200, PC20R, PC25R, PC27R, PC50UD, PC50UG, PC50UU, PC50UUM, PC58SF, PC60, PW170ES |
| |
| 07260-20955 HOSE |
| GD555, GD655 |
| |
| 209-68-11242 HOSE |
| PC1000, PC1000SE, PC1000SP, PC1600, PC1600SP, PC650, PC650SE, PC710, PC710SE |
| |
| 21T-68-72240 HOSE |
| PC1600, PC1600SP |
| |
| 22U-01-11112 HOSE |
| PC228, PC228US, PC228UU |
| |
| 21T-72-19350 HOSE |
| PC1600, PC1600SP, PC1800, PC650, PC650SE |
| |
| 20Y-62-42540 HOSE 1050MM |
| BP500, D475A, D475ASD, PC200, PC2000, PC200LL, PC200SC, PC210, PC220, PC230, PC230NHD, PC240, PC270, PC270LL, PC290, TRAVEL |
| |
| 23S-62-12190 HOSE |
| LW250L |
| |
| 20Y-62-42140 HOSE 750MM,750MM |
| BP500, PC128US, PC138, PC138US, PC200, PC200LL, PC200SC, PC210, PC220, PC230, PC230NHD, PC240, PC270, PC270LL, PC290 |
| |
| 20Y-62-42150 HOSE 800MM,800MM |
| BP500, PC200, PC200LL, PC200SC, PC210, PC220, PC220LL, PC230, PC230NHD, PC240, PC270, PC270LL, PC290, PC300LL, PC350LL |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
421-03-32110 |
[1] |
HOSE Komatsu |
1.47 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 2 |
07289-00070 |
[8] |
CLAMP Komatsu |
0.061 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["802660014", "2080911120"] |
|
| 3 |
421-03-32132 |
[1] |
HOSE Komatsu |
1.02 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 4 |
07289-00080 |
[2] |
CLAMP Komatsu |
0.064 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["2050961120", "690106C1"] |
|
| 5 |
07261-20914 |
[1] |
HOSE Komatsu |
0.42 kg. |
| |
|
|
["SN: 60038-UP"] |
|
| |
07270-41014 |
[1] |
TUBE Komatsu |
0.039 kg. |
| |
|
|
["SN: 60001-60037"] analogs:["0727041015", "0727041011"] |5. |
|
| 6 |
11Y-09-11140 |
[1] |
CLIP Komatsu |
0.01 kg. |
| |
|
|
["SN: 60038-UP"] |
|
| |
11Y-09-11170 |
[1] |
CLIP Komatsu |
0.03 kg. |
| |
|
|
["SN: 60001-60037"] |6. |
|
| 7 |
134-03-61410 |
[4] |
BAND Komatsu |
0.03 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 8 |
423-03-11531 |
[1] |
PIPE Komatsu |
0.01 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 9 |
421-03-32121 |
[1] |
HOSE Komatsu |
0.36 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 10 |
07285-00115 |
[1] |
CLIP Komatsu |
1.9 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 13 |
02782-10522 |
[1] |
ELBOW Komatsu |
0.4 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 14 |
07002-12434 |
[1] |
O-RING Komatsu China |
0.01 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["0700202434", "0700213434"] |
|
| 17 |
02896-11015 |
[2] |
O-RING Komatsu |
0.21 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["21D0969770", "855051016"] |
|
| 18 |
21W-62-42640 |
[1] |
ELBOW Komatsu |
1.25 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 19 |
07002-23334 |
[1] |
O-RING Komatsu |
1.46 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["0700233334"] |
|
| 21 |
421-09-31210 |
[1] |
ELBOW Komatsu China |
|
| |
|
|
["SN: 60001-UP"] |
|
| 22 |
421-09-31140 |
[2] |
O-RING Komatsu China |
|
| |
|
|
["SN: 60001-UP"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
