199-1153 1991153 Solenoid Valve Excavator Spare Parts For C4.4 C7.1 M315F M317F M318F

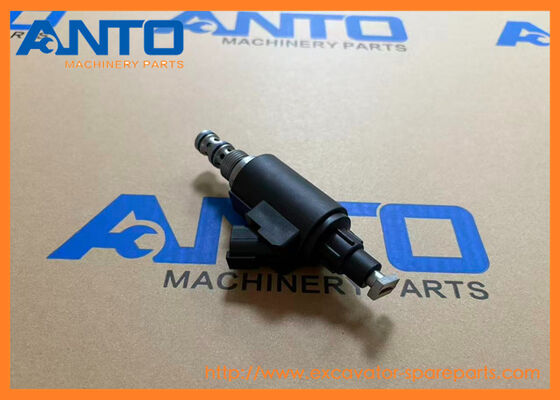

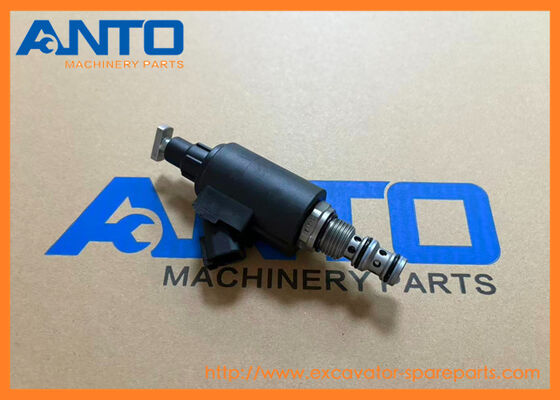

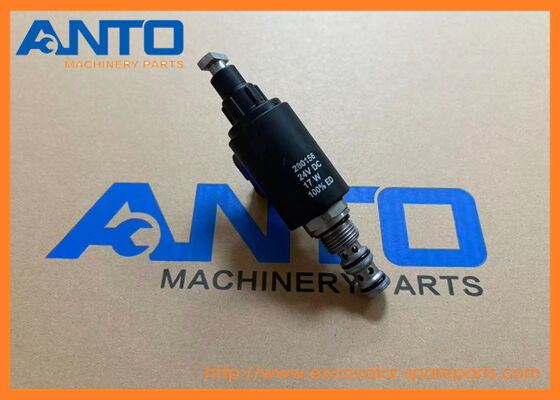

Large Image : 199-1153 1991153 Solenoid Valve Excavator Spare Parts For C4.4 C7.1 M315F M317F M318F

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	199-1153 1991153

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	279 USD / pcs
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Electric Parts	Part Number:	199-1153 1991153
Product Name:	Solenoid Valve	Machine Number:	M313D M315C M316C M317D2 M318C
Application:	Excavator	Lead Time:	1-3 Days For Delivery
Packing:	Standard Export Carton
Highlight:	C4.4 excavator solenoid valve , M317F excavator spare parts , C7.1 compatible solenoid valve

199-1153 1991153 Solenoid Valve Excavator Spare Parts For C4.4 C7.1 M315F M317F M318F

Specifiion

Category	Electric Parts
Name	Solenoid Valve
Parts No	199-1153 1991153
Machine Number	M313D M315C M316C M317D2 M318C
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT
Packing	As request or standard packing

Key functions & working principle

Working Principle	1. The machine’s ECU sends an electrical signal (24V DC) to the solenoid coil, creating a magnetic field
	2. The magnetic field pulls the plunger (connected to the spool) against a return spring, moving the spool from its resting position
	3. Spool movement opens/closes fluid passages (hydraulic oil/fuel), regulating flow direction/pressure to the target component (e.g., hydraulic cylinder, fuel injector)
	4. When the electrical signal stops, the return spring pushes the spool back to its original position, closing the fluid passage (NC design) or opening it (NO design)
	5. Pressure feedback ports (where fitted) monitor system pressure, enabling the ECU to adjust the solenoid signal for precise control
Core Functions	1. Hydraulic Control: Regulates flow/pressure of hydraulic oil to cylinders, pumps, and valves – enables smooth, precise operation of excavator booms/buckets or loader lift arms
	2. Fuel Injection Control: Modulates fuel flow to engine injectors (C7/C9 engines) – optimizes combustion efficiency and reduces emissions
	3. Transmission Control: Triggers gear shifts in wheel loader transmissions – ensures smooth power delivery and fuel efficiency
	4. Safety Interlock: In NC design, shuts off fluid flow if electrical power fails (prevents unintended movement of equipment)

Compatible models

EXCAVATOR M325D L MH M325D MH
WHEELED EXCAVATOR M313C M313D M315C M315D M315D2 M316C M316D M317D2 M318C M318C MH M318D M318D MH M322C M322D M322D MH M325C MH M330D C.aterpillar.

More other valve applied to C A T heavey machine

1549023 VALVE-SAMPLING

1090, 1190, 1190T, 120H, 120K, 120K 2, 1290T, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 1390, 140G, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M 2, 160M 3, 160M 3 AWD, 16M, 236D, 242...

7X3387 VALVE AS-FLUID SAMPLING

3126E, 3208, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, 5130, 5130B, 5230, 5230B, 613C, 933, 933C, 938G, 939, 939C, 950F, 950F II, 950G, 953C, 960F, 962G, AP-200B, AP-800C, AP-800D, B...

8C3345 VALVE AS-FLUID SAMPLING

311F LRR, 793F, 793F AC, 793F CMD, 793F OEM, 793F-XQ, 795F AC, 795F XQ, 797, 797B, 797F, C175-16, C175-20, C7.1, CG137-12, CW-14, M313D, M315D

1549025 VALVE-FLUID SAMPLING

120K, 120K 2, 120M, 120M 2, 12H, 12K, 12M, 140H, 140K, 140K 2, 140M, 143H, 14H, 14M, 160H, 160K, 160M, 163H, 16H, 16M, 2290, 2390, 2391, 2491, 24M, 2590, 305.5, 306, 307C, 307D, 308C, 308D, 330C, 330C...

1457390 VALVE-INLET

120H, 120K, 12K, 12M, 135H, 140K, 140M, 160K, 3126, 3126B, 3126E, 322C, 322C FM, 324D, 324D L, 324D LN, 325C, 325C FM, 325D, 325D L, 328D LCR, 561N, 570B, 580B, 938G II, 950G II, 950H, 953C, 962G II, ...

1478211 VALVE-EXHAUST

120H, 120K, 120K 2, 12K, 12M, 135H, 140G, 140K, 140K 2, 140M, 160K, 3126, 3126B, 3126E, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325C, 325C FM, 325D, 325D FM, 325D FM LL, 325D L, 325...

2527801 VALVE-INLET

120H, 120K, 120K 2, 12K, 135H, 140G, 140K, 140K 2, 140M, 160K, 3126, 3126B, 3126E, 322C, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325C, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR,...

2418382 VALVE-INLET

140M, 160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 511, 521, 522, 532, 541, 551, 552, 627G, 637D, 637E, 637G, 814F II, 815F II, 816F II, 973C, 97...

2418383 VALVE-EXHAUST

140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2

Directory listing

Pos.	Part No	Qty	Parts name	Comments
1	446-1074	[1]	BODY-VALVE
2	199-1153 Y	[1]	VALVE GP-SOLENOID (OSCILLATING AXLE)
2A.	199-1153 Y	[1]	VALVE GP-SOLENOID (SWING BRAKE)
2B.	199-1153 Y	[1]	VALVE GP-SOLENOID (IMPLEMENT LOCKOUT)
3	251-5594 Y	[1]	VALVE GP-SOLENOID (TRANSMISSION GEAR)
4	446-7142 Y	[1]	VALVE GP-SOLENOID (SWING PUMP)
4A.	446-7142 Y	[1]	VALVE GP-SOLENOID (MAIN PUMP)
4B.	446-7142 Y	[1]	VALVE GP-SOLENOID (PILOT, TRAVEL)
5	446-7144 Y	[1]	VALVE GP-SOLENOID (TRAVEL MOTOR)
6	368-6792	[4]	FLANGE
7	8T-3998 M	[8]	BOLT (M4X0.7X12-MM)
8	446-7146	[1]	VALVE GP-SOLENOID (TRANSMISSION GEAR)
	195-7747	[2]	SOLENOID
	204-5099	[2]	ACTUATOR AS
			(EACH INCLUDES)
	177-6970	[1]	SEAL-O-RING
9	224-2983 Y	[1]	VALVE GP-PRESSURE REDUCING (MEDIUM PRESSURE)
10	148-7291 Y	[1]	VALVE GP-PILOT RELIEF
11	196-7486 Y	[1]	VALVE GP-SOLENOID (HEAVY LIFT)
11A.	196-7486 Y	[1]	VALVE GP-SOLENOID (MEDIUM PRESSURE)
12	123-0175	[1]	BODY
13	6V-8397	[2]	SEAL-O-RING
14	451-2402	[1]	VALVE AS-CHECK
15	123-0179	[1]	VALVE GP-CHECK (IMPLEMENT LOWERING)
	121-8112	[1]	SEAL-O-RING
16	242-4313	[1]	SEAL-O-RING
17	284-8115	[1]	VALVE AS-CHECK (PILOT RELIEF)
	203-0213	[1]	SEAL-O-RING
18	7J-9108	[1]	SEAL-O-RING
19	123-0173	[1]	PLUG
20	6V-5196 M	[2]	BOLT-SOCKET HEAD (M8X1.25X80-MM)
21	8T-0269 M	[2]	BOLT-SOCKET HEAD (M6X1X20-MM)
22	360-3679	[1]	PLUG-CONNECTOR (9/16-18-THD)
23	9S-8006	[1]	PLUG (7/8-14-THD)
24	6V-3922	[1]	SEAL-O-RING
25	161-6154	[2]	SEAL-O-RING
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

199-1153 1991153 Solenoid Valve Excavator Spare Parts For C4.4 C7.1 M315F M317F M318F 0

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
