| Category |
Hood, Door And Gas Spring |
| Name |

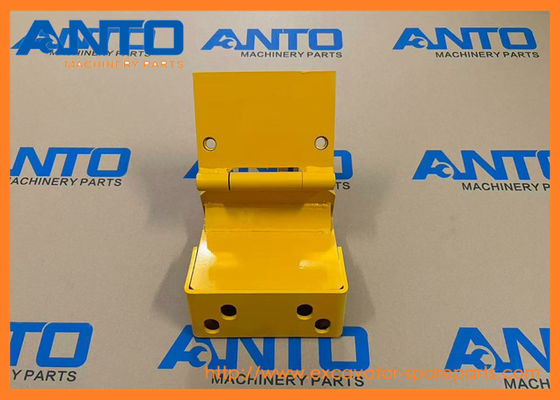

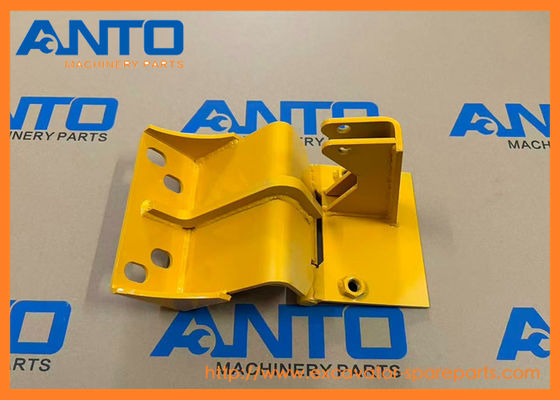

Hinge |
| Parts No |
421-54-43540 4215443540 |
| Machine Number |
WA450 WA470 WA480 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Fixed leaf is bolted to the equipment’s stationary structure (e.g., cab frame, engine compartment); rotating leaf is fastened to the movable component (e.g., door, hood) |
| 2. The pin inserts through aligned holes in both leaves, enabling the movable component to rotate open/closed |
| 3. Bushings (if equipped) reduce friction between the pin and leaves, ensuring smooth, quiet movement |
| 4. Heat-treated materials and corrosion-resistant coating maintain structural integrity under vibration and environmental stress |
| Core Functions |
1. Enable smooth, controlled rotation of movable components (cab doors, hoods, access panels) for operator entry and maintenance |
| 2. Securely fasten two components while accommodating rotational movement |
| 3. Withstand vibration and minor impacts to prevent component damage or misalignment |
| 4. Resist corrosion and wear to ensure long-term reliability in construction environments |
WHEEL LOADERS WA450 WA470 WA480 Komatsu
- More other hinge applied to KOMATSU heavey machine
| 421-04-31280 HINGE |
| AIR, WA380, WA430, WA450, WA470, WA480, WA500, WA600, WD600 |
| |
| 416-09-12220 HINGE |
| GD555, GD655, GD755, HM250, HM400, HYDRAULIC, WA1200, WA150, WA150PZ, WA200, WA380, WA380Z, WA420, WA430, WA470, WA480, WA500, WD600 |
| |
| 421-09-21360 HINGE (WELDED) |
| BATTERY, FRONT, HYDRAULIC, JV100WA, JV100WP, JV130WH, WA100, WA100M, WA120, WA1200, WA150, WA150PZ, WA180, WA180L, WA180PT, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380, WA430, WA470, WA480, ... |
| |
| 425-07-31340 HINGE (WELDED) |
| AIR, FRONT, HYDRAULIC, WA380, WA380Z, WA430, WA470, WA480, WA500 |
| |
| 421-06-24180 HINGE |
| AIR, FRONT, HYDRAULIC, WA380, WA430, WA470, WA500 |
| |
| 423-54-44390 HINGE, WELDED |
| AIR, FRONT, WA250, WA320, WA380, WA380Z, WA430, WA470, WA480, WA500 |
| |
| 416-09-12230 HINGE |
| AIR, BATTERY, FRONT, HYDRAULIC, WA150, WA150PZ, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380, WA430, WA470, WA500, WA600 |
| |
| 424-54-14120 HINGE |
| AIR, FRONT, WA1200, WA300, WA320, WA350, WA430, WA470, WA480, WA600, WD600 |
| |
| 423-54-41340 HINGE (WELDED) |
| FRONT, WA150, WA380, WA430, WA470, WA480 |
| |
| 421-54-43530 HINGE,L.H. |
| WA450, WA470, WA480 |
| |
| LUB. POINT 17 HINGE PIN BOTTOM |
| KOMATSU |
| |
| LUB. POINT 18 HINGE PIN TOP |
| KOMATSU |
| |
| FF7819-83220 HINGE (WELDED) |
| SK07 |
| |
| FF7819-83210 HINGE (WELDED) |
| SK07 |
| |
| 385-10216291 HINGE,R.H. |
| 530, 530B, 540, 540B |
| |
| 20Y-54-51330 HINGE |
| BP500, PC130, PC160, PC180, PC200, PC200LL, PC200SC, PC210, PC220, PC230, PC230NHD |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
421-54-43231 |
[1] |
Door,L.H. Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 2. |
421-54-31740 |
[1] |
Lock Assembly Komatsu |
0.76 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 3 |
417-54-21650 |
[1] |
Striker Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 4 |
417-54-21610 |
[1] |
Spring,L.H. Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 5 |
01641-21016 |
[1] |
Washer Komatsu |
0.002 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 6 |
421-54-41140 |
[1] |
Rod Komatsu |
0.21 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 7 |
04050-13020 |
[1] |
Pin, Cotter Komatsu |
0.002 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 8 |
01641-20608 |
[4] |
Washer Komatsu |
0.001 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["0164220608", "0164100608", "0164240608", "6110733520"] |
|
| 9 |
04050-11612 |
[4] |
Pin, Cotter Komatsu |
0.001 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["0405001612", "2344318710"] |
|
| 10 |
423-54-37680 |
[1] |
Holder Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 11 |
421-54-43241 |
[1] |
Door,R.H. Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 14 |
417-54-21660 |
[1] |
Spring,R.H. Komatsu |
0.001 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 21 |
421-54-43530 |
[1] |
Hinge,L.H. Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 22 |
421-54-43540 |
[1] |
Hinge,R.H. Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 23 |
01010-81225 |
[8] |
Bolt Komatsu |
0.074 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] |
|
| 24 |
01643-31232 |
[8] |
Washer Komatsu |
0.027 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] |
|
| 25 |
421-54-42391 |
[2] |
Hinge Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 28 |
423-54-37580 |
[4] |
Cylinder, Gas, Gas Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 29 |
04205-10832 |
[2] |
Pin Komatsu China |
|
| |
|
|
["SN: 90216-UP"] analogs:["500327173", "PZF500327173", "0420520832"] |
|
| 30 |
01640-20816 |
[8] |
Washer Komatsu |
0.002 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 31 |
04050-12015 |
[8] |
Pin, Cotter Komatsu |
0.001 kg. |
| |
|
|
["SN: 90216-UP"] analogs:["0405002015"] |
|
| 32 |
421-54-41470 |
[2] |
Rod Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
| 33 |
04050-13022 |
[4] |
Pin, Cotter Komatsu |
0.002 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 34 |
01640-21323 |
[2] |
Washer Komatsu |
0.008 kg. |
| |
|
|
["SN: 90216-UP"] |
|
| 35 |
423-54-48490 |
[2] |
Washer Komatsu China |
|
| |
|
|
["SN: 90216-UP"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
