| Category |
Hydraulic Pump |
| Name |

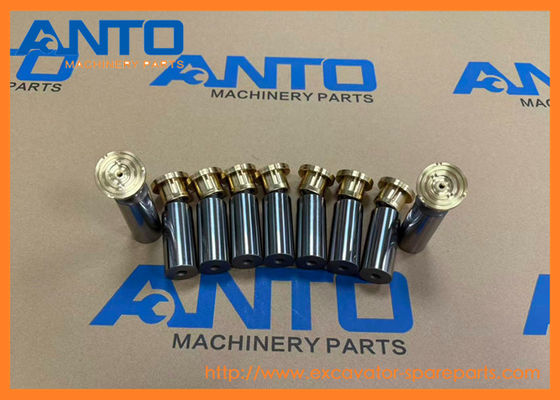

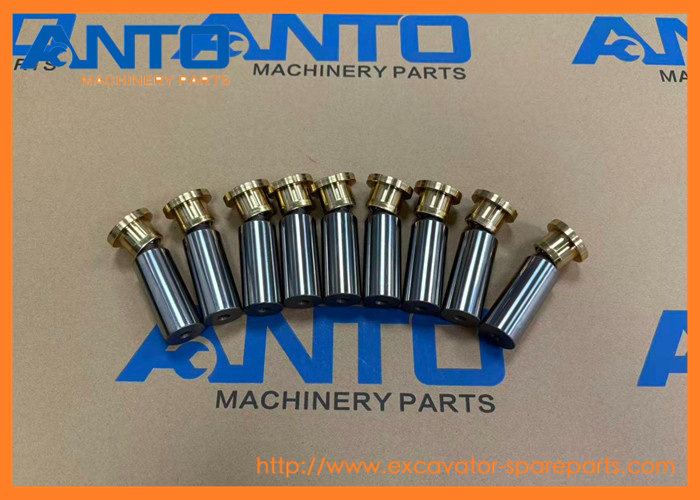

Piston |
| Parts No |
VOE14600771 14600771 |
| Machine Number |
EC200B EC210B EC240B |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1.Combustion Chamber Sealing: Works with piston rings to seal the cylinder bore, preventing high-pressure combustion gases from leaking into the crankcase (which would reduce engine power and increase oil contamination).
2.Power Transfer: Converts the linear force of combustion into rotational motion for the crankshaft—this motion drives the machine’s hydraulic pumps (for excavator/loader functions) and drive train (for movement).
3.Heat Management: The hypereutectic alloy and internal cooling gallery dissipate combustion heat, protecting the piston and cylinder bore from overheating and premature wear.
EC200B EC210B EC240B Vo.lvo.
- More other piston applied to V O L V O heavey machine
| VOE14512869 Piston |
| EC210B |
| |
| VOE20799647 Piston Bearing |
| DD110B, DD120B, DD120C, DD140B, DD140C, EC140C, EC140D, EC140E, EC160C, EC160D, EC160E, EC170D, EC180C, EC180D, EC180E, EC200B, EC210B, EC210C, EC220D, EC220E, EC235C, EC235D, ECR145C, ECR145D, ECR145... |
| |
| VOE14532283 Piston |
| EC180B, EC210B, EC240B |
| |
| VOE21299547 Piston ring kit |
| ABG7820/ABG7820B, ABG8820/ABG8820B, BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, EC200D, EC210D, EC240B, EC240C, EC250D, EC290B, EC290C, EC300D, ECR305C, EW140B, EW140C, FC2... |
| |
| VOE14500075 Piston |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC180B, EC180C, EC180D, EC200B, EC210B, EC210C, EC240B, ECR235C, FC2121C |
| |
| VOE14500079 Piston |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC180B, EC180C, EC180D, EC200B, EC210B, EC210C, EC240B, ECR235C, FC2121C |
| |
| VOE14540778 Piston |
| EC200B, EC210B, EC240B, EC240C, EC250D, FC2924C |
| |
| VOE14632842 Piston |
| EC210B, EC210C |
| |
| VOE14535476 Piston |
| EC140B, EC140C, EC160B, EC180B, EC210B, EC210C, EC240B, ECR235C, FC2121C |
| |
| VOE14514674 Piston |
| EC240B, EC240C, FC2924C |
| |
| VOE14600768 Piston |
| EC210B |
| |
| VOE14535043 Piston |
| EC210B, ECR235E, EW230C |
| |
| 8230-09480 Piston |
| Volvo.Heavy |
| |
| SA8230-09480 Piston |
| Volvo.Heavy |
| |
| VOE14567022 Piston |
| EC135B, EC140B, EC160B, EC180B, EW145B |
| |
| VOE6211789 Piston |
| 4600 |
| |
| VOE14500061 Piston |
| EC160B, EC180B, EC240B, EC330B, EC360B, EC460B, EC460C, PL4608, PL4611 |
| |
| VOE21714031 Piston |
| Volvo.Heavy |
| |
| VOE14508515 Piston |
| EC135B, EC160B, EC180B, EW145B |
| |
| VOE14512923 Piston |
| EC330B, EC360B, EC460B |
| |
| RM43909563 Piston pump |
| PF6110, PF6160/PF6170 |
| |
| SA8230-28660 Piston |
| Volvo.Heavy |
| |
| VOE14594327 Piston |
| EC460B, EC460C, EC460CHR, EC480D, EC480DHR, PL4608, PL4611, PL4809D |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14531856 |
[1] |
Pump |
|
| 1 |
VOE14600771 |
[2] |
Piston |
|
| 2 |
VOE14500003 |
[9] |
Piston |
|
| 3 |
VOE14500002 |
[9] |
Seat |
|
| 4 |
VOE14550188 |
[1] |
Cylinder |
|
| 5 |
|
[1] |
Block |
|
| 6 |
VOE14500001 |
[1] |
Plate |
|
| 7 |
VOE14550189 |
[1] |
Cylinder |
|
| 8 |
|
[1] |
Block |
|
| 9 |
VOE14500000 |
[1] |
Plate |
|
| 10 |
SA8230-09800 |
[2] |
Plate |
|
| 11 |
SA8230-09800 |
[1] |
Plate |
|
| 12 |
VOE14500012 |
[1] |
Bushing |
|
| 13 |
SA7223-00450 |
[2] |
Non-return valve |
|
| 14 |
|
[1] |
Seat |
|
| 15 |
|
[1] |
Guard |
|
| 16 |
|
[1] |
Ball |
|
| 17 |
SA7223-00460 |
[2] |
Non-return valve |
|
| 18 |
|
[1] |
Seat |
|
| 19 |
|
[1] |
Guard |
|
| 20 |
|
[1] |
Ball |
|
| 21 |
VOE14532653 |
[1] |
Valve |
|
| 22 |
VOE14528250 |
[1] |
O-ring |
SER NO 11974- SER NO 30136- |
| 23 |
VOE14534029 |
[4] |
O-ring |
SER NO 11974- SER NO 30136- |
| 24 |
VOE14560637 |
[3] |
Plug |
SER NO 11974- SER NO 30136- |
| 25 |
VOE14883837 |
[1] |
Plug |
SER NO 11974- SER NO 30136- |
| 26 |
SA8230-25880 |
[3] |
Hex. socket screw |
SER NO 11974- SER NO 30136- |
| 27 |
SA8230-32080 |
[1] |
Valve |
|
| 28 |
VOE990547 |
[1] |
O-ring |
SER NO 11974- SER NO 30136- |
| 29 |
VOE990738 |
[1] |
O-ring |
SER NO 11974- SER NO 30136- |
| 30 |
VOE990546 |
[1] |
O-ring |
SER NO 11974- SER NO 30136- |
| 31 |
SA8230-09100 |
[1] |
Main shaft |
|
| 32 |
SA8230-21920 |
[2] |
Plate |
|
| 33 |
SA8230-08940 |
[2] |
Support |
|
| 34 |
SA8230-09350 |
[1] |
Flange connection |
|
| 35 |
SA8230-08930 |
[1] |
Body |
|
| 36 |
SA8230-08980 |
[1] |
Valve block |
|
| 37 |
SA8230-09690 |
[8] |
Hex. socket screw |
|
| 38 |
VOE13967630 |
[4] |
Allen Hd Screw |
|
| 39 |
VOE14883837 |
[3] |
Plug |
|
| 40 |
SA9415-11051 |
[4] |
Plug |
|
| 41 |
VOE14560637 |
[21] |
Plug |
|
| 42 |
SA8230-09790 |
[2] |
Pin |
|
| 43 |
SA8230-09320 |
[1] |
Pin |
|
| 44 |
|
[1] |
Pin |
|
| 45 |
SA8230-09250 |
[2] |
Piston |
|
| 46 |
SA8230-09640 |
[2] |
Plug |
|
| 47 |
SA8230-09650 |
[2] |
Plate |
|
| 48 |
VOE14534044 |
[2] |
O-ring |
|
| 49 |
VOE14535450 |
[1] |
O-ring |
|
| 50 |
VOE14535451 |
[4] |
O-ring |
|
| 51 |
VOE14533604 |
[16] |
O-ring |
|
| 52 |
VOE14534029 |
[8] |
O-ring |
|
| 53 |
VOE14533612 |
[4] |
O-ring |
|
| 54 |
VOE14534028 |
[2] |
O-ring |
|
| 55 |
VOE14535452 |
[1] |
Seal |
|
| 56 |
VOE14625246 |
[2] |
Ring |
|
| 57 |
SA9566-20350 |
[2] |
Back-up ring |
|
| 58 |
SA8230-25620 |
[2] |
Nut |
|
| 59 |
VOE979022 |
[2] |
Hexagon nut |
|
| 60 |
SA8230-25980 |
[2] |
Ring |
|
| 61 |
SA8230-26430 |
[2] |
Plate |
|
| 62 |
SA7223-00660 |
[4] |
Spring pin |
|
| 63 |
VOE14623509 |
[2] |
Eye bolt |
|
| 64 |
SA8230-26780 |
[2] |
Bolt |
|
| 65 |
SA8230-09700 |
[2] |
Bolt |
|
| 66 |
SA8230-09070 |
[1] |
Shaft |
|
| 67 |
SA8230-09660 |
[1] |
Coupling |
|
| 68 |
VOE14535425 |
[2] |
Bearing |
SER NO 10001-11973 SER NO 30001-30135 |
| |
VOE14535425 |
[2] |
Bearing |
SER NO 11974- SER NO 30136- |
| 69 |
SA8230-26700 |
[2] |
Needle bearing |
SER NO 10001-11973 SER NO 30001-30135 |
| |
VOE14535447 |
[2] |
Bearing |
SER NO 11974- SER NO 30136- |
| 70 |
SA8230-14530 |
[4] |
Spacer |
|
| 71 |
SA8230-09370 |
[2] |
Plate |
|
| 72 |
VOE14535448 |
[2] |
Bushing |
|
| 73 |
SA8230-09710 |
[18] |
Spring |
|
| 100 |
SA8148-13080 |
[1] |
Sealing kit |
SER NO 10001-11973 SER NO 30001-30135 |
| |
VOE14555298 |
[1] |
Sealing kit |
SER NO 11974- SER NO 30136- |
