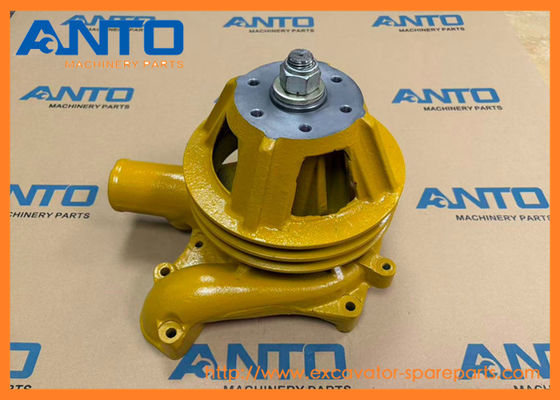

- 6222-61-1500 6222611500 Water Pump KOMATSU Wheel Loader Spare Parts For S6D108-1F-6
| Name |
Water Pump |
| Parts No |
6222-61-1500 6222611500 |
| Engine Model |
S6D108-1F-6 |
| Category |
KOMATSU Spare Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
1.Coolant Circulation: As the engine runs, the pump’s impeller (driven by the engine’s crankshaft via belt or gear) spins, creating centrifugal force. This force draws coolant from the radiator into the pump inlet and pushes it through the engine block and cylinder head.
2.Heat Transfer: Coolant absorbs heat from combustion chambers, cylinder walls, and other hot components. The pump then pushes the heated coolant back to the radiator, where heat is dissipated into the air.
3.Pressure Maintenance: Maintains optimal pressure (0.15–0.25 MPa) to ensure coolant reaches all engine areas, including tight passages in the cylinder head—critical for preventing hotspots that could cause engine damage.
- More other water pump parts fit for KOMATSU machine
| DUMMY-KIP2671 WATER MANIFOLD A. |
| 6D115 |
| |
| 6742-61-1100 WATER PUMP ASSEMBLY |
| D61EX, D61PX, SA6D114E |
| |
| 6251-61-1100 WATER PUMP ASS'Y |
| SAA6D125E, WA470, WA480 |
| |
| 6136-61-1510 WATER PUMP ASS'Y |
| S6D105 |
| |
| 6710-61-1301 WATER PUMP ASS'Y |
| NTA |
| |
| 6675-61-1021 WATER PUMP ASS'Y |
| NH |
| |
| 600-311-9340 WATER SEPARATOR A. |
| D65EX, D85EX, D85PX, HM300, PC400, PC450, SAA6D125E |
| |
| 6710-61-1300 WATER PUMP ASS'Y |
| NTA |
| |
| 6742-01-5116 WATER PUMP ASS'Y |
| SA6D114E, WA320, WA420 |
| |
| 6736-61-1202 WATER PUMP K |
| KOMATSU |
| |
| CU3009969 WATER PUMP ASS'Y,(WITH TENSION PULLEY) |
| VT, VTA |
| |
| CU3011723 WATER PUMP ASS'Y |
| VT, VTA |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
6222-61-1500 |
[1] |
WATER PUMP ASS'Y Komatsu OEM |
26 kg. |
| |
|
|
["SN: 22802-UP"] |$1. |
|
| 2. |
07062-00000 |
[1] |
VALVE Komatsu |
0.013 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 3. |
6138-61-1330 |
[1] |
IMPELLER Komatsu |
0.82 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 4. |
6150-61-1520 |
[1] |
SEAL, WATER Komatsu China |
0.03 kg. |
| |
|
|
["SN: 22802-UP", "KIT-FLAG: S"] analogs:["6211611530", "6211611521", "6211611520", "6211611532", "6211611533"] |
|
| 5. |
6138-61-1320 |
[1] |
SHAFT Komatsu |
1.21 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 6. |
6138-61-1220 |
[1] |
SPACER Komatsu China |
|
| |
|
|
["SN: 22802-UP"] |
|
| 7. |
06007-06007 |
[1] |
BEARING,BALL Komatsu |
0.151 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 8. |
06030-05207 |
[1] |
BEARING,BALL Komatsu |
0.207 kg. |
| |
|
|
["SN: 22802-UP"] analogs:["R0603005207"] |
|
| 9. |
6138-61-1120 |
[1] |
COVER Komatsu |
0.386 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 10. |
6138-61-1130 |
[1] |
RING,SNAP Komatsu China |
|
| |
|
|
["SN: 22802-UP"] |
|
| 11. |
07000-05160 |
[1] |
O-RING (K2) Komatsu OEM |
0.017 kg. |
| |
|
|
["SN: 22802-UP", "KIT-FLAG: S"] analogs:["0700015160"] |
|
| 12. |
6162-63-1440 |
[1] |
RING,SNAP Komatsu |
0.02 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 13. |
01598-02223 |
[1] |
NUT Komatsu China |
|
| |
|
|
["SN: 22802-UP"] analogs:["0155502223"] |
|
| 14. |
01643-32260 |
[1] |
WASHER Komatsu China |
0.042 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 15. |
6131-62-1340 |
[1] |
SEAL,OIL Komatsu |
0.04 kg. |
| |
|
|
["SN: 22802-UP", "KIT-FLAG: S"] |
|
| 16. |
6134-61-1390 |
[1] |
SLEEVE Komatsu |
0.037 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 17. |
6222-61-1520 |
[1] |
PULLEY,HARDENING Komatsu China |
|
| |
|
|
["SN: 22802-UP"] |
|
| 18 |
6136-61-1820 |
[1] |
GASKET (K2) Komatsu |
0.02 kg. |
| |
|
|
["SN: 22802-UP", "KIT-FLAG: S"] analogs:["6136611811"] |
|
| 19 |
01435-01045 |
[1] |
BOLT Komatsu |
0.035 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 20 |
01435-01055 |
[3] |
BOLT Komatsu |
0.04 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 21 |
6136-61-1210 |
[1] |
BRACKET Komatsu China |
|
| |
|
|
["SN: 22802-UP"] |
|
| 22 |
6112-23-6971 |
[1] |
SPACER Komatsu |
0.125 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 23 |
01435-00816 |
[1] |
BOLT Komatsu |
0.013 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 24 |
01435-01075 |
[1] |
BOLT Komatsu |
0.049 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 25 |
6138-61-6120 |
[1] |
HOSE Komatsu |
0.11 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 26 |
6221-61-6110 |
[1] |
NIPPLE Komatsu China |
|
| |
|
|
["SN: 22802-UP"] |
|
| 27 |
07281-00549 |
[2] |
CLAMP Komatsu |
0.041 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 28 |
6221-11-6540 |
[1] |
HOUSING,THERMOSTAT Komatsu China |
|
| |
|
|
["SN: 22802-UP"] |
|
| 29 |
6221-11-6820 |
[1] |
GASKET Komatsu China |
|
| |
|
|
["SN: 22802-UP", "KIT-FLAG: S"] analogs:["6221116890"] |
|
| 31 |
01435-01060 |
[1] |
BOLT Komatsu |
0.042 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 32 |
7861-92-3320 |
[1] |
SENSOR,WATER TEMPERATURE Komatsu OEM |
0.076 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 33 |
08053-01512 |
[1] |
CLIP Komatsu |
0.02 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 34 |
01641-20812 |
[1] |
WASHER Komatsu |
0.005 kg. |
| |
|
|
["SN: 22802-UP"] analogs:["YM22117080000"] |
|
| 35 |
07043-A0415 |
[1] |
PLUG Komatsu |
0.032 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 36 |
07043-A0312 |
[1] |
PLUG Komatsu China |
|
| |
|
|
["SN: 22802-UP"] |
|
| 37 |
600-421-6310 |
[1] |
THERMOSTAT Komatsu |
0.3 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 38 |
6138-11-6810 |
[1] |
GASKET Komatsu OEM |
0.01 kg. |
| |
|
|
["SN: 22802-UP", "KIT-FLAG: S"] |
|
| 39 |
6221-11-6520 |
[1] |
CONNECTOR Komatsu |
1 kg. |
| |
|
|
["SN: 22802-UP"] |
|
| 40 |
01435-20825 |
[2] |
BOLT Komatsu |
0.016 kg. |
| |
|
|
["SN: 22802-UP"] analogs:["0143500825"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
