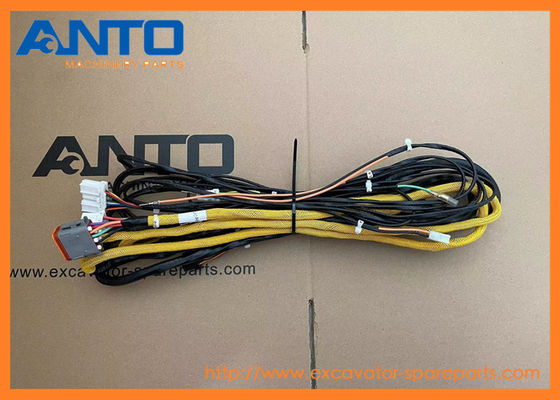

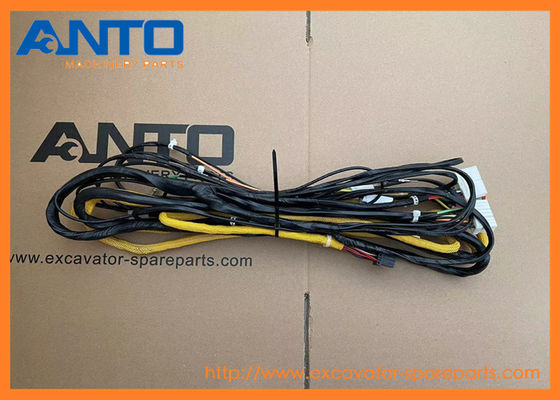

21N600012 21N6-00012 Harness Excavator Electric Parts Fitting For HYUNDAI R110-7 R140LC-7

• 21N600012 21N6-00012 Harness Excavator Electric Parts Fitting For HYUNDAI R110-7 R140LC-7

• Specification

• Function

1.Power Distribution
This harness channels electrical power from the vehicle's battery and generator to various components within the cab, including the instrument cluster, lighting systems (interior lights, work lights), air conditioning, and heating units. It ensures a stable and regulated supply, preventing electrical overloads that could damage sensitive electronics.

2.Signal Transmission
It serves as the communication pathway for electronic signals between control modules and operator controls. For example, signals from the joystick controls, throttle pedals, and safety switches are transmitted through the harness to the machine's main control unit. In return, feedback signals from the engine, hydraulic system, and other sensors are sent back to the cab display, providing real-time status information to the operator.

• Application

• More harness parts Applied To HYUNDAI machine

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
1	21N6-00012	[1]	HARNESS-CAB
1	21N6-00013	[1]	HARNESS-CAB
2	21EH-0011	[1]	LAMP-ROOM
2	21N6-01600	[1]	ROOM LAMP ASS`Y(24V)
3	21N6-10400	[2]	SPEAKER
4	E123-3022	[1]	SWITCH-DOOR
5	21N6-00311	[1]	NOZZLE
6	21M5-50250	[1]	SWITCH ASSY	WIPER CUT SW
7	21N6-00301	[1]	BRACKET WA
8	21N6-10410	[1]	ANTENA
8	21N4-02840	[1]	ANTENNA
9	21N6-00210	[1]	WIPER MOTOR KIT ASSY
9	21N6-01210	[1]	WIPER MOTOR KIT ASSY
9-1.	21N6-00220	[1]	ARM-WIPER
9-1.	21N6-01220	[1]	ARM-WIPER
9-1.	21N6-01221	[1]	ARM-WIPER
9-11.	21N6-01290	[1]	CAM-MOTOR
9-2.	21N6-00230	[1]	BLADE-WIPER
9-2.	21N6-01230	[1]	BLADE-WIPER
9-3.	21N6-00240	[1]	MOTOR-WIPER
9-3.	21N6-01280	[1]	MOTOR-WIPER
9-3.	21N6-01281	[1]	MOTOR-WIPER
9-4.	21N6-00250	[1]	BRACKET-PARKING
9-4.	21N6-01250	[1]	BRACKET-PARKING
9-5.	21N8-21060	[1]	CONTROLLER
9-5.	21N6-01270	[1]	CONTROLLER-W/MOTOR
9-5.	21N6-01272	[1]	CONTROLLER-W/MOTOR
N9-6.	@	[1]	BRACKET & LINK ASSY
9-6.	21N6-01260	[1]	BRACKET & LINK ASSY
9-61.	21N6-01300	[1]	CAM BASE-W/MOTOR
10	S411-050006	[11]	WASHER-SPRING
11	S015-080166	[3]	BOLT-HEX
12	S411-080006	[3]	WASHER-SPRING
13	21EM-10890	[1]	HOSE-WASHER TANK
14	E171-1185	[1]	PLATE-NOZZLE MTG
15	S161-050166	[11]	SCREW-CROSS R/ROUND
16	S161-060166	[2]	SCREW-CROSS R/ROUND
17	S403-062006	[2]	WASHER-PLAIN
18	S411-060006	[8]	WASHER-SPRING
19	S411-040006	[3]	WASHER-SPRING
20	S161-040106	[1]	SCREW-CROSS R/ROUND
21	S151-040166	[4]	SCREW-TAPPING
22	S151-050126	[8]	SCREW-TAPPING
23	21N6-10420	[2]	PLATE
24	21N6-10430	[2]	SEAL
25	21N6-10440	[2]	PLATE
26	S161-040166	[2]	SCREW-CROSS R/ROUND
27	S141-040106	[2]	SCREW-FLAT HD
28	21N6-00320	[1]	GROMMET
29	21N8-10090	[1]	HARNESS-WIPER
29	21N8-10091	[1]	HARNESS-WIPER
30	S890-107508	[1]	TUBE-PVC
31	S681-410400	[2]	GROMMET
32	S681-460400	[1]	GROMMET
33	21N4-22010	[1]	EXT HARNESS-USB
N.	@	[AR]	NOT SUPPLIED PARTS



• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
