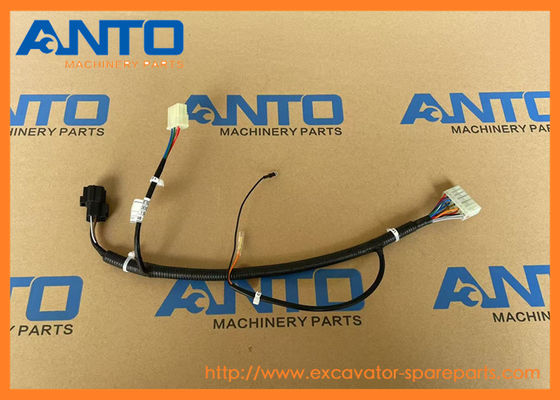

21N8-10092 21N810092 Harness Excavator Electric Parts Fitting For HYUNDAI R1200-9 R140LC9

• 21N8-10092 21N810092 Harness Excavator Electric Parts Fitting For HYUNDAI R1200-9 R140LC9

• Specification

• Function

1.Power Distribution: Transmits electrical power from the excavator's battery or power source to the left control box and connected devices, such as switches, relays, and solenoids, providing the necessary energy for operation.

2.Signal Transmission: Carries electrical signals between the control box and other parts of the machine, including sensors (e.g., position sensors, pressure sensors) and actuators (e.g., hydraulic control valves). This enables the operator to control functions like arm movement, bucket operation, and travel through the control box.

3.Data Communication: In modern excavators with electronic control units (ECUs), the harness may also facilitate data exchange, allowing the control box to receive and send information to the machine's central control system for coordinated operation and diagnostic purposes.

• Application

• More harness parts Applied To HYUNDAI machine

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
1	21K8-11201	[1]	HARNESS-CAB
1	21K8-11203	[1]	HARNESS-CAB
1	21K8-11203	[1]	HARNESS-CAB
1-1.	21Q6-15700	[1]	GROMMET
1-2.	21M8-01520	[3]	GROMMET-2 WIRE
2	21N6-30190	[2]	SPEAKER
3	E123-3022	[1]	SWITCH-DOOR
4	21M5-50250	[1]	SWITCH ASSY	WIPER CUT SW
5	21EM-30581	[1]	HOSE-RUBBER
6	21K8-11302	[1]	HARNESS-FRONT CAMERA
6	21K8-11301	[1]	HARNESS-FRONT CAMERA	OPT-AAVM
6	21K8-11302	[1]	HARNESS-FRONT CAMERA
7	21Q4-50101	[1]	LAMP-ROOM	LED
8	21N8-10092	[1]	HARNESS-WIPER
9	21K8-41700	[1]	WIPER MOTOR KIT ASSY
9-1.	21N6-01241	[1]	WIPER MOTOR ASSY
9-1.	21K8-41710	[1]	WIPER MOTOR ASSY
9-11.	21N6-01281	[1]	MOTOR-WIPER
9-11.	21K8-41720	[1]	MOTOR ASSY
9-12.	21N6-01260	[1]	BRACKET & LINK ASSY
9-12.	21K8-41730	[1]	BRACKET & LINK ASSY
9-2.	21Q6-01200	[1]	ARM & BLADE ASSY
9-2.	21K8-41740	[1]	ARM ASSY
9-21.	21Q6-01210	[1]	HOSE-WIPER
9-21.	21K8-41780	[1]	HOSE
9-22.	21Q6-01220	[1]	ARM-WIPER
9-23.	21Q6-01230	[1]	BLADE-WIPER
9-24.	21Q6-01240	[1]	NOZZLE-WIPER
9-41.	21N6-01300	[1]	CAM BASE-W/MOTOR
9-5.	21Q6-01300	[1]	BRACKET-WIPER
9-24.	21K8-41770	[1]	NOZZLE
9-25.	21Q6-01250	[1]	VALVE-WIPER
9-26.	21Q6-01260	[4]	CLIP-WIPER
9-3.	21K8-41750	[1]	BLADE ASSY
9-4.	21N6-01273	[1]	CONTROLLER-W/MOTOR
9-41.	21N6-01300	[1]	CAM BASE-W/MOTOR	NOT SHOWN
9-4.	21K8-41810	[1]	CONTROLLER-W/MOTOR
9-5.	21Q6-01301	[1]	BRACKET-WIPER
9-5.	21K8-41760	[1]	BRACKET-PARKING GUIDE
9-6.	21K8-41790	[1]	VALVE ASSY
10	21Q6-21510	[1]	PLATE-NOZZLE
11	24L3-41500	[1]	VALVE-WIPER
12	21K8-41300	[1]	ANTENNA-FM/AM
12	71KD-00970	[1]	BRACKET-RMS
13	21Q6-21600	[1]	PAD-RUBBER
14	S151-060166	[4]	SCREW-TAPPING
15	21K6-11500	[1]	HARNESS-RMS ANTENNA	OPTION
15	21K6-11501	[1]	HARNESS-RMS ANTENNA	OPTION
16	S035-081526	[3]	BOLT-W/WASHER
17	S411-040006	[1]	WASHER-SPRING
18	S131-041026	[1]	SCREW-W/WASHER
19	S890-107508	[1]	TUBE-PVC
20	S131-051546	[11]	SCREW-W/WASHER
21	S035-082026	[2]	BOLT-W/WASHER
18	S131-041026	[1]	SCREW-W/WASHER
19	S890-107508	[1]	TUBE-PVC
20	S131-051546	[11]	SCREW-W/WASHER
21	S035-082026	[2]	BOLT-W/WASHER



• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
