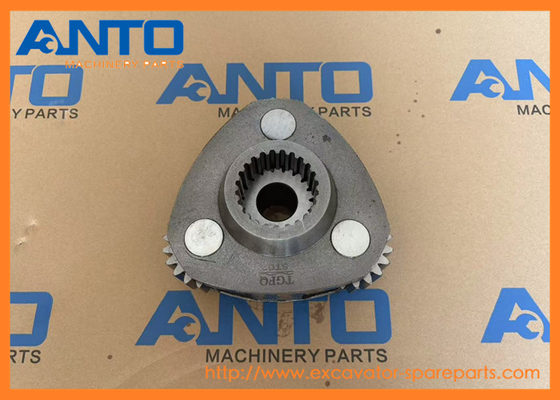

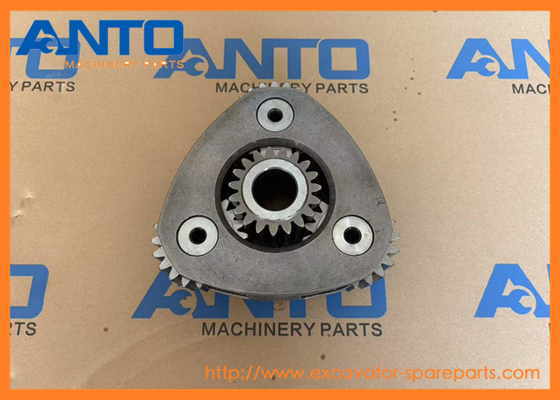

- 353-0536 3530536 Planetary Carrier Excavator Spare Parts For C3.4B C4.2 C4.4 314C 315D L 316E L
| Name |
Planetary Carrier |
| Parts No |
353-0536 3530536 |
| Machine Model |
311C 312C 312E L 313D 313D2 314C 315D L 316E L 318D L |
| Category |
Swing Drive |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
1.Supporting Planetary Gears: As an important part of the planetary gear system, the Caterpillar 353 - 0536 planetary carrier is used to support planetary gears. It allows the planetary gears to not only rotate around their own axes (自转) but also revolve around the sun gear (公转), ensuring the normal operation of the planetary gear system.
2.Power Transmission and Speed Change: The planetary carrier is involved in the power transmission process of the planetary gear system. By interacting with the sun gear and the ring gear, it can realize different gear ratios, thereby achieving speed change and torque conversion. This enables construction machinery to have suitable driving speeds and output torques under different working conditions.
3.Evenly Distributing Load: It can evenly distribute the power transmitted from the drive motor to each planetary gear, avoiding uneven load on a single gear, reducing gear wear, and improving the overall service life and reliability of the transmission system.
EXCAVATOR 311C 311D LRR 311F LRR 312C L 312D 312D L 312D2 312D2 GC 312D2 L 312E 312E L 313D 313D2 313D2 LGP 314C 314D CR 314D LCR 314E CR 314E LCR 315D L 316E L 318D L 318D2 L C.ater.pillar.
- More other carrier parts fit for C A T machine
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 1912599 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L |
| |
| 1912607 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR |
| |
| 3530536 CARRIER-PLANETARY |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR |
| |
| 1655795 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| |
| 1655796 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| |
| 1994624 CARRIER-PLANETARY |
| 315C, 315D L, 318D L |
| |
| 1655863 CARRIER |
| 311C |
| |
| 3079371 CARRIER |
| 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D LCR |
| |
| 3327484 CARRIER |
| 311D LRR, 311F LRR, 312C, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 314D CR, 314D LCR, 314E CR, 314E LCR |
| |
| 3333053 CARRIER |
| 315D L, 316E L, 318D L, 318D2 L |
| |
| 1912607 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR |
| |
| 1912599 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L |
| |
| 1912627 CARRIER-PLANETARY |
| 312C, 312C L, 314C |
| |
| 1719443 CARRIER |
| 307C, 307D, 308C, 308D, 308E |
| |
| 1719439 CARRIER |
| 307C, 307D, 308C, 308D, 308E |
| |
| 3074161 CARRIER |
| 307C, 307D, 308C, 308D, 308E, 308E CR, 308E SR |
| |
| 2307020 CARRIER AS |
| 304, 305 |
| |
| 8U9510 CARRIER-PLANETARY |
| M318C |
| |
| 1994624 CARRIER-PLANETARY |
| 315C, 315D L, 318D L |
| |
| 1655796 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| |
| 1655795 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
093-6089 |
[2] |
DOWEL |
|
| 2 |
191-2602 |
[6] |
WASHER (32X56X1.2-MM THK) |
|
| 3 |
191-2605 |
[1] |
WASHER (30X75X3-MM THK) |
|
| 4 |
191-2608 |
[3] |
GEAR-PLANETARY |
|
| 5 |
191-2609 |
[3] |
SHAFT-PLANETARY |
|
| 6 |
191-2610 |
[3] |
PIN-SPRING |
|
| 7 |
191-2611 |
[1] |
GEAR-SUN |
|
| 8 |
191-2613 |
[1] |
GEAR-RING |
|
| 9 |
199-4627 |
[6] |
WASHER |
|
| 10 |
333-3048 |
[1] |
CARRIER |
|
| 11 |
333-3049 |
[3] |
GEAR-PLANETARY |
|
| 12 |
333-3050 |
[3] |
BEARING |
|
| 13 |
333-3051 |
[3] |
SHAFT |
|
| 14 |
095-0879 |
[3] |
PIN-SPRING |
|
| 15 |
333-3058 |
[3] |
WASHER-THRUST (30X47X2-MM THK) |
|
| 16 |
333-3059 |
[3] |
RING-RETAINING |
|
| 17 |
7X-2619 M |
[6] |
BOLT (M6X1X10-MM) |
|
| 18 |
353-0534 |
[1] |
BEARING |
|
| 19 |
466-5323 |
[1] |
BEARING |
|
| 20 |
353-0536 |
[1] |
CARRIER-PLANETARY |
|
| 21 |
353-0537 |
[6] |
BEARING |
|
| 22 |
353-0538 |
[1] |
GEAR-SUN |
|
| 23 |
353-0539 |
[1] |
SHAFT-PINION |
|
| 24 |
353-0540 |
[1] |
HOUSING |
|
| 25 |
353-0541 |
[1] |
SEAL-LIP TYPE |
|
| 26 |
353-0542 |
[1] |
SEAL |
|
| 27 |
353-0543 |
[2] |
PLATE |
|
| 28 |
095-0929 |
[1] |
RING-RETAINING |
|
| |
M |
|
METRIC PART |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
