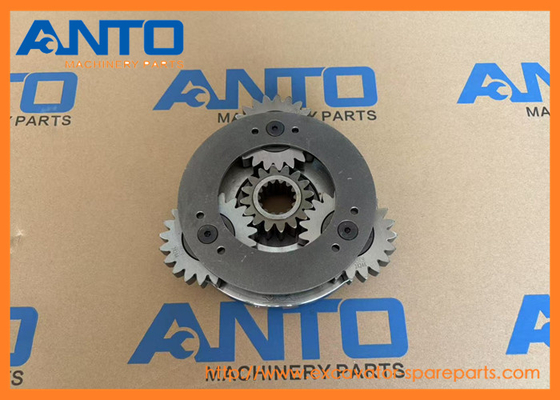

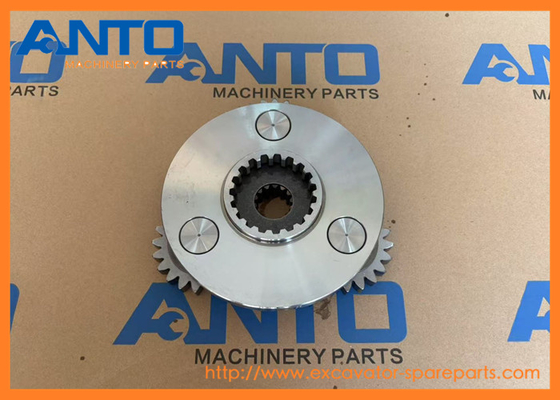

- 333-3048 3333048 Carrier Excavator Spare Parts For C3.4B C4.2 C4.4 314C 315D L 316E L
| Name |
Carrier |
| Parts No |
333-3048 3333048 |
| Machine Model |
311C 312C 312E L 313D 313D2 314C 315D L 316E L 318D L |
| Category |
Swing Drive |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
1.Support and Positioning: In the mechanical system, the carrier is mainly used to support and position other components, ensuring their correct relative position and axis alignment, which is crucial for the smooth operation of the entire mechanical system. For example, in the engine, it can support moving parts such as gears and camshafts to ensure their stable operation. In the excavator's working device, it can support components such as hydraulic cylinders and connecting rods to ensure the accuracy and stability of the working device's movement.
2.Transmission of Force and Motion: It may also be involved in the transmission of force and motion, transmitting the power from the engine or other power sources to the relevant working components. For instance, it can transmit the rotational force of the engine to the excavator's traveling system or working device, enabling the excavator to perform actions such as traveling and digging.
EXCAVATOR 311C 311D LRR 311F LRR 312C L 312D 312D L 312D2 312D2 GC 312D2 L 312E 312E L 313D 313D2 313D2 LGP 314C 314D CR 314D LCR 314E CR 314E LCR 315D L 316E L 318D L 318D2 L C.ater.pillar.
- More other carrier parts fit for C A T machine
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 1912599 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L |
| |
| 1912607 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR |
| |
| 3530536 CARRIER-PLANETARY |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR |
| |
| 1655795 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| |
| 1655796 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| |
| 1994624 CARRIER-PLANETARY |
| 315C, 315D L, 318D L |
| |
| 1655863 CARRIER |
| 311C |
| |
| 3079371 CARRIER |
| 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D LCR |
| |
| 3327484 CARRIER |
| 311D LRR, 311F LRR, 312C, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 314D CR, 314D LCR, 314E CR, 314E LCR |
| |
| 3333053 CARRIER |
| 315D L, 316E L, 318D L, 318D2 L |
| |
| 1912607 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR |
| |
| 1912599 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L |
| |
| 1912627 CARRIER-PLANETARY |
| 312C, 312C L, 314C |
| |
| 1719443 CARRIER |
| 307C, 307D, 308C, 308D, 308E |
| |
| 1719439 CARRIER |
| 307C, 307D, 308C, 308D, 308E |
| |
| 3074161 CARRIER |
| 307C, 307D, 308C, 308D, 308E, 308E CR, 308E SR |
| |
| 2307020 CARRIER AS |
| 304, 305 |
| |
| 8U9510 CARRIER-PLANETARY |
| M318C |
| |
| 1994624 CARRIER-PLANETARY |
| 315C, 315D L, 318D L |
| |
| 1655796 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| |
| 1655795 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
093-6089 |
[2] |
DOWEL |
|
| 2 |
191-2602 |
[6] |
WASHER (32X56X1.2-MM THK) |
|
| 3 |
191-2605 |
[1] |
WASHER (30X75X3-MM THK) |
|
| 4 |
191-2608 |
[3] |
GEAR-PLANETARY |
|
| 5 |
191-2609 |
[3] |
SHAFT-PLANETARY |
|
| 6 |
191-2610 |
[3] |
PIN-SPRING |
|
| 7 |
191-2611 |
[1] |
GEAR-SUN |
|
| 8 |
191-2613 |
[1] |
GEAR-RING |
|
| 9 |
199-4627 |
[6] |
WASHER |
|
| 10 |
333-3048 |
[1] |
CARRIER |
|
| 11 |
333-3049 |
[3] |
GEAR-PLANETARY |
|
| 12 |
333-3050 |
[3] |
BEARING |
|
| 13 |
333-3051 |
[3] |
SHAFT |
|
| 14 |
095-0879 |
[3] |
PIN-SPRING |
|
| 15 |
333-3058 |
[3] |
WASHER-THRUST (30X47X2-MM THK) |
|
| 16 |
333-3059 |
[3] |
RING-RETAINING |
|
| 17 |
7X-2619 M |
[6] |
BOLT (M6X1X10-MM) |
|
| 18 |
353-0534 |
[1] |
BEARING |
|
| 19 |
466-5323 |
[1] |
BEARING |
|
| 20 |
353-0536 |
[1] |
CARRIER-PLANETARY |
|
| 21 |
353-0537 |
[6] |
BEARING |
|
| 22 |
353-0538 |
[1] |
GEAR-SUN |
|
| 23 |
353-0539 |
[1] |
SHAFT-PINION |
|
| 24 |
353-0540 |
[1] |
HOUSING |
|
| 25 |
353-0541 |
[1] |
SEAL-LIP TYPE |
|
| 26 |
353-0542 |
[1] |
SEAL |
|
| 27 |
353-0543 |
[2] |
PLATE |
|
| 28 |
095-0929 |
[1] |
RING-RETAINING |
|
| |
M |
|
METRIC PART |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
