| Application |
C A T Excavator Electric Parts |
| Name |

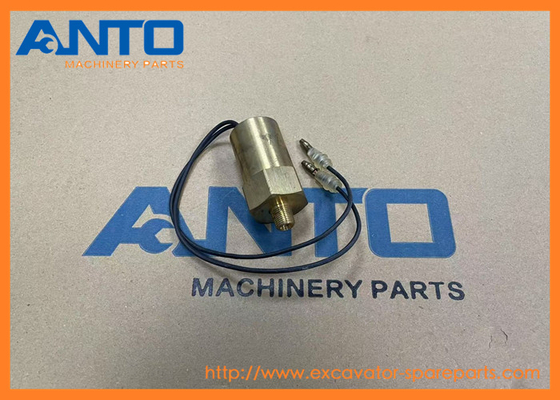

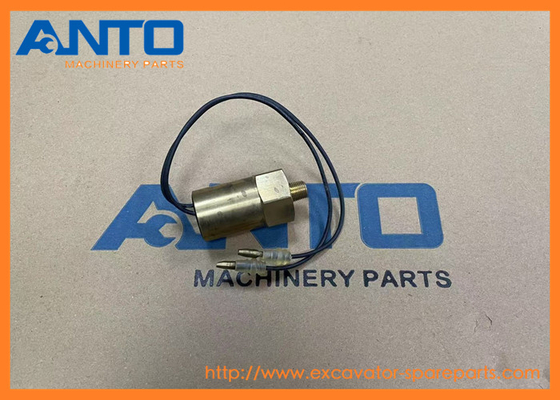

Pressure switch |
| Parts No |
266-6210 2666210 |
| Model |
311C 312 312C 312C L 314C 318B 318C 319C 320B 320C 320C FM 320C L 320D 320D LRR 321C 323D L 323D LN
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
1.System Protection: The pressure switch can ensure proper pressure regulation for smooth operation and prevent system overloads or failures. When the pressure exceeds or falls below the set range, it will take corresponding actions to protect the safety of the system and other components and avoid damage caused by excessive pressure or insufficient pressure.
2.Providing Feedback Signals: It can provide accurate feedback to the control system. The state change of the pressure switch (on or off) can be used as a signal to be transmitted to the control system, so that the control system can understand the current pressure status of the system and make corresponding control decisions.
EXCAVATOR 311C 312 312C 312C L 314C 318B 318C 319C 320B 320C 320C FM 320C L 320D 320D LRR 321C 323D L 323D LN
- More switch parts supplied to C A T machine
| 1262938 SWITCH AS |
| 311, 312, 315, 317, 320 L, 320N, 322, 322 FM L, 322 LN, 325, 330, 330 L |
| |
| 5I8005 SWITCH-PRESSURE |
| 311, 311B, 312, 312B, 312B L, 312C, 315, 315B, 315B L, 315C, 317B LN, 318B, 320, 320 L, 320B, 320C, 321B |
| |
| 1060179 SWITCH AS-PRESSURE |
| 115, 303, 307B, 307C, 308C, 311B, 312B, 312B L, 313B, 315B, 315B FM L, 315B L, 317B LN, 318B, 320B, 320B FM LL, 320B L, 320B U, 322B, 322B L, 322B LN, 325B, 325B L, 330B, 330B L, 345B, 345B II, 345B I... |
| |
| 1060180 SWITCH AS-PRESSURE |
| 311B, 312B, 312B L, 315B, 315B FM L, 315B L, 317B LN, 318B, 320B, 320B FM LL, 320B U, 321B, 322B, 322B L, 322B LN, 325B, 325B L, 330B, 330B L, 345B, 345B II, 345B II MH, 345B L, M325B, W330B, W345B II |
| |
| 1060181 SWITCH AS-PRESSURE |
| 311B, 312B, 312B L, 315B, 315B L, 317B LN, 318B, 320B, 320B L, 320B U, 320C, 320D L, 321B, 322B, 325B, 330B, 345B II, 345B L |
| |
| 1300270 SWITCH AS-PRESSURE |
| 307D, 311B, 311D LRR, 311F LRR, 312B, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 314E CR, 314E LCR, 315C, 315D L, 318B, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 32... |
| |
| 2833074 SWITCH AS-TOGGLE |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2 L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, ... |
| |
| 1636711 SWITCH AS-TOGGLE |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2 L, 313D, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, ... |
| |
| 1673466 SWITCH AS-PRESSURE |
| 311C, 312C, 312C L, 312D, 314C, 315C, 315D L, 318C, 319C, 319D, 320C, 320C FM, 320C L, 320D, 320D L, 320D LRR, 321C, 321D LCR, 322C, 322C FM, 323D L, 323D LN, 324D, 324D FM, 324D L, 324D LN, 325C, 325... |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
212-8566 Y |
[1] |
CYLINDER BLOCK GP |
|
| 24 |
096-2501 |
[3] |
LOCKWASHER |
|
| 25 |
8T-4179 M |
[3] |
BOLT (M12X1.75X20-MM) |
|
| 26 |
5I-7588 |
[7] |
SET-BEARING (STANDARD)(STANDARD) |
|
| |
5I-7784 B |
[7] |
SET-BEARING (0.25-MM US)(US=0.25MM ID) |
|
| |
5I-7785 B |
[7] |
SET-BEARING (0.5-MM US)(US=0.50MM ID) |
|
| |
5I-7786 B |
[7] |
SET-BEARING (0.75-MM US)(US=0.75MM ID) |
|
| 27 |
5I-7654 |
[3] |
PLATE (STANDARD)(STANDARD) |
|
| |
5I-7787 B |
[3] |
PLATE (0.15-MM OS)(OS=0.15MM) |
|
| |
5I-7788 B |
[3] |
PLATE (0.3-MM OS)(OS=0.30MM) |
|
| |
5I-7789 B |
[3] |
PLATE (0.45-MM OS)(OS=0.45MM) |
|
| 28 |
266-6210 |
[1] |
SWITCH-PRESSURE (ENGINE OIL PRESSURE) |
|
| 29 |
4D-7794 |
[1] |
CLIP |
|
| 30 |
7X-2536 M |
[1] |
BOLT (M8X1.25X14-MM) |
|
| 31 |
3B-4505 |
[1] |
LOCKWASHER |
|
| 32 |
5I-7636 |
[1] |
EYE |
|
| 33 |
5I-7603 |
[1] |
EYE |
|
| 34 |
5I-7978 |
[1] |
SLEEVE |
|
| |
B |
|
USE AS REQUIRED |
| |
M |
|
METRIC PART |
| |
Y |
|
SEPARATE ILLUSTRATION |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
