| Application |
C A T Excavator Hydraulic Pump |
| Name |

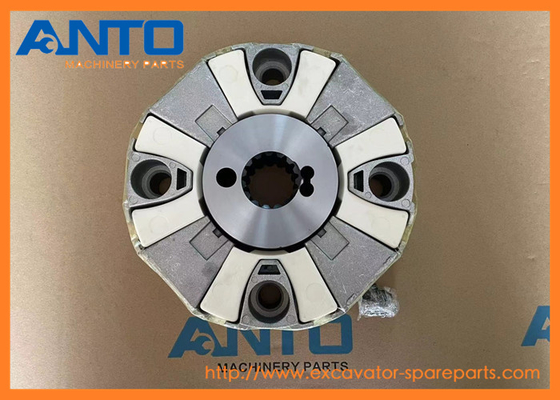

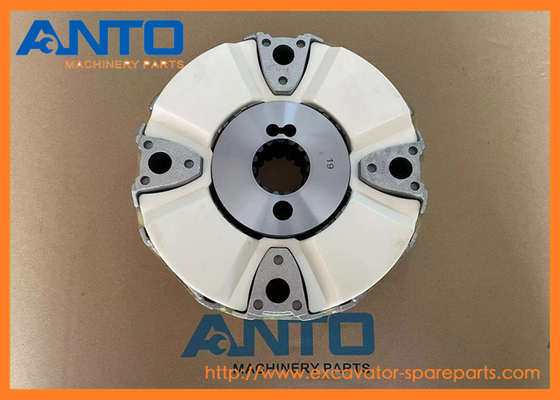

Flexible coupling |
| Parts No |
2870169 287-0169 |
| Model |
330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
1.Power Transmission: It is used to connect two rotating shafts, such as the engine's power shaft and the hydraulic pump shaft or the transmission shaft. The flexible coupling can transmit the power generated by the engine to other driven components, enabling the normal operation of the equipment.
2.Compensating for Shaft Misalignment: In actual operation, due to factors such as equipment installation errors, component wear, and mechanical vibration, there may be angular, parallel, or axial misalignment between the two shafts.
3.Dampening Vibrations and Shock Loads: During the operation of the equipment, vibrations and shock loads are inevitable. The flexible coupling can absorb and dampen these vibrations and shock loads, reducing the impact on the equipment. This helps to protect the machinery and its components from excessive wear and damage, prolonging the service life of the equipment and improving its reliability and stability.
EXCAVATOR 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN
MOBILE HYD POWER UNIT 330D 330D L 336D L
WHEELED EXCAVATOR M330D
- More coupling parts supplied to C A T machine
| 8S7169 COUPLING |
| 10 FT, 10-20B, 215, 215D, 225, 225D, 227, 229, 229D, 231D, 235, 235C, 245, 245B, 24H, 3116, 325B L, 325C, 325D L, 330B L, 330C, 330D L, 336D L, 3406E, 345B II, 345B L, 345C L, 365B, 365B II, 365C, 365... |
| |
| 1807101 COUPLING |
| 320B FM LL, 320C FM, 325B L, 325C, 325C L, 325D MH, 330B L, 330C L, 330C MH, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C MH, 365B, 365B II, 365C L MH, M325B, M325C MH, M325D L MH, M325D MH,... |
| |
| 7Y1469 COUPLING |
| 330, 330 FM L, 330 L, 330C, 330D L, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG, 349E L VG, 349F L, 350, 365B, 36... |
| |
| 1912645 COUPLING |
| 325C, 328D LCR, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L |
| |
| 1807100 COUPLING-GENERATOR |
| 325C, 325D MH, 330B L, 330C L, 330C MH, 330D MH, 345B, 345B II MH, M325B, M325C MH, M325D L MH, M325D MH, MH3037, W330B, W345B II |
| |
| 1807121 COUPLING |
| 330B L, 345B, 345B II, 345B II MH, 345B L, 345C, 345C MH, 365B, 365B II, 365C L MH, M330D, MH3049, MH3059, W345B II, W345C MH |
| |
| 2409432 COUPLING AS |
| 325C, 325D L, 330C, 330D L, 345B II, 345C L, 365B II, 365C, 365C L, 385B, 385C L |
| |
| 2409433 COUPLING AS |
| 325C, 325D L, 330C, 330D L, 345B II, 345C L, 365B II, 365C, 365C L, 385B, 385C L |
| |
| 2409426 COUPLING AS |
| 325C, 325D L, 330C, 330D L, 345B II, 345C L, 365B II, 365C, 365C L, 385B, 385C L |
| |
| 2409428 COUPLING AS |
| 325C, 325D L, 330C, 330D L, 345B II, 345C L, 365B II, 365C, 365C L, 385B, 385C L |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
287-0169 Y |
[1] |
COUPLING GP-FLEXIBLE |
|
| 2 |
272-4650 |
[1] |
PLATE |
|
| 3 |
099-8111 |
[4] |
PIN-SPRING |
|
| 4 |
169-6064 M |
[4] |
BOLT-SOCKET HEAD (M20X2.5X55-MM) |
|
| 5 |
8T-4223 |
[12] |
WASHER-HARD (13.5X25.5X3-MM THK) |
|
| 6 |
8T-8920 |
[12] |
BOLT (1/2-13X3.25-IN) |
|
| |
M |
|
METRIC PART |
| |
Y |
|
SEPARATE ILLUSTRATION |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
