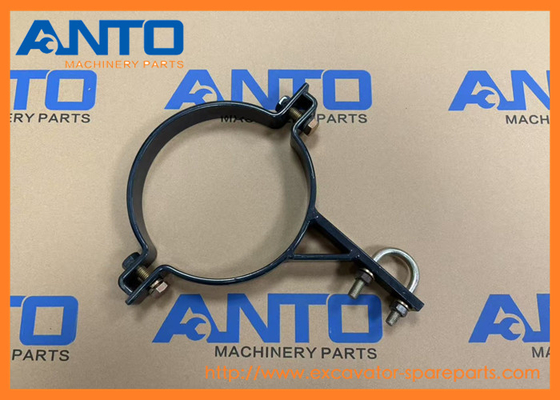

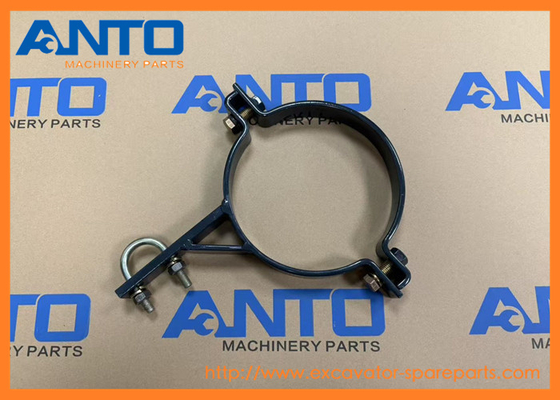

- 31Y1-30840 Band Assy HYUNDAI Excavator Spare Parts Fitting For R290LC7A R300LC7 R305LC7
| Name |
Band Assy |
| Parts No |
31Y1-30840 |
| Machine Model |
R290LC7A R300LC7 R305LC7 |
| Category |
Arm Cylinder |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
It can be inferred that the 31Y1 - 30840 may also be a similar fuel tank strap assembly or a band - type assembly for other components, which is used to fix or support relevant parts to ensure their stable operation and positioning during the vehicle's operation.
7-SERIES CRAWLER EXCAVATOR R290LC7A R300LC7 R305LC7
9-SERIES CRAWLER EXCAVATOR R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R520LC9 Hyundai
- More other band parts fit for HYUNDAI machine
| 31Y1-35410 BAND SUB ASSY |
| HX480L, HX520L, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| |
| 31Y1-26500 BAND ASSY-LH |
| R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S |
| |
| 31Y1-26510 BAND ASSY-RH |
| R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S |
| |
| 31Y1-26520 BAND SUB ASSY-LH |
| R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| |
| 31Y1-26530 BAND SUB ASSY-RH |
| R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| |
| 31Y1-26720 BAND ASSY |
| R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, R800LC-9, R800LC7A, RD510LC-7 |
| |
| 31Y1-26730 BAND SUB ASSY |
| HX480L, HX520L, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, R800LC-9, R800LC7A, RD510LC-7 |
| |
| 31Y1-26501 BAND ASSY-LH |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| |
| 31Y1-26511 BAND ASSY,RH |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| |
| 31Y1-30871 BAND ASSY |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| |
| 31Y1-30891 BAND ASSY |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| |
| 31Y1-26521 BAND SUB ASSY-LH |
| HX480L, HX520L, R480C9MH, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| |
| 31Y1-30830 BAND SUB ASSY |
| HX300L, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R520LC9 |
| |
| 31Y1-30820 BAND ASSY-R |
| R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R520LC9 |
| |
| 31Y1-15515 BAND SUB ASSY |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| |
| 31Y1-15505 BAND ASSY |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| |
| 31YC-31220 BAND |
| R290LC7, R290LC7H, R305LC7, R320LC7, R320LC7A |
| |
| 31Y1-15510 BAND SUB ASS'Y |
| R290LC7, R290LC7H, R305LC7 |
| |
| 31Y1-15500 BAND ASSY |
| R290LC7, R290LC7H, R305LC7 |
| |
| 31Y1-21935 BAND SUB ASSY |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| |
| 31Y1-21926 BAND ASSY-B |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| |
| 31Y1-21925 BAND ASSY-B |
| R290LC7, R290LC7A, R305LC7 |
| |
| 31Y1-15015 BAND ASSY-R |
| R290LC7, R290LC7A, R300LC7, R305LC7 |
| |
| 31Y1-21930 BAND SUB ASS'Y |
| R290LC7, R290LC7A, R290LC7H, R305LC7 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31N8-50139 |
[1] |
ARM CYLINDER ASSY |
|
| *-1. |
31Y1-34350 |
[1] |
ARM CYL SUB ASSY |
WITHOUT PIPE |
| 1 |
31Y1-34360 |
[1] |
TUBE ASSY |
|
| 2 |
31Y1-34380 |
[1] |
ROD ASSY |
|
| 3 |
31Y1-34130 |
[1] |
GLAND |
|
| 4 |
S732-110045 |
[1] |
BUSHING-DD2 |
|
| 5 |
Y191-117000 |
[1] |
RING-SNAP |
|
| K6. |
Y220-110013 |
[1] |
SEAL-ROD |
|
| K7. |
Y180-110020 |
[1] |
RING-BACK UP |
|
| K8. |
Y240-110012 |
[1] |
RING-BUFFER |
|
| K9. |
Y110-110011 |
[1] |
WIPER-DUST |
|
| 10 |
Y190-126000 |
[1] |
RING-SNAP |
|
| K11. |
31YC-99H70 |
[2] |
O-RING |
|
| K12. |
S641-140002 |
[1] |
RING-BACK UP |
|
| K13. |
31YC-BM140A |
[1] |
RING-BACK UP |
|
| 14 |
31YC-28010 |
[1] |
RING-CUSHION |
|
| 15 |
31Y1-34151 |
[1] |
PISTON |
|
| K16. |
Y420-150000 |
[1] |
SEAL-PISTON |
|
| K17. |
Y310-150003 |
[2] |
RING-WEAR |
|
| K18. |
Y440-150202 |
[2] |
RING-DUST |
|
| K19. |
S632-085004 |
[1] |
O-RING |
|
| K20. |
31YC-CG085 |
[2] |
RING-BACK UP |
|
| 21 |
31YC-68060 |
[1] |
NUT-LOCK |
|
| 22 |
S114-100164 |
[1] |
SCREW-SET |
|
| K23. |
S632-145004 |
[1] |
O-RING |
|
| 24 |
S109-180704 |
[15] |
BOLT-SOCKET |
|
| 25 |
31YC-11161 |
[2] |
BUSHING-PIN |
|
| K26. |
Y000-090000 |
[4] |
SEAL-DUST |
|
| K27. |
31YC-2A070 |
[1] |
VALVE-CHECK |
|
| 28 |
31YC-99071 |
[1] |
SPRING-COIL |
|
| K29. |
S631-014004 |
[1] |
O-RING |
|
| 30 |
P220-110103 |
[1] |
PLUG-HEX |
|
| 31 |
31Y1-30820 |
[1] |
BAND ASSY-R |
|
| 31-1. |
31Y1-30830 |
[1] |
BAND SUB ASSY |
|
| 31-2. |
31YC-31420 |
[1] |
BAND |
|
| 31-3. |
S015-120452 |
[2] |
BOLT-HEX |
|
| 31-4. |
S411-120002 |
[2] |
WASHER-SPRING |
|
| 31-5. |
31YC-37040 |
[1] |
CLAMP-PIPE |
|
| 31-6. |
S015-120452 |
[2] |
BOLT-HEX |
|
| 31-7. |
S411-120002 |
[2] |
WASHER-SPRING |
|
| 32 |
31Y1-30840 |
[1] |
BAND ASSY-B |
|
| 32-1. |
31Y1-30850 |
[1] |
BAND SUB ASSY |
|
| 32-2. |
31Y1-30860 |
[1] |
BAND SUB ASSY |
|
| 32-3. |
S015-120452 |
[2] |
BOLT-HEX |
|
| 32-4. |
S411-120002 |
[2] |
WASHER-SPRING |
|
| 32-5. |
S070-053442 |
[1] |
U-BOLT |
|
| 32-6. |
S205-101002 |
[2] |
NUT-HEX |
|
| 32-7. |
S411-100002 |
[2] |
WASHER-SPRING |
|
| 33 |
31Y1-30911 |
[1] |
PIPE ASSY-R |
|
| K34. |
Y171-024004 |
[1] |
O-RING |
|
| 35 |
S107-120554 |
[4] |
BOLT-SOCKET |
|
| K. |
31Y1-30111 |
[1] |
SEAL KIT |
STD, SEE ILLUST |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
